DB650-1-3-FA(22x105)-S-AP

订单号: 70116861

产品描述:
axial parallel Dot lasermodule, red, 650nm, 1mW, 3V DC, 22x105mm, class 2

• axial parallel
• with battery
• glas lenses anti reflex coated
• compact size
• Laser Class 2

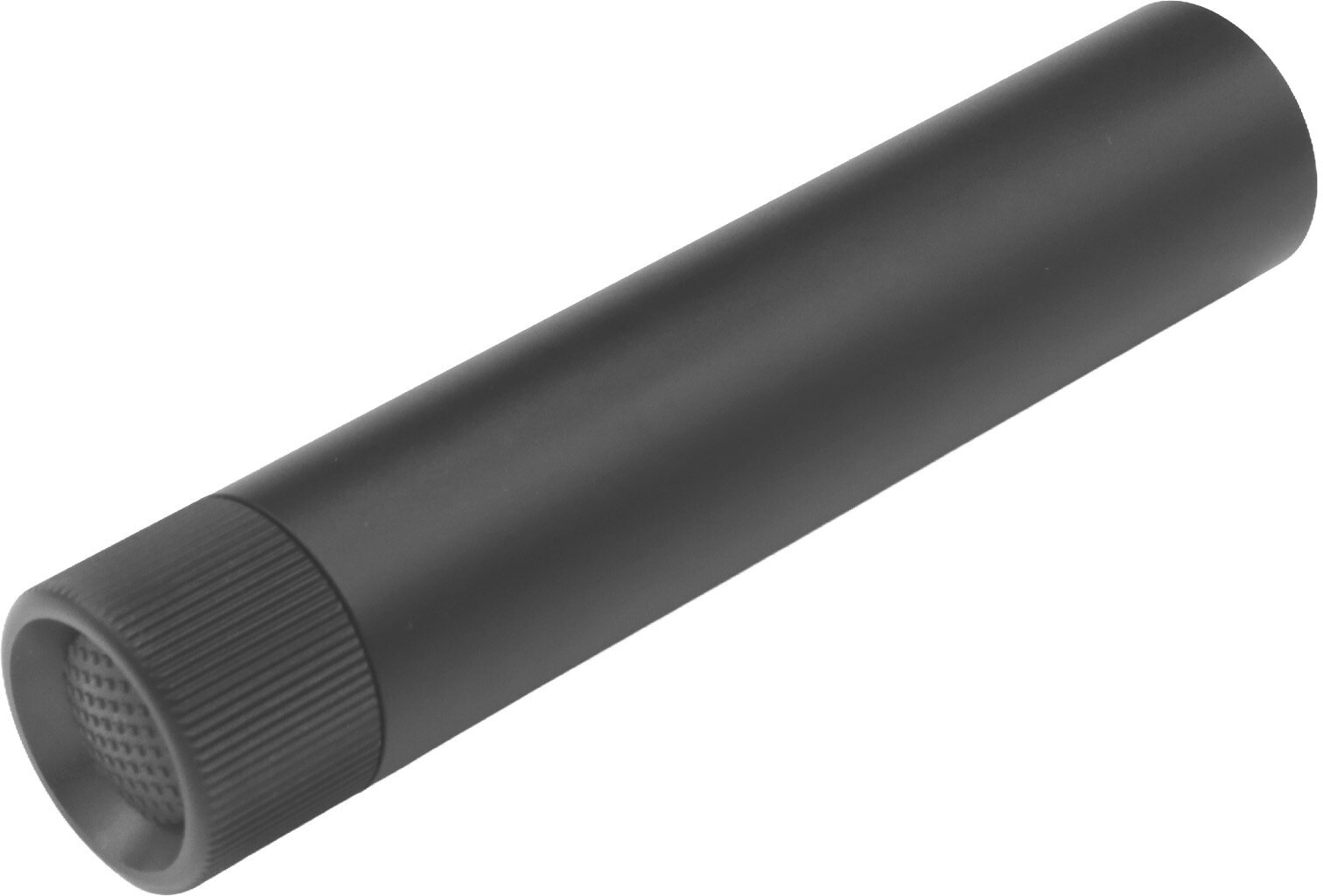

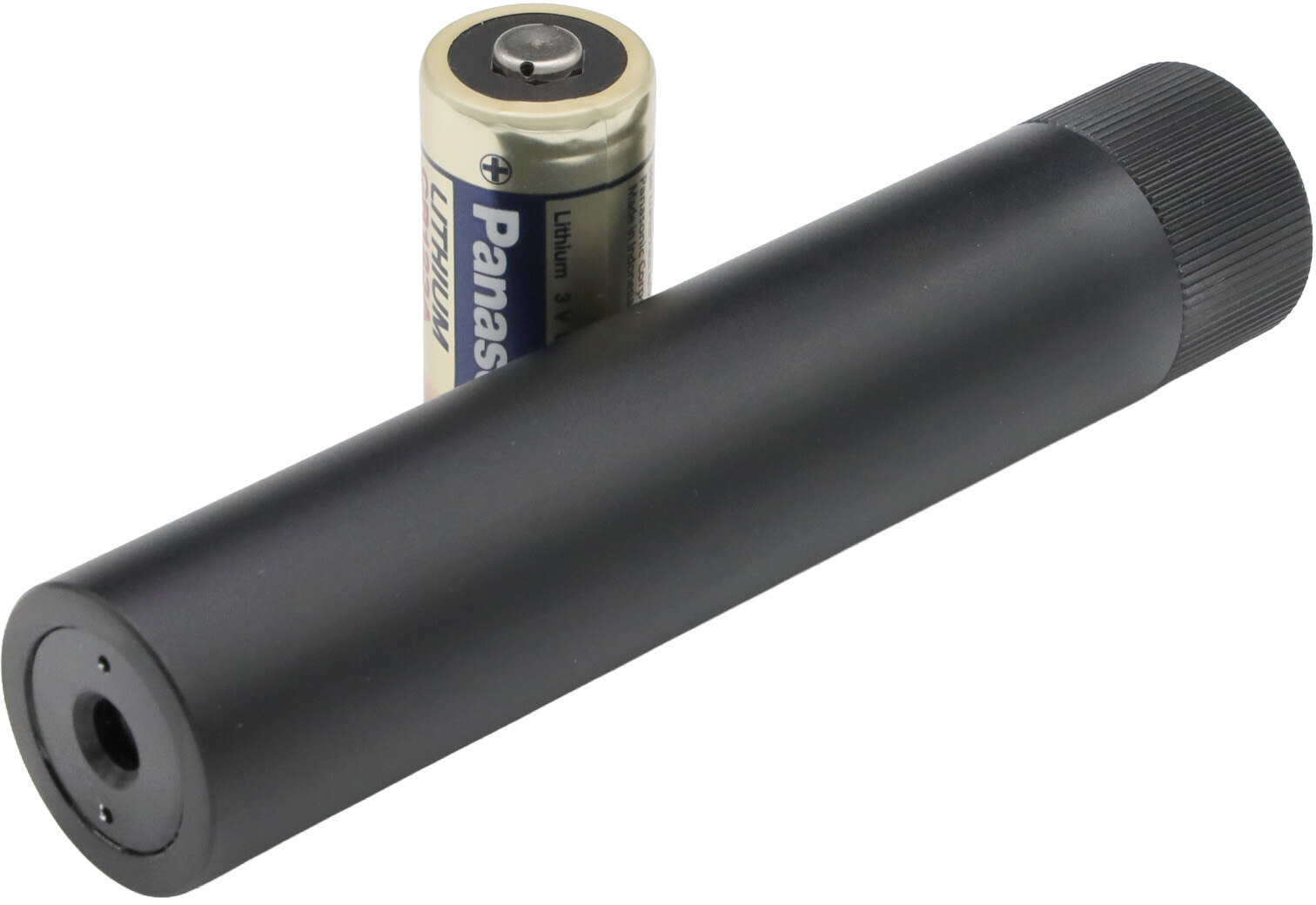

DB650-1-3-FA(22x105)-S-AP - Produktbild 1
DB650-1-3-FA(22x105)-S-AP - Hauptbild
DB650-1-3-FA(22x105)-S-AP - Rendergrafik
Warnlabel 2
120,08
所有价格单位均为欧元,含运费含税价

我们不需要隐藏我们的价格!

您是不是很惊讶我们的价格都是公开的、透明的? 而其他的供应商只是给您一个单独的报价? 我们的成本在坦诚相待的基础上也是透明的 所有的客户都是一视同仁的,您可以自由选择。

支: 10501002505001000
折扣: 10%15%20%25%30%35%
  • 参数
  • Warranty1Jahre
    Beam Shape
    Wavelength650nm
    (rot)
    Optical Power1mW
    Laser Class2
    Divergence0.3mrad
    Beam Diameter3mm
    Size of Laserdot<3.5mm@5m
    Operating Distance10m
    Optics镀膜玻璃透镜
    Laser technologySingle Mode Diode
    Axial Divergence±0.25°
    Size
    Materialaluminium
    Focusfixed (5.0m)
    Output Aperture3.5mm
    Potential of HousingVDD(+)
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current10 - 40, typ 19mA
    BatteryCR123A Lithium Battery, 3V 1400mAh
    Housing Color黑色
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight74g
  • 图解及技术图纸
  • DB650-1-3-FA(22x105)-S-AP - Produktbild 1
    DB650-1-3-FA(22x105)-S-AP - Hauptbild
    DB650-1-3-FA(22x105)-S-AP - Rendergrafik
    Warnlabel 2
  • 适用的附件
  • LABEL-DIN-CLASS2-DELABEL-DIN-CLASS2-DE
    订单号: 70110838
    Safety Label german DIN EN 60825, Class 2, 38x23mm, yellow, PET
    0.60 EUR
