MLE520-5-3(22X82)60

订单号: 70191240

产品描述:
Modulated line laser module, green, 520 nm, 5 mW, 3 V DC, Ø22x82 mm, Focus fixed (750mm), Laser class 1, Switchable operating mode CW or 1.5Hz
MLE520-5-3(22X82)60 - Produktbild 1
MLE520-5-3(22X82)60 - Hauptbild
Warnlabel 1
252,02
所有价格单位均为欧元，含运费含税价

我们不需要隐藏我们的价格！

您是不是很惊讶我们的价格都是公开的、透明的？ 而其他的供应商只是给您一个单独的报价？ 我们的成本在坦诚相待的基础上也是透明的 所有的客户都是一视同仁的，您可以自由选择。

支: 10501002505001000
折扣: 10%15%20%25%30%35%
  • 参数
  • Warranty1Jahre
    Beam Shape线
    Wavelength520nm
    (grün)
    Optical Power5mW
    Laser Class1
    Divergence0.4mrad
    Fan Angle60°
    Line Thickness<2mm @750mm
    Operating Distance750m
    Optics镀膜玻璃透镜
    Size
    Materialaluminium
    Focusfixed (750mm)
    Lifetime>10000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current75 - 250, typ 150mA
    BatteryCR123A Lithium Battery, 3V 1400mAh
    Battery count1
    Housing Color黑色
    Operating Temperature-10°C - 60°C
    Storage Temperature-40°C - 80°C
    Weight87g
    Delivery ContentA battery of type CR123A is included in the scope of delivery.

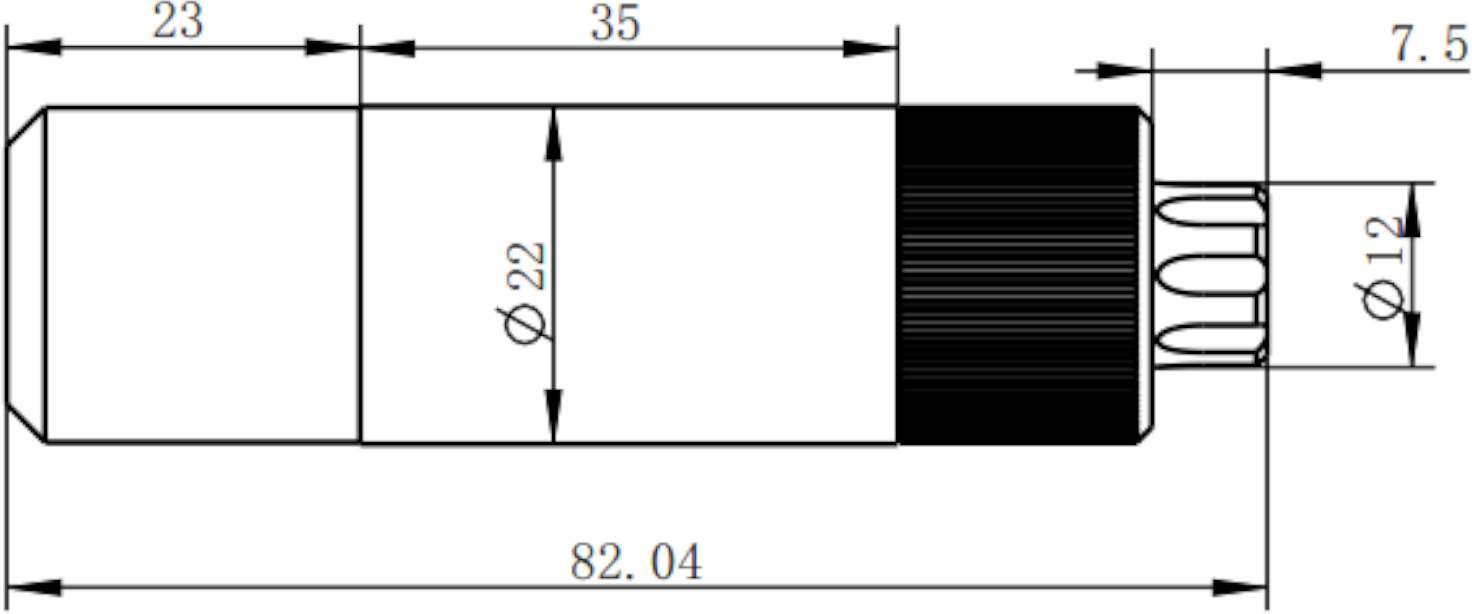

  • 图解及技术图纸
  • MLE520-5-3(22X82)60 - Produktbild 1
    MLE520-5-3(22X82)60 - Hauptbild
    Warnlabel 1
  • 适用的附件
  • LABEL-DIN-CLASS1-DELABEL-DIN-CLASS1-DE
    订单号: 70110821
    Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET
    0.60 EUR
  • Downloads
  • 参数表 传真订单表单
