LC650-5-5-F(14x45)-C1000-CON

Número de pedido: 70106916

Descripción del producto:
Focusable isolated line lasermodule, red, 90°, 650nm, 5mW, 5V DC, 14x45mm, class 2M

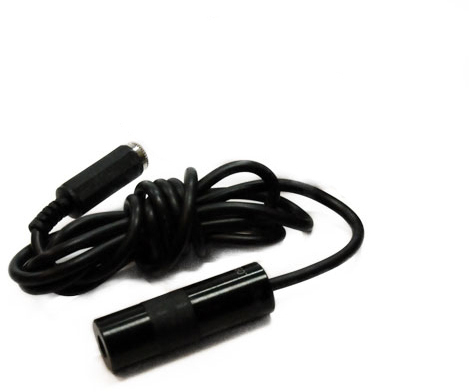

LC650-5-5-F(14x45)-C1000-CON - Rendergrafik

LC650-5-5-F(14x45)-C1000-CON - Zeichnung

LC650-5-5-F(14x45)-C1000-CON - Zeichnung Front

LC650-5-5-F(14x45)-C1000-CON - Zeichnung isometrisch

109,16
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades:	10	50	100	250	500	1000
Descuento:	10%	15%	20%	25%	30%	35%

Características

Warranty	1Jahre
Beam Shape	Línia
Wavelength	650nm (rot)
Optical Power	5mW
Laser Class	1
Divergence	0.4mrad
Fan Angle	90°
Line Thickness	ajustable
Operating Distance	3m
Optics	Lente de cristal con recubrimiento AR
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	1000mm
Wire type	24AWG, black, 3mm
Focus	ajustable
Output Aperture	4mm
Potential of Housing	aislado
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	25 - 75, typ 50mA
Housing Color	negro
Connector	2.1 mm DC plug (GND pole inner)
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	18g
Stripping of wire	5mm
Stripping of cable cover	75mm

Imágenes y dibujo técnico
Asignación de conectores
Dimensiones: negro GND
Stecker Pin Dimensiones: inner pole
Positivo: white 5V DC
Stecker Pin Positivo: outer pole
Accesorios idóneos
LFNT-5
Pedido Nr.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
