LE850-5-3-F-S(22x100)45DEG
Número de pedido: 70123777
Descripción del producto:
Focusable Line lasermodule, infrared, 45°, 850nm, 5mW, 3V DC, 22x100mm, class 1, BATT-CR123A
• image processing
• Laser Class 1
• Operating Voltage 3 V DC
• adjustable focus
• glas lenses anti reflex coated
• BATT-CR123A
Descripción del producto:
Focusable Line lasermodule, infrared, 45°, 850nm, 5mW, 3V DC, 22x100mm, class 1, BATT-CR123A
• image processing
• Laser Class 1
• Operating Voltage 3 V DC
• adjustable focus
• glas lenses anti reflex coated
• BATT-CR123A
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 850nm

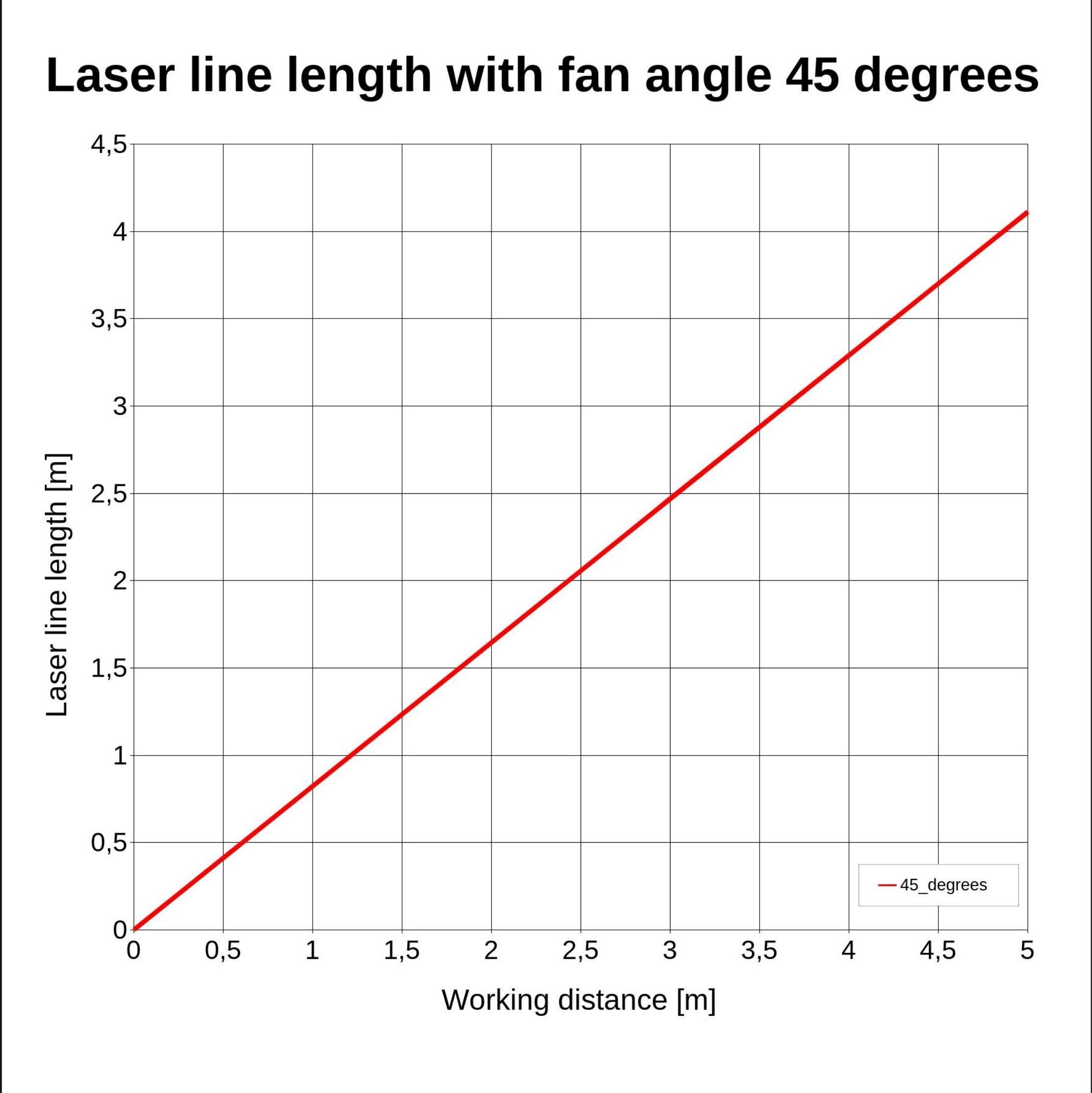

(infrarot)Optical Power 5mW Laser Class 1 Divergence 0.6mrad Fan Angle 45° Line Thickness ajustable Operating Distance 3m Optics Lente de cristal con recubrimiento AR Laser technology Single Mode Diode Size Ø22mm 100mm Material aluminium Focus ajustable Output Aperture 4.5mm Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 20 - 55, typ 35mA Battery CR123A Lithium Battery, 3V 1400mAh Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 78g Protection Class IPIP 50 - Imágenes y dibujo técnico
- Accesorios idóneos
MULTI-MOUNT-22(45x75)
Pedido Nr.: 70115215
Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
