E532-1-3(24X120)APT20-CON

Número de pedido: 70135183

Descripción del producto:
Adjustable Isolated Expander Laser Module, Green, 532nm, 1mW, 3V DC, 24x120mm, Class 2, with 2.1mm DC Hollow Plug

• Operating voltage 3 V DC
• anti-reflective coated glass lenses
• laser class 2
• focus adjustable
• even illumination

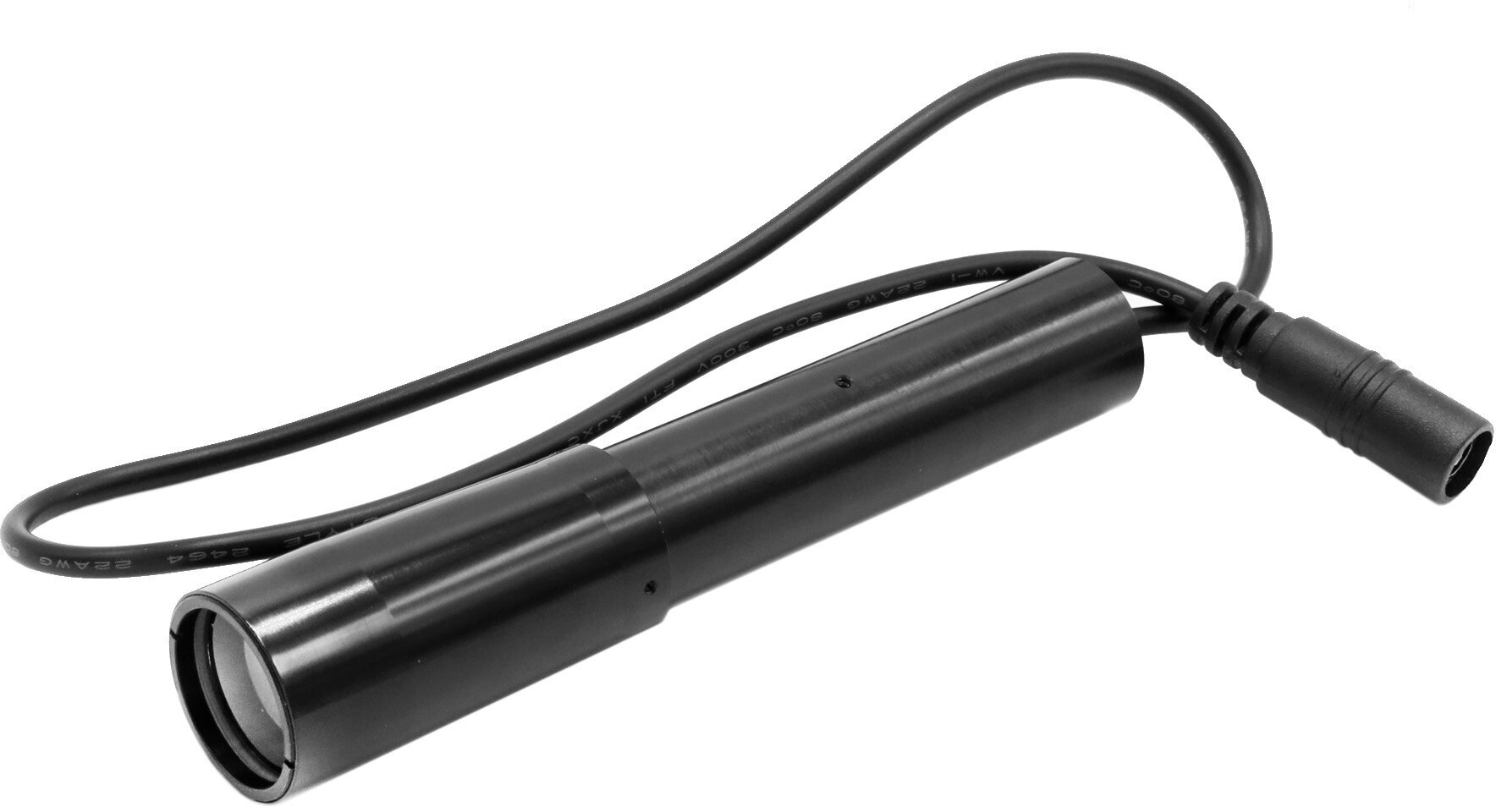

E532-1-3(24X120)APT20-CON - Hauptbild
E532-1-3(24X120)APT20-CON - Rendergrafik
Warnlabel 2
302,44
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape expander
    Wavelength 532nm
    (grün)
    Optical Power 1mW
    Laser Class 2
    Operating Distance 200m
    Optics Lente de cristal con recubrimiento AR
    Beam Mode TEM00
    Laser technology YVO4+KTP
    Stability +/- 20% @ 15-30°C
    Size Ø24mm 120mm
    Material aluminium
    Cable length 400mm
    Wire type 22AWG, black, 3,6mm
    Focus ajustable
    Output Aperture 20mm
    Potential of Housing aislado
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 150 - 450, typ 300mA
    Connector 2.1 mm DC plug (+pole inner)
    Operating Temperature 15°C - 30°C
    Storage Temperature -40°C - 80°C
    Warm up time <15min
    Weight 87g
    Stripping of wire 5mm
  • Imágenes y dibujo técnico
  • E532-1-3(24X120)APT20-CON - Hauptbild
    E532-1-3(24X120)APT20-CON - Rendergrafik
    Warnlabel 2
  • Accesorios idóneos
  • AM1-1203SZAM1-1203SZ
    Pedido Nr.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
