LH660-50-5(26x105)110-F1500

Número de pedido: 70140668

Descripción del producto:
Line lasermodule, red, 110°, 660nm, 50mW, 5V DC, 26x105mm, class 2M, focus at 1.5m

• Operating Voltage 5V DC
• Laser Class 2M
• low cost
• Fan angle 110 °
• compact size

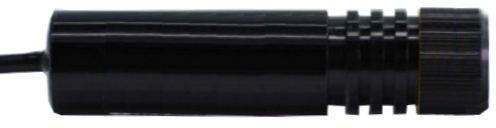

LH660-50-5(26x105)110-F1500 - Hauptbild
LH660-50-5(26x105)110-F1500 - Rendergrafik
Warnlabel 2M
252,02
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Línia
    Wavelength 660nm
    (rot)
    Optical Power 50mW
    Laser Class 2M
    Divergence 0.3mrad
    Fan Angle 110°
    Line Thickness <1mm@1.5m
    Operating Distance 10m
    Optics Lente de cristal con recubrimiento AR
    Laser technology Single Mode Diode
    Size Ø26mm 105mm
    Material aluminium
    Cable length 1000mm
    Wire type 24AWG, black, 3mm
    Focus fixed (1500mm)
    Output Aperture 6mm
    Potential of Housing aislado
    Lifetime >10000h
    Operating Voltage 3 - 5, typ 5V DC
    Operating Current 50 - 225, typ 125mA
    Housing Color negro
    Connector 2.5 mm DC socket (+ pole inner)
    Operating Temperature -10°C - 50°C
    Storage Temperature -40°C - 85°C
    Weight 63g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Protection Class IPIP 54
  • Imágenes y dibujo técnico
  • LH660-50-5(26x105)110-F1500 - Hauptbild
    LH660-50-5(26x105)110-F1500 - Rendergrafik
    Warnlabel 2M
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Stecker Pin Dimensiones: outer pole
    Positivo:Cable color Positive: redrojo5V DC
    Stecker Pin Positivo: inner pole
