MDI650-5-5(10x26)-C250-CON
Número de pedido: 70142150
Descripción del producto:

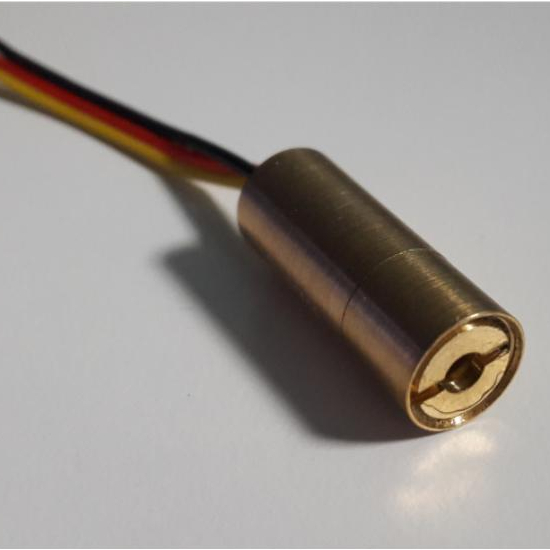

dot lasermodule, red, 650nm, 5mW, 5V DC, modulated, 10x26mm,class 3R, with fitting connectors for Arduino
• Operating Voltage 5V DC
• Laser Class 3R
• compact size
• fixed focus
Descripción del producto:
dot lasermodule, red, 650nm, 5mW, 5V DC, modulated, 10x26mm,class 3R, with fitting connectors for Arduino
• Operating Voltage 5V DC
• Laser Class 3R
• compact size
• fixed focus
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Punto Wavelength 650nm
(rot)Optical Power 5mW Laser Class 3R Divergence 1.5mrad Size of Laserdot <3 mm@1m Operating Distance 1m Optics acryl lense Laser technology Single Mode Diode Size Material Latón Cable length 250mm Wire type 26AWG, 0,14mm² Focus collimated Potential of Housing VDD(+) Max. Mod. Frequency 20kHz Lifetime >5000h Operating Voltage 4.5 - 5.5, typ 5V DC Operating Current 12 - 25, typ 18mA Housing Color brass Operating Temperature -10°C - 50°C Storage Temperature -20°C - 65°C Weight 6g Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. - Imágenes y dibujo técnico

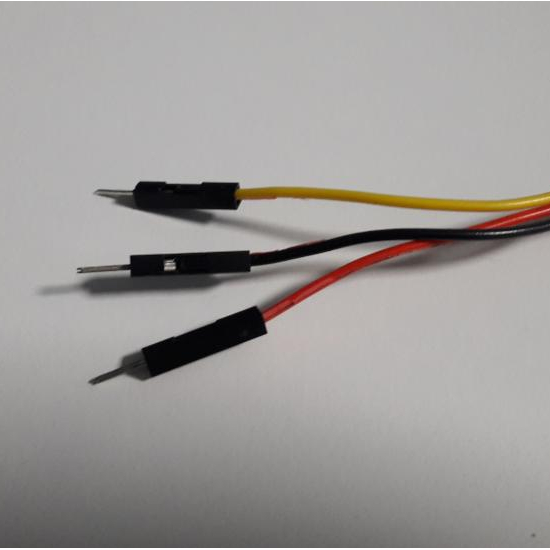

- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 5V DC Modulación:
amarillo 20kHz - Accesorios idóneos
LFNT-5
Pedido Nr.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR- Downloads
