MLH905-50-5(18x60)30-PWL-F400-P
Número de pedido: 70144758
Descripción del producto:

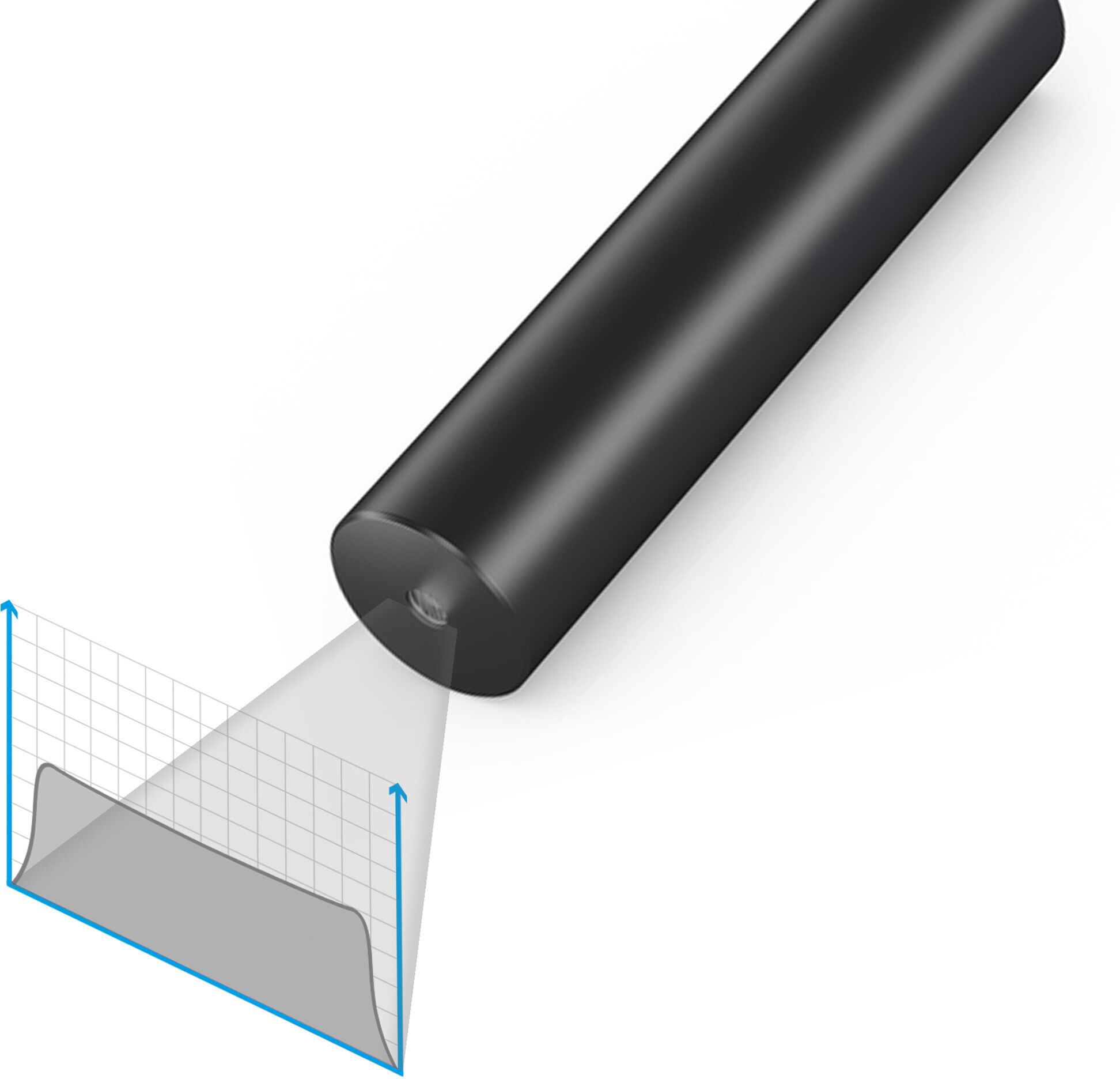

line laser, infrared, 30°, 905nm, 50mW, 5V DC, 18x60mm, class 3R, uniform line distribution, Powell lens, Focus 400mm, Output power control: Poti, TTL modulation, Linethickness ≤500μm (@400±20mm)
• Powell Lens
• Uniform line distribution
• Image processing
Descripción del producto:
line laser, infrared, 30°, 905nm, 50mW, 5V DC, 18x60mm, class 3R, uniform line distribution, Powell lens, Focus 400mm, Output power control: Poti, TTL modulation, Linethickness ≤500μm (@400±20mm)
• Powell Lens
• Uniform line distribution
• Image processing
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 905nm
(infrarot)Optical Power 50mW Laser Class 3R Divergence 1mrad Fan Angle 30° Line Thickness <0.3mm@0.4m Operating Distance 0.4m Optics Powell Lens Laser technology Single Mode Diode Opt. Power Stability at const. Temp. <5% Axial Divergence ±1° Size Ø18mm 60mm Material aluminium Cable length 200mm Wire type 28AWG, Typ 1571 Focus fixed (400mm) Output Aperture 4mm Potential of Housing aislado Lifetime >10000h Operating Voltage 4.5 - 5, typ 5V DC Operating Current 50 - 250, typ 140mA Housing Color negro Operating Temperature -20°C - 60°C Storage Temperature -40°C - 85°C Weight 20g Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 5V DC Modulación:
verde - Accesorios idóneos
MULTI-MOUNT-18(45x75)
Pedido Nr.: 70114119
Mount for Lasermodul 18mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
