EJ520-50-24(14x45)-AWL-NT

Número de pedido: 70147520

Descripción del producto:
isolated expander laser, green, 520nm, 50mW, 12-24V DC, 14x45mm, lasr class 3R, incl. power supply

• image processing
• Protection lens
• compact size

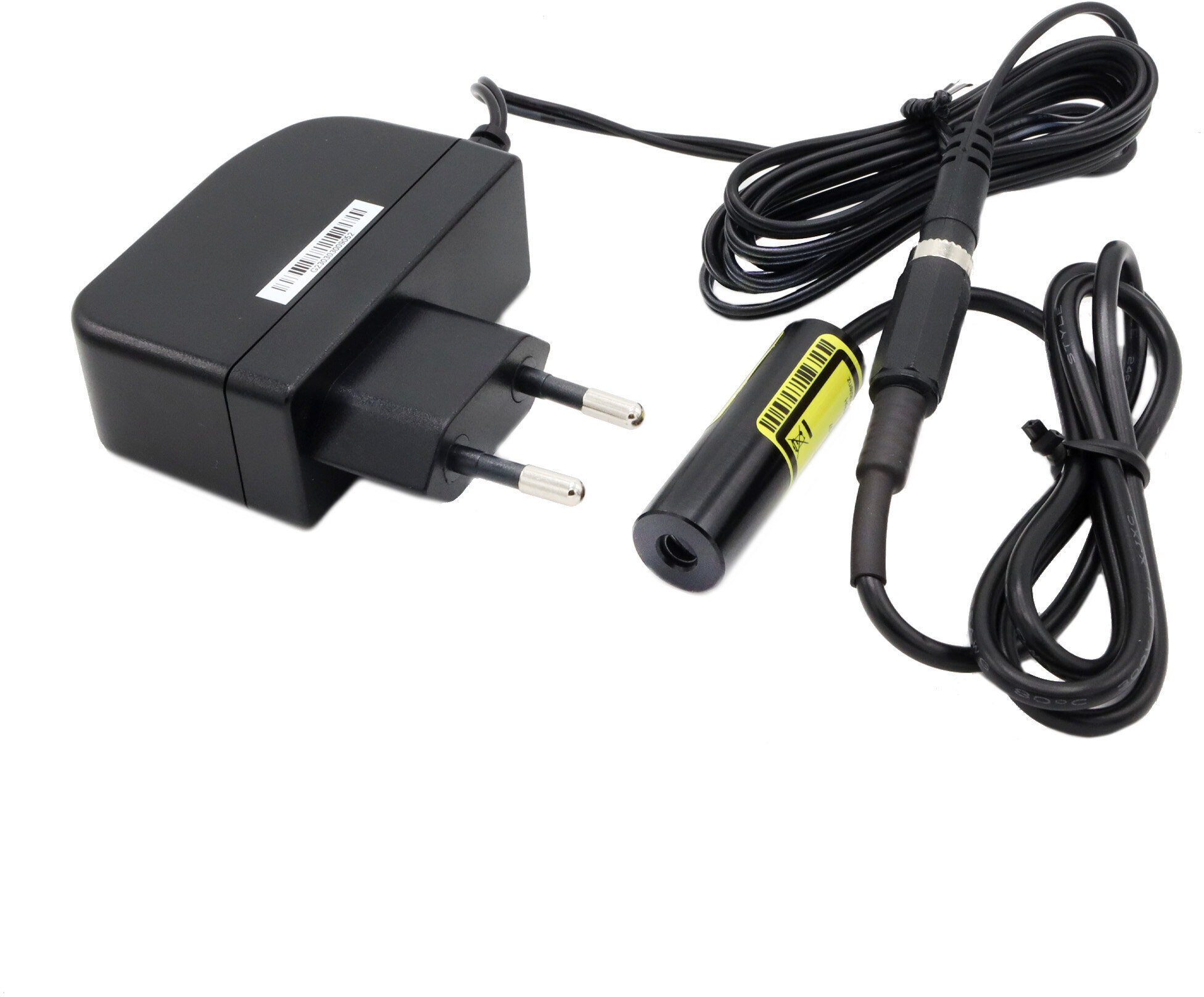

EJ520-50-24(14x45)-AWL-NT - Hauptbild
EJ520-50-24(14x45)-AWL-NT - Zeichnung
EJ520-50-24(14x45)-AWL-NT - Zeichnung Front
EJ520-50-24(14x45)-AWL-NT - Zeichnung isometrisch
Warnlabel 3R
352,86
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape expander
    Wavelength 520nm
    (grün)
    Optical Power 50mW
    Laser Class 3R
    Size of Laserdot <400mm@0.3m
    Operating Distance 1m
    Optics Lente de cristal con recubrimiento AR
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø14mm 45mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (300mm)
    Output Aperture 5.5mm
    Potential of Housing aislado
    Lifetime >10000h
    Operating Voltage 12 - 24, typ 24V DC
    Operating Current 50 - 250, typ 180mA
    Housing Color negro
    Connector 2.1 mm DC plug (+pole inner)
    Operating Temperature -10°C - 50°C
    Storage Temperature -40°C - 80°C
    Power Supply included Ja
    Weight 18g
    Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    internal modulation frequency 1kHz
  • Imágenes y dibujo técnico
  • EJ520-50-24(14x45)-AWL-NT - Hauptbild
    EJ520-50-24(14x45)-AWL-NT - Zeichnung
    EJ520-50-24(14x45)-AWL-NT - Zeichnung Front
    EJ520-50-24(14x45)-AWL-NT - Zeichnung isometrisch
    Warnlabel 3R
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo24V DC
  • Accesorios idóneos
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Pedido Nr.: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    61.26 EUR
