LFNT-24-C-M12
Número de pedido: 70150001
Descripción del producto:

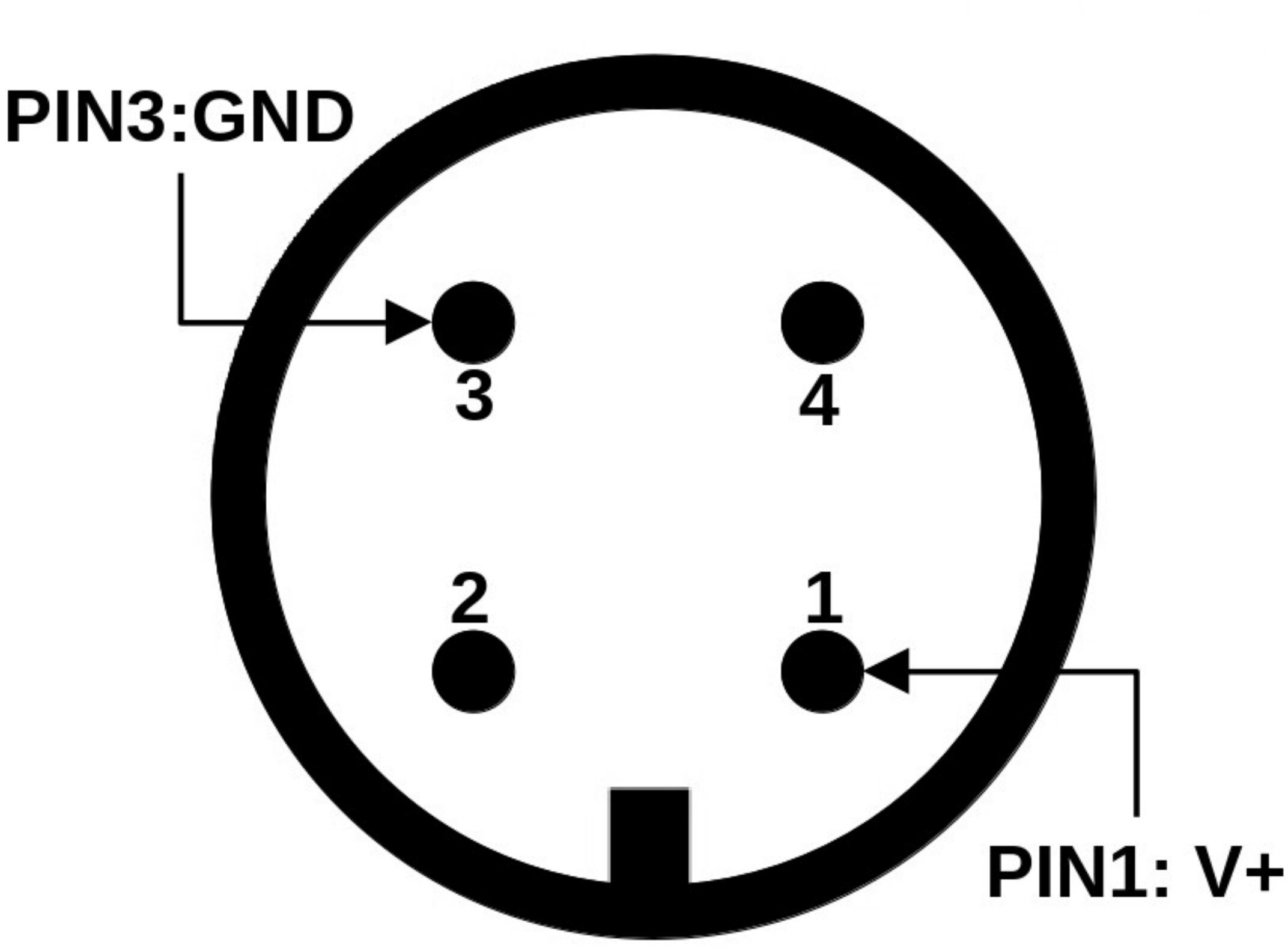

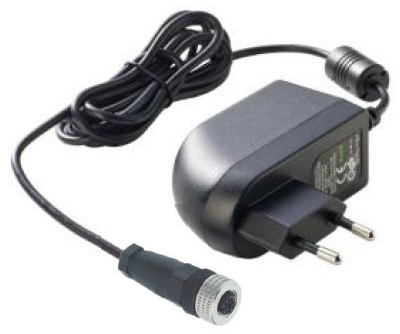

Laser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector
• compact size
Descripción del producto:
Laser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector
• compact size
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Size 55 x 80 x 26.5mm Material Plastic Cable length 1830mm Lifetime >50000h Operating Voltage 100 - 240, typ 230V DC Output Voltage 24V DC Output Voltage nominal 24V DC Operating Current 1000mA Housing Color negro Connector CON-M12 Operating Temperature -30°C - 50°C Storage Temperature -50°C - 60°C Weight 85g - Imágenes y dibujo técnico
- Accesorios idóneos
NF-S-419424-1-16A
Pedido Nr.: 70115031
Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
144.45 EUR- Downloads
