LB650-50-24(19x88)45DEG-PWL-TTL
Número de pedido: 70150209
Descripción del producto:

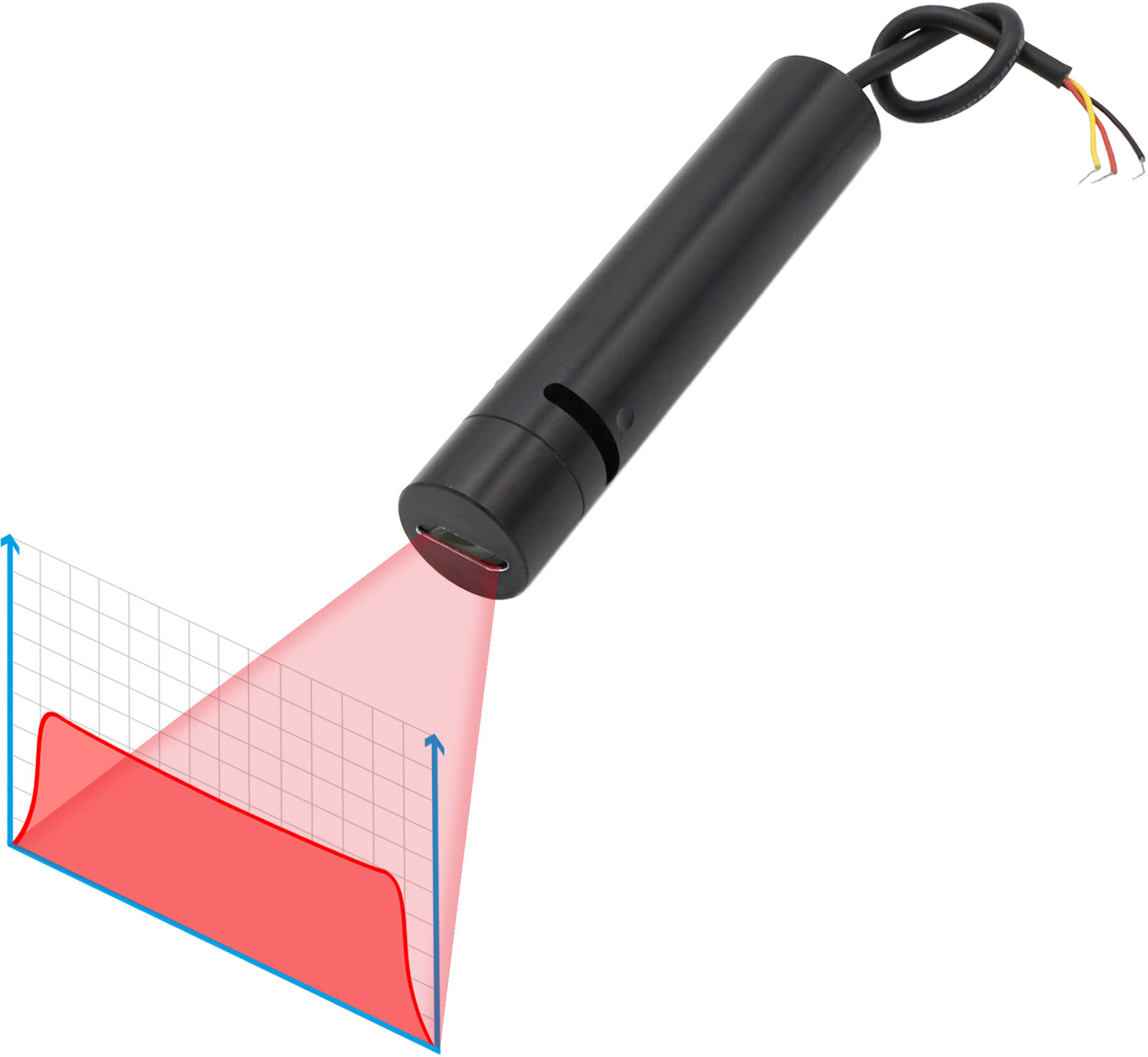

adjustable line laser, red, 45°, 650nm, 50mW, 5V DC, 19x88mm, class 3B, constant energy distribution, Powell Linse, TTL 0-5V, compatible with Osela® etc.
Descripción del producto:
adjustable line laser, red, 45°, 650nm, 50mW, 5V DC, 19x88mm, class 3B, constant energy distribution, Powell Linse, TTL 0-5V, compatible with Osela® etc.
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 650nm
(rot)Optical Power 50mW Laser Class 3B Divergence 0.3mrad Fan Angle 45° Line Thickness ajustable Operating Distance 0.5m Optics Powell Lens Laser technology Single Mode Diode Opt. Power Stability at const. Temp. <3% Protection Lens Ja Axial Divergence ±0.2° Size Ø19mm 88mm Material aluminium Cable length 500mm Wire type Belden 9533 Focus ajustable Output Aperture 6.8mm Potential of Housing aislado Max. Mod. Frequency 10kHz Lifetime >10000h Operating Voltage 12 - 24, typ 24V DC Operating Current 15 - 70, typ 30mA Housing Color negro Operating Temperature -10°C - 50°C Storage Temperature -40°C - 80°C Weight 20g Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max. - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 24V DC Modulación:
amarillo 10kHz - Accesorios idóneos
MULTI-MOUNT-19(45x75)
Pedido Nr.: 70115192
Mount for Lasermodul 19mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
