MDD670-1-5(12.7X39)
modulated Dot lasermodule, red, 670nm, 1mW, 5V DC, 12,7x39mm, class 2
MLH520-30-24(22X90)45-F4000
Número de pedido: 70151138
Descripción del producto:

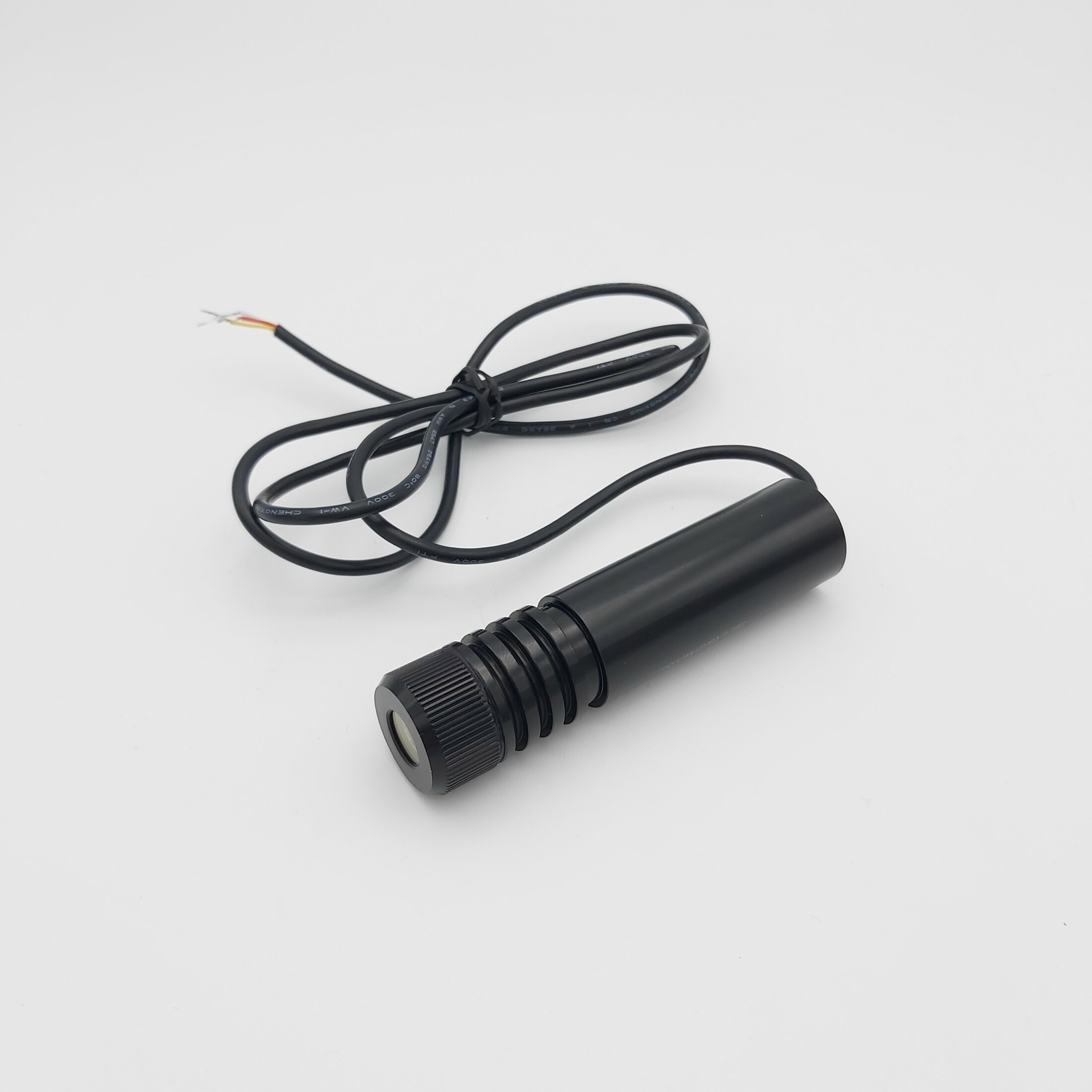

Modulated isolated line laser module, green, 520 nm, 30 mW, 24 V DC, Ø22x90 mm, 45 °, Focus fixed (4.0m), Cable length 400 mm, Laser class 2M
Descripción del producto:
Modulated isolated line laser module, green, 520 nm, 30 mW, 24 V DC, Ø22x90 mm, 45 °, Focus fixed (4.0m), Cable length 400 mm, Laser class 2M
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 520nm
(grün)Optical Power 30mW Laser Class 2M Divergence 1mrad Fan Angle 45° Line Thickness <1.5mm@4m Operating Distance 4m Optics Lente de cristal con recubrimiento AR Laser technology Single Mode Diode Protection Lens Ja Size Material aluminium Cable length 400mm Focus fixed (4.0m) Output Aperture 5.5mm Potential of Housing aislado Max. Mod. Frequency 0.05kHz Lifetime >10000h Operating Voltage 23.5 - 25.5, typ 24V DC Operating Current 30 - 50, typ 50mA Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 79g Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max. Protection Class IPIP 64 Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 24V DC Modulación:
amarillo 0.05kHz - Accesorios idóneos
LFNT-24-C
Pedido Nr.: 70115055
Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
31.85 EUR- Downloads
