E532-10-3(43x200)APT30
Número de pedido: 70102543
Descripción del producto:
Isolated Expander lasermodule, green, 532nm, 10mW, 3V DC, 43x200mm, class 2M
• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• uniform illumination
• Laser Class 2M
• image processing
Descripción del producto:
Isolated Expander lasermodule, green, 532nm, 10mW, 3V DC, 43x200mm, class 2M
• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• uniform illumination
• Laser Class 2M
• image processing

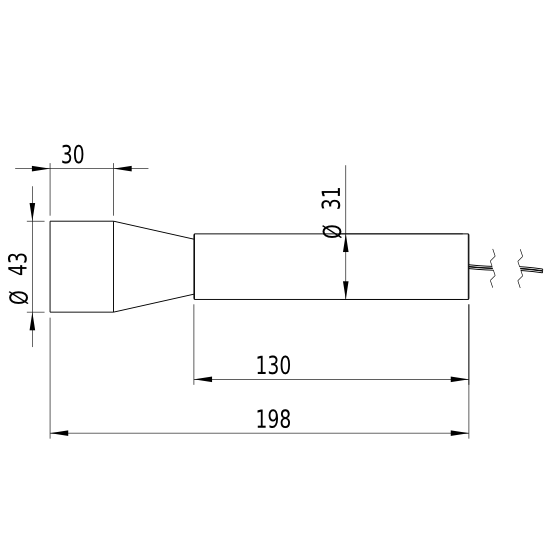

.png "E532-10-3(43x200)APT30 - Zeichnung")

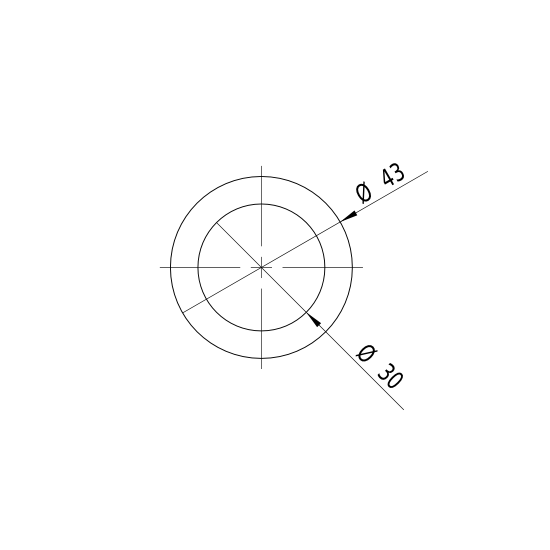

.png "E532-10-3(43x200)APT30 - Zeichnung Front")
.png "E532-10-3(43x200)APT30 - Zeichnung isometrisch")
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape expander Wavelength 532nm
(grün)Optical Power 10mW Laser Class 2M Beam Diameter 30mm Size of Laserdot <30mm@5m Operating Distance 100m Optics Lente de cristal con recubrimiento AR Beam Mode TEM00 Laser technology Solid State (YVO4+KTP) Stability +/- 20% @ 15-30°C Size Ø43mm 200mm Material aluminium Cable length 100mm Wire type 26AWG, 0,14mm² Focus fixed (5.0m) Output Aperture 30mm Potential of Housing aislado Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 250 - 750, typ 500mA Housing Color negro Operating Temperature 15°C - 30°C Storage Temperature -40°C - 80°C Warm up time <15min Weight 250g Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
azul GND Positivo:
rojo 3V DC - Accesorios idóneos
AM1-1203SZ
Pedido Nr.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
