DOE265-532-5-3(16x90)-NT
DOE Laser Module 532nm, green, 5mW, DOE 1:19 Dot Line PC 8x1.2mm 13,3° with pow…
LFD532-5-3(16x90)-NT
Numéro de commande: 70107142
Description du produit:

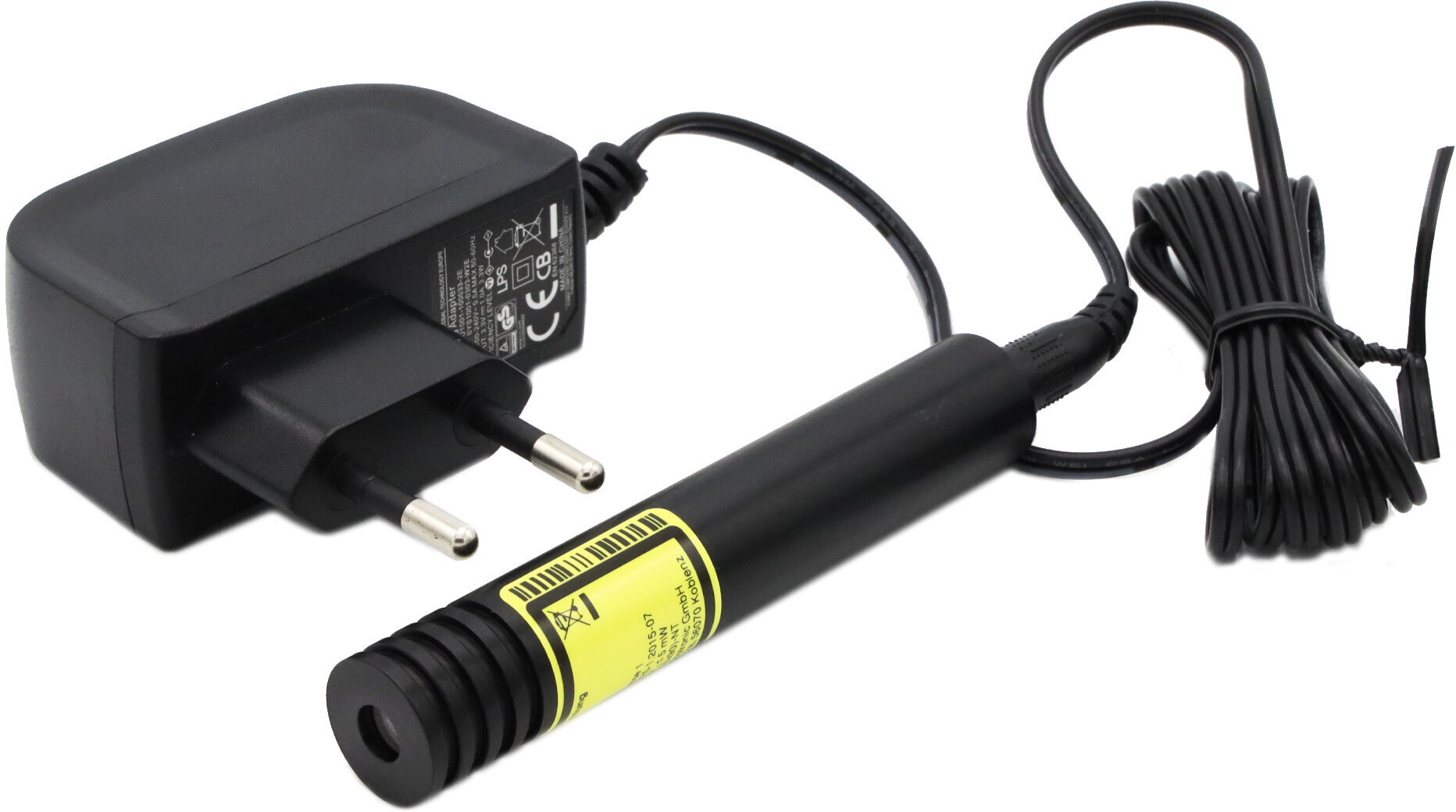

Dot lasermodule, green, 532nm, 5mW, 3V DC, 16x90mm, class 3R
• with 230V power supply
• image processing
• glas lenses anti reflex coated
• Laser Class 3R
• small laser head
Description du produit:
Dot lasermodule, green, 532nm, 5mW, 3V DC, 16x90mm, class 3R
• with 230V power supply
• image processing
• glas lenses anti reflex coated
• Laser Class 3R
• small laser head
-NT.png "LFD532-5-3(16x90)-NT - Zeichnung")
-NT.png "LFD532-5-3(16x90)-NT - Zeichnung Front")
-NT.png "LFD532-5-3(16x90)-NT - Zeichnung isometrisch")
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Point Wavelength 532nm
(grün)Optical Power 5mW Laser Class 3R Divergence 0.5mrad Beam Diameter 3mm Size of Laserdot <5mm@10m Operating Distance 150m Optics Lentille de verre revêtue d'AR Beam Mode TEM00 Laser technology YVO4+KTP Stability +/- 20% @ 15-30°C Size Ø16mm 90mm Material aluminium Cable length 1400mm Focus collimated Output Aperture 3mm Potential of Housing VDD(+) Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 125 - 375, typ 250mA Connector 2.5 mm DC plug (GND pole inner) Operating Temperature 15°C - 30°C Storage Temperature -40°C - 80°C Warm up time <15min Power Supply included Ja Weight 43g Power Supply Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative - Illustration et dessin technique
- Accessoires adaptés
MULTI-MOUNT-16(45x75)
Référence: 70112504
Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
