LH660-10-5(22x90)110-F1500
Numéro de commande: 70140682
Description du produit:

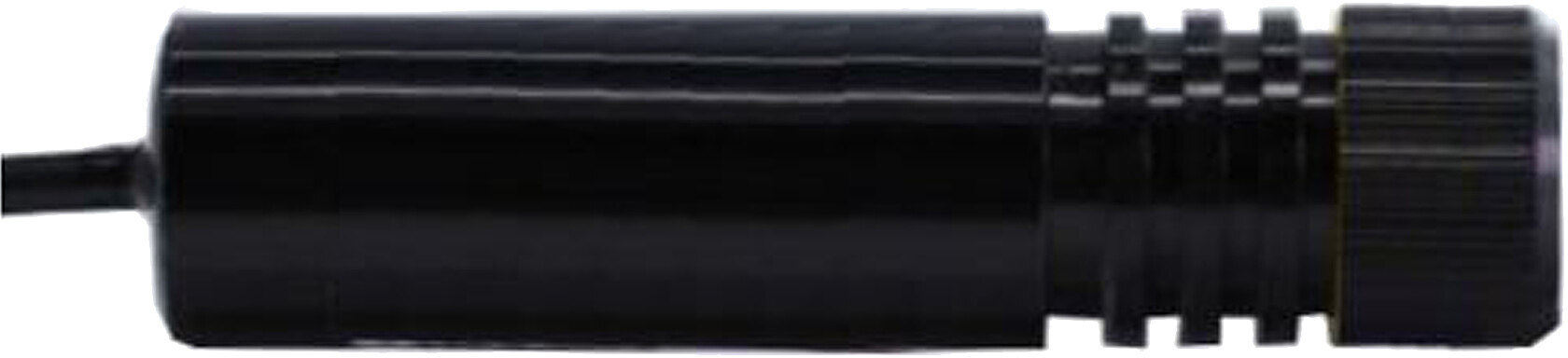

Line lasermodule, red, 110°, 660nm, 10mW, 5V DC, 22x90mm, class 1M, focus at 1.5m
• Operating Voltage 5V DC
• Laser Class 1M
• low cost
• Fan angle 110 °
• compact size
Description du produit:
Line lasermodule, red, 110°, 660nm, 10mW, 5V DC, 22x90mm, class 1M, focus at 1.5m
• Operating Voltage 5V DC
• Laser Class 1M
• low cost
• Fan angle 110 °
• compact size
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Ligne Wavelength 660nm
(rot)Optical Power 10mW Laser Class 1M Divergence 0.3mrad Fan Angle 110° Line Thickness <1mm@1.5m Operating Distance 10m Optics Lentille de verre revêtue d'AR Laser technology Single Mode Diode Size Ø22mm 90mm Material aluminium Cable length 1000mm Wire type 24AWG, black, 3mm Focus fixed (1500mm) Output Aperture 6mm Potential of Housing isolé Lifetime >10000h Operating Voltage 3 - 5, typ 5V DC Operating Current 50 - 100, typ 75mA Housing Color noir Connector 2.5 mm DC socket (+ pole inner) Operating Temperature -10°C - 50°C Storage Temperature -40°C - 85°C Weight 63g Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. Protection Class IPIP 54 - Illustration et dessin technique
- Affectation des connecteurs

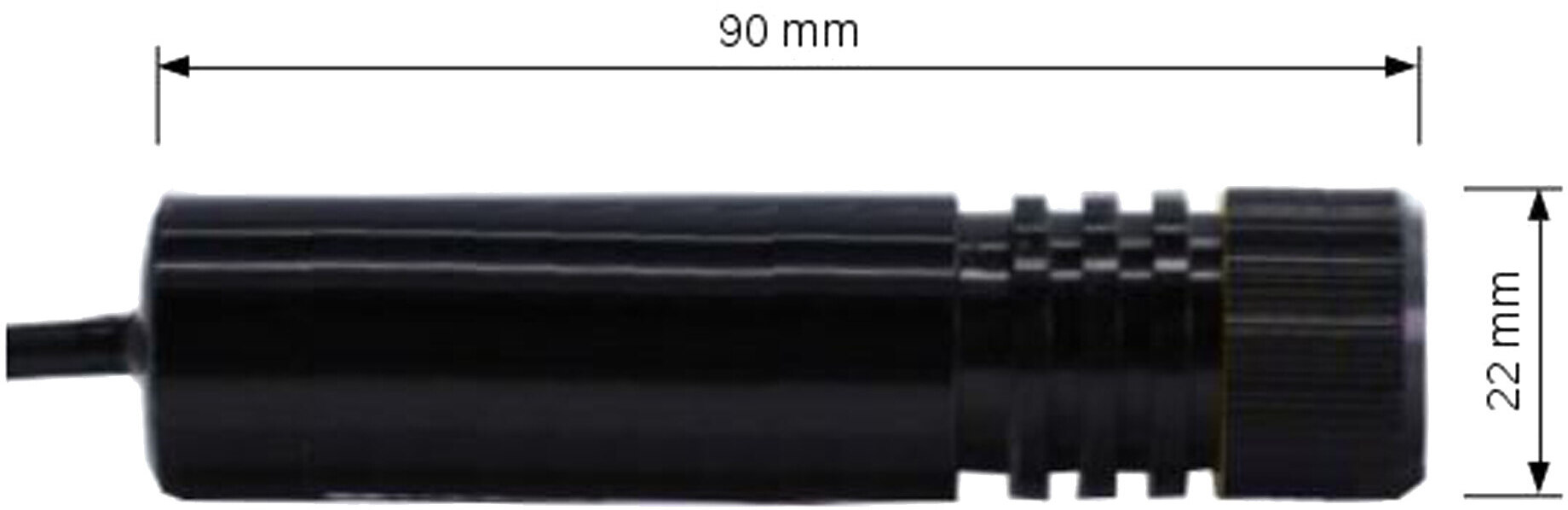

Dimensions:
noir GND Stecker Pin Dimensions: outer pole Positif:
rouge 5V DC Stecker Pin Positif: inner pole - Accessoires adaptés
MULTI-MOUNT-22(45x75)
Référence: 70115215
Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
