MULTI-MOUNT-06(45X75)-MAGNETIC
Numéro de commande: 70144116
Description du produit:

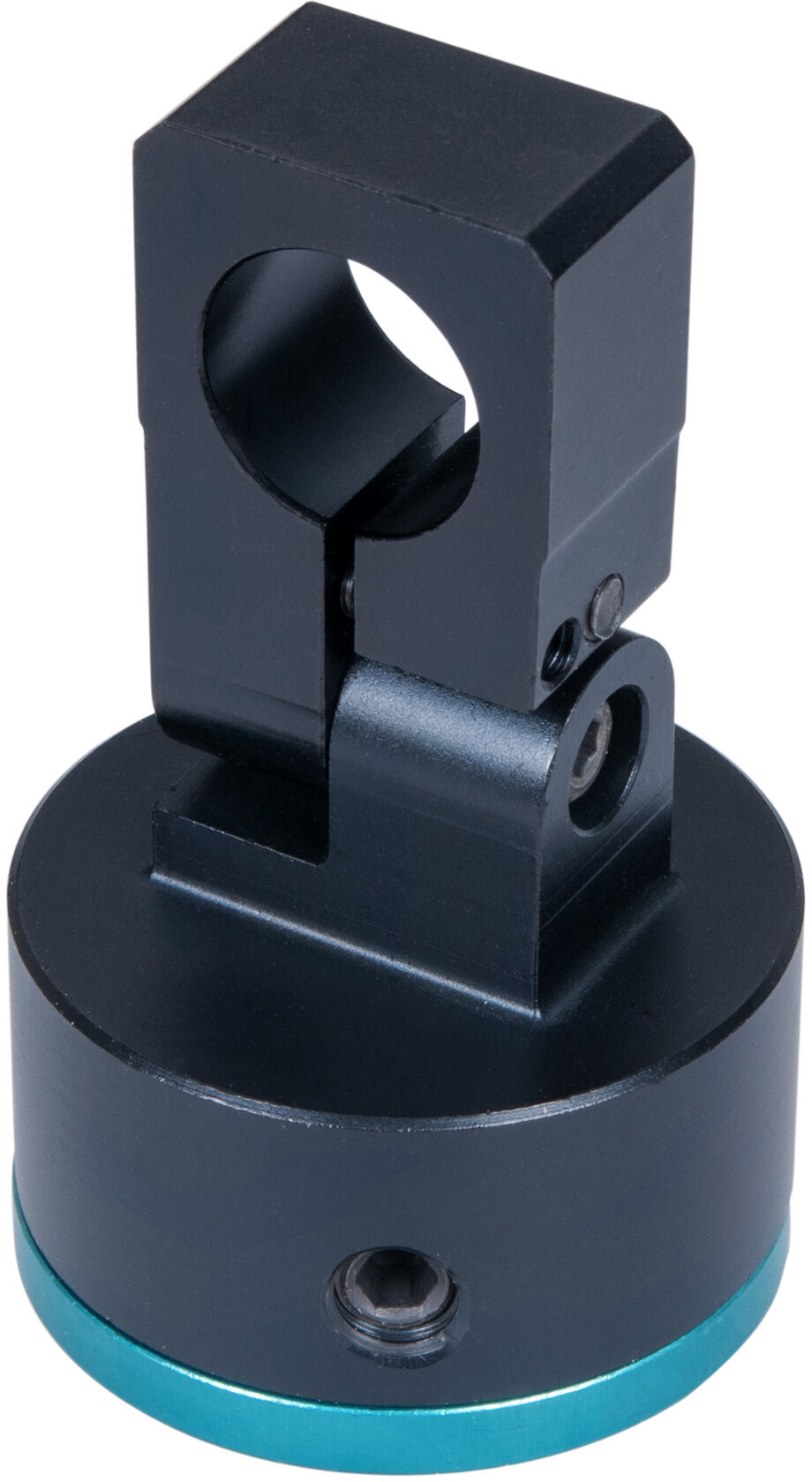

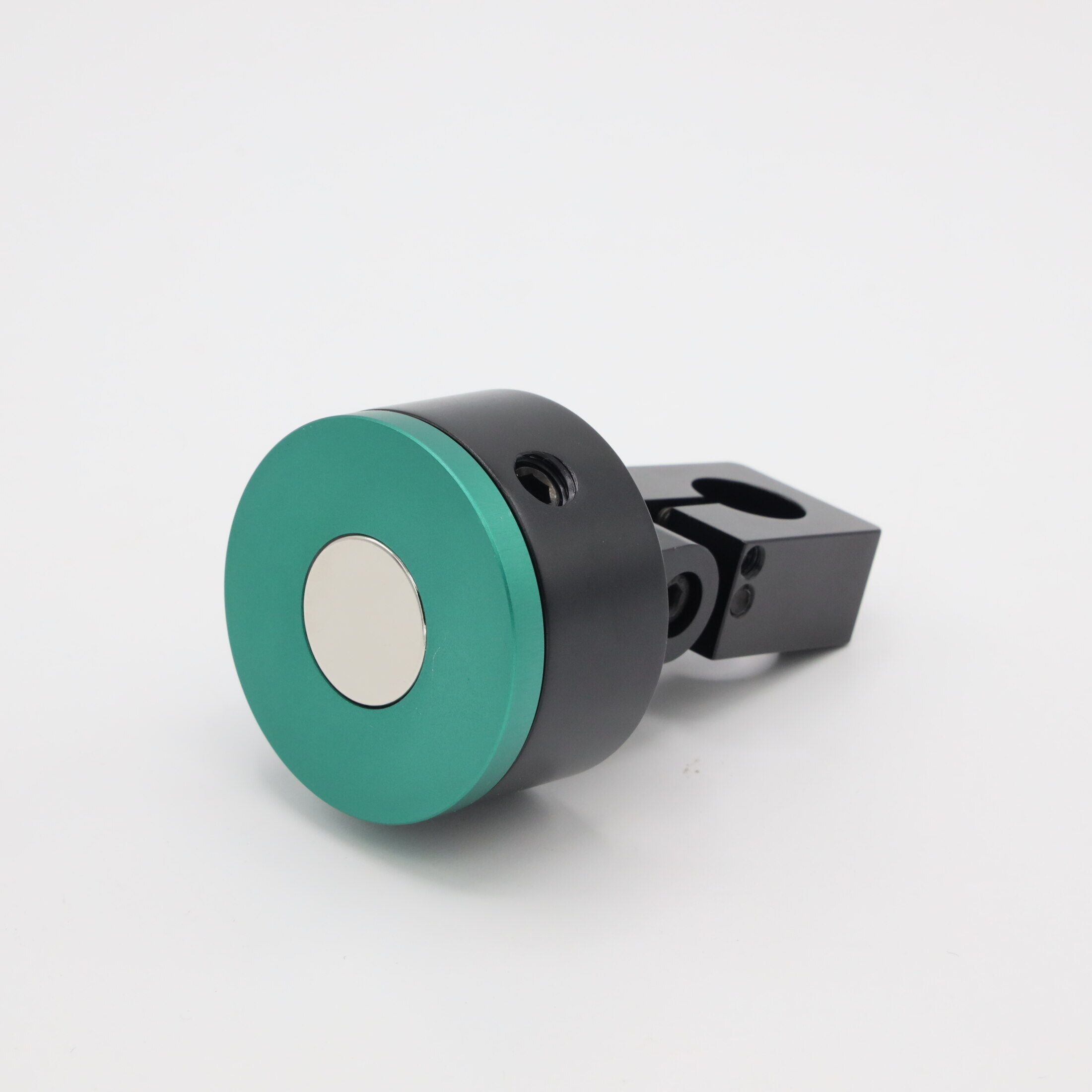

Plastic mount for Lasermodul 12mm, Diameter mm, Height mm, Magnetic Mount
Description du produit:
Plastic mount for Lasermodul 12mm, Diameter mm, Height mm, Magnetic Mount
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Size Ø45mm 75mm Material aluminium Housing Color noir Operating Temperature -20°C - 50°C Storage Temperature -50°C - 70°C Weight 141g Total Height (h1) 75mm Height to Laseraxis (h2) 60mm Height of Base (h3) 25mm Mount Diameter (d1) Ø6mm Diameter of Base (d2) Ø45mm Width of Mount (b) 26mm Height of Mount (g) 50mm Height of Mount Head (k) 50mm Depth of Mount (t) 15mm Angle of Rotation Alpha (α) 360° Angle of Rotation Beta (β) ±90° - Illustration et dessin technique
- Downloads
- Contact
