LC650-5-24-F(14x55)45-C100-CON
Numéro de commande: 70145830
Description du produit:

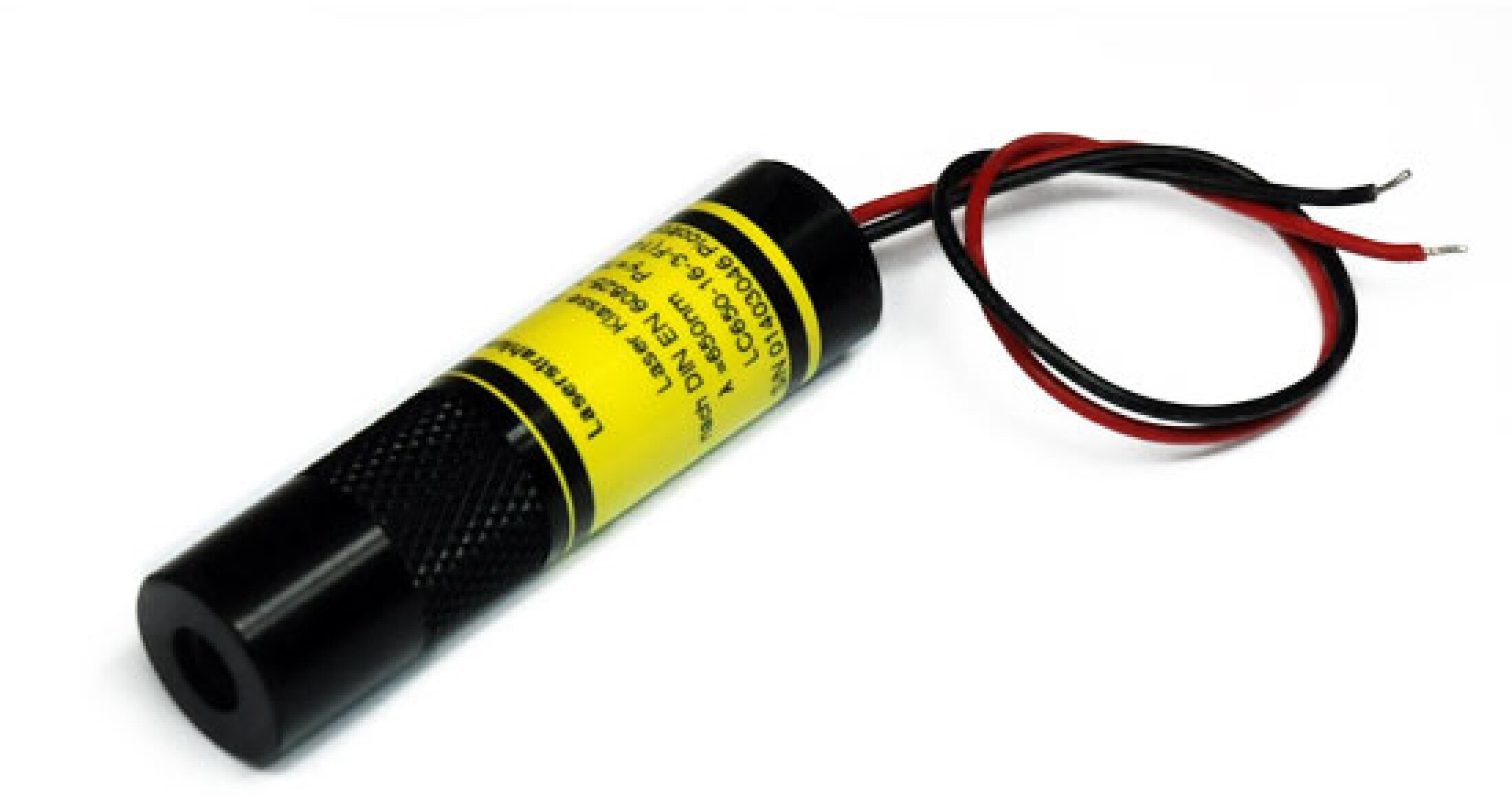

Adjustable isolated line laser module, red, 45°, 650nm, 5mW, 24V DC, 14x55mm, Class 1, with M12 connector
• Laser class 1
• image processing
• focus adjustable
• compact design
• operating voltage 24 V DC
Description du produit:
Adjustable isolated line laser module, red, 45°, 650nm, 5mW, 24V DC, 14x55mm, Class 1, with M12 connector
• Laser class 1
• image processing
• focus adjustable
• compact design
• operating voltage 24 V DC
30.png "LC650-5-24-F(14x55)45-C100-CON - Zeichnung")
30.png "LC650-5-24-F(14x55)45-C100-CON - Zeichnung Front")
30.png "LC650-5-24-F(14x55)45-C100-CON - Zeichnung isometrisch")
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Ligne Wavelength 650nm
(rot)Optical Power 5mW Laser Class 1 Divergence 0.4mrad Fan Angle 45° Line Thickness réglable Operating Distance 3m Optics Lentille de verre revêtue d'AR Laser technology Single Mode Diode Size Ø14mm 55mm Material aluminium Cable length 100mm Wire type 18AWG, black, 3,6mm Focus réglable Output Aperture 3.5mm Potential of Housing isolé Lifetime >5000h Operating Voltage 21.6 - 26.4, typ 24V DC Operating Current 4 - 25, typ 15mA Housing Color noir Connector CON-M12 Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 18g Power Supply Laser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector - Illustration et dessin technique
- Affectation des connecteurs
Dimensions:
noir GND Stecker Pin Dimensions: Three Positif:
rouge 24V DC Stecker Pin Positif: 1 - Accessoires adaptés
MULTI-MOUNT-14(45x75)
Référence: 70114096
Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
