LH520-15-24(20X120)120-ADJ-NT
Numéro de commande: 70193190
Description du produit:

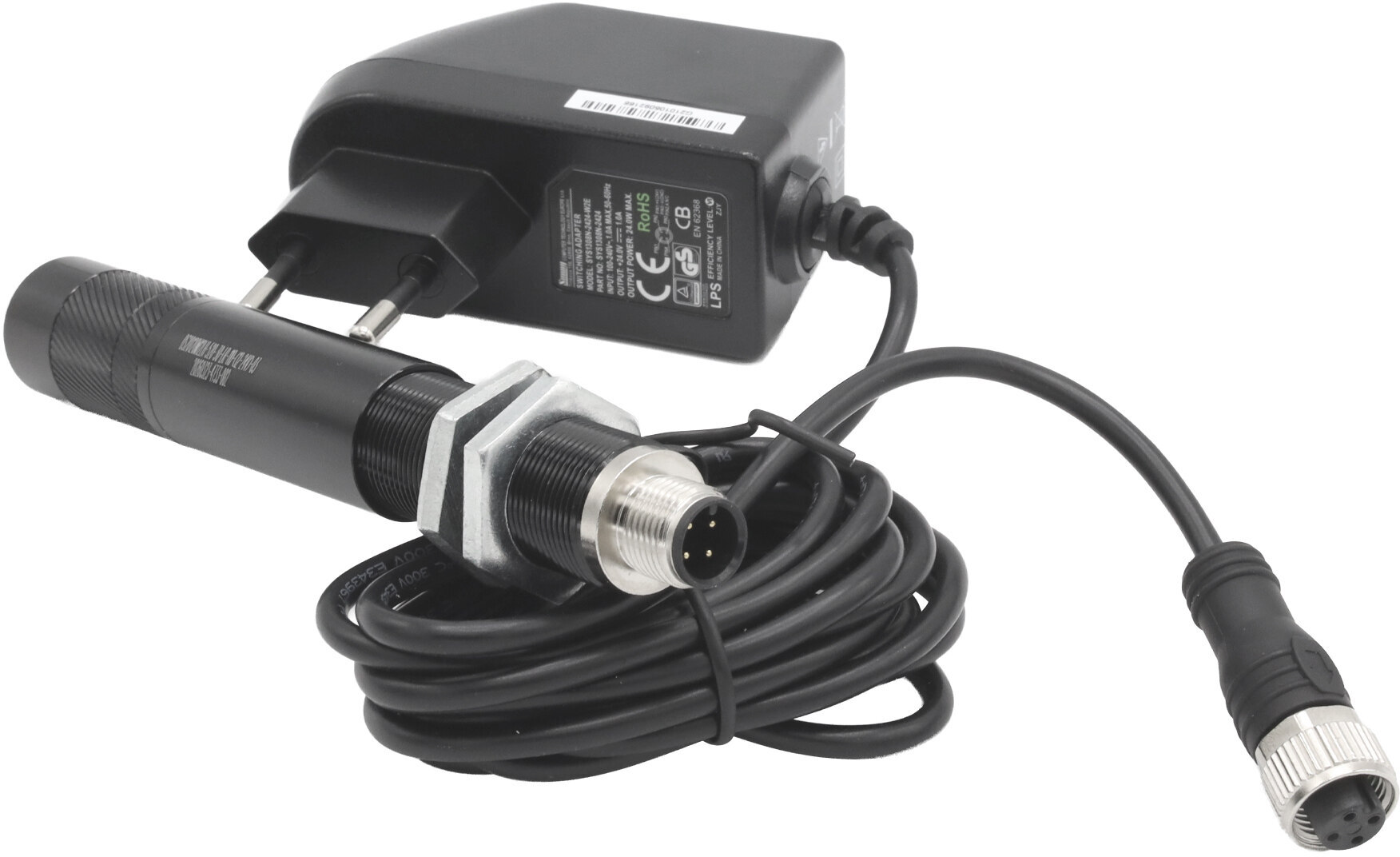

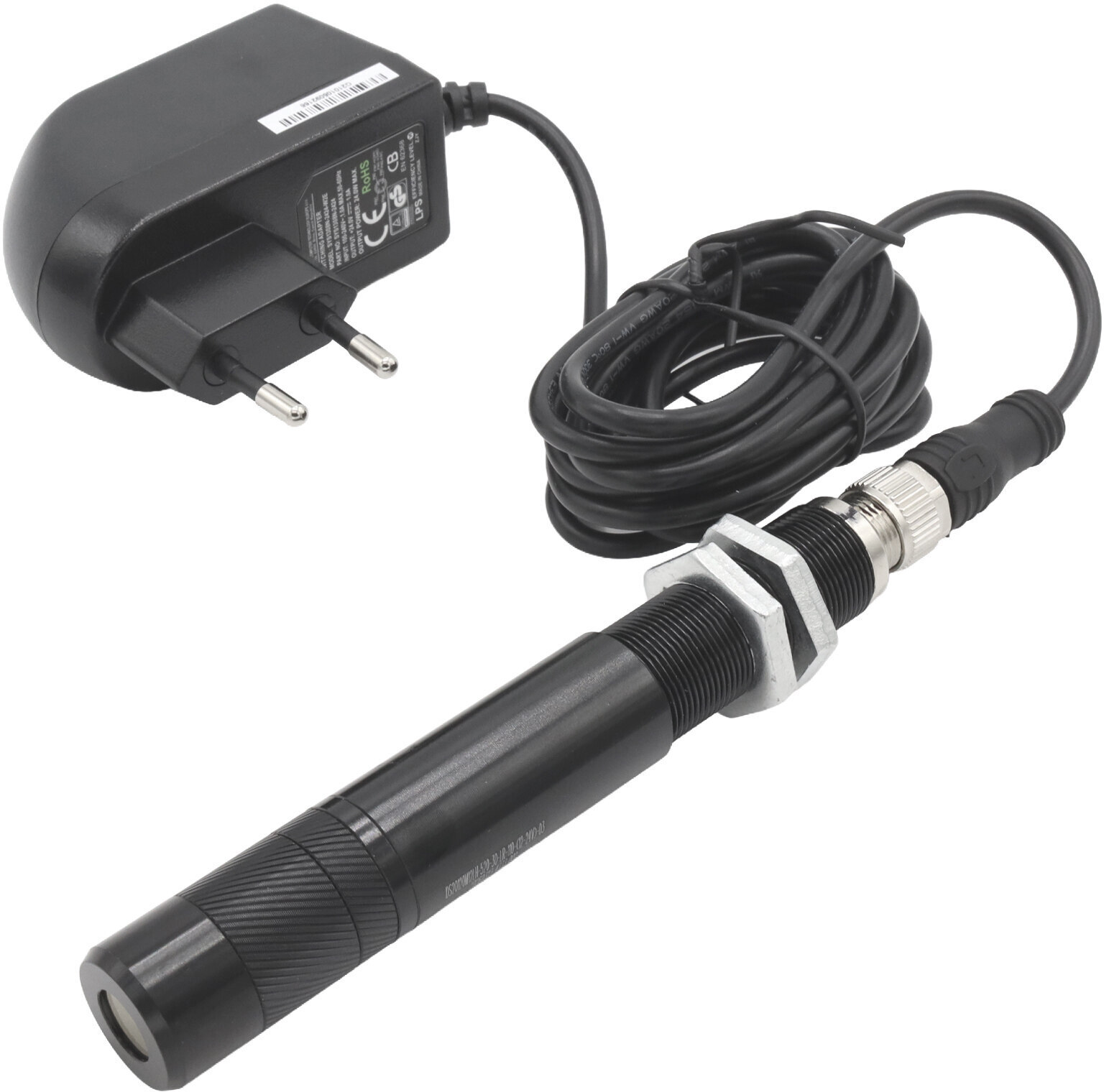

Adjustable, isolated line laser module, green, 120°, 520nm, 15mW, 12-24V DC, 20x120mm, class 2M, with M12 connector, including power supply
Description du produit:
Adjustable, isolated line laser module, green, 120°, 520nm, 15mW, 12-24V DC, 20x120mm, class 2M, with M12 connector, including power supply
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Ligne Wavelength 520nm
(grün)Optical Power 15mW Laser Class 2M Divergence 1mrad Fan Angle 120° Line Thickness Adjustable Operating Distance 2m Optics Lentille de verre revêtue d'AR Laser technology Single Mode Diode Protection Lens Ja Size Material aluminium Cable length 1820mm Focus réglable Output Aperture 5.5mm Potential of Housing isolé Lifetime >10000h Operating Voltage 12 - 26.4, typ 24V DC Operating Current 30 - 80, typ 50mA Housing Color noir Connector CON-M12 Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Power Supply included Ja Weight 79g Power Supply Laser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector Delivery Content Laser and power supply Protection Class IPIP 54 - Illustration et dessin technique
- Accessoires adaptés
NT-TT-12
Référence: 70122992
Power Supply with connector, Output: 12V DC, Input: 90-264V AC, 50-60Hz, Output Power: 30W max. with DC plug 2,5x5,5x9,5mm. DC Cord 1800mm
50.34 EUR- Downloads
