DDI635-1-24(12x45)-C500-NT

注文番号: 70115062

製品説明:

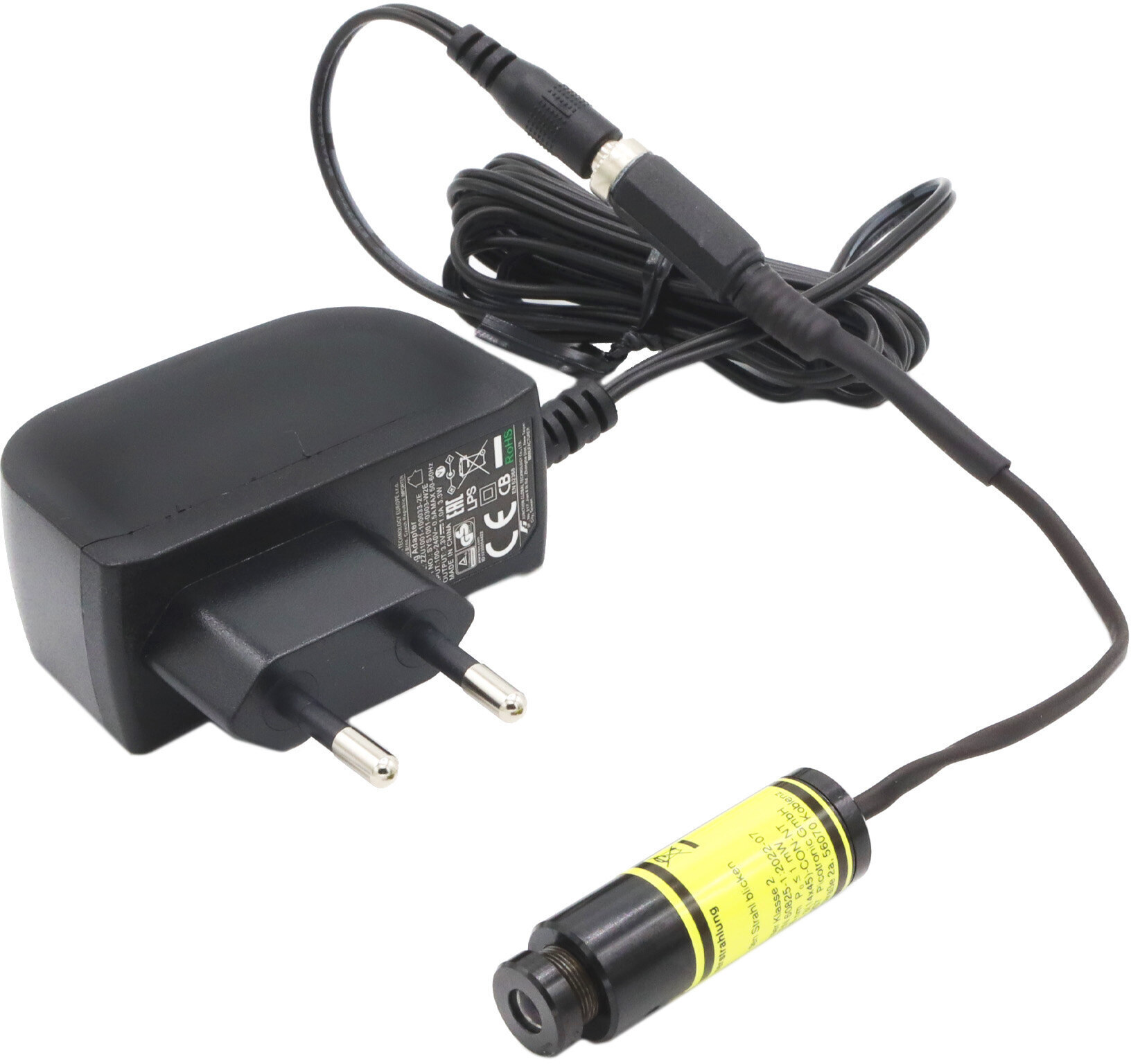

focusable isolated Dot lasermodule, red, 635nm, 1mW, 24V DC, 12x45mm, class 2

• glas lenses anti reflex coated
• isolated housing
• Laser Class 2
• Operating Voltage 24 V DC
• small package

DDI635-1-24(12x45)-C500-NT - Zeichnung Front

DDI635-1-24(12x45)-C500-NT - Zeichnung isometrisch

151,18
価格はユーロで、送料と付加価値税を除いて

価格が隠していない！

他の販売者は個人提供しかないので、私たちの公開の価格に驚きますか？私たちの計算基礎は透明さ、信用、顧客の無差別の扱いですから、見比べる可能性があります。

個:	10	50	100	250	500	1000
割引:	10%	15%	20%	25%	30%	35%

仕様書

Warranty	1Jahre
Beam Shape	ドット
Wavelength	635nm (rot)
Optical Power	1mW
Laser Class	2
Divergence	0.5mrad
Size of Laserdot	合わせできる
Operating Distance	10m
Optics	ガラス・レンズ　ARコーテッド
Laser technology	diode
Size
Material	aluminium
Cable length	500mm
Wire type	26AWG, 0,14mm²
Focus	合わせできる
Output Aperture	5mm
Potential of Housing	絶縁した
Lifetime	>5000h
Operating Voltage	21.6 - 26.4, typ 24V DC
Operating Current	10 - 25, typ 15mA
Connector	2.1 mm DC socket (+pole inner)
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Power Supply included	Ja
Weight	15g

写真と用器画
リード線設定
接地: 黒 GND
陽極: 赤 24V DC
適切なアクセサリー
LFNT-24-C
注文番号: 70115055
Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
31.85 EUR
