DG650-1-3(7x14)

Order number: 70103069

Product description:
Dot lasermodule, red, 650nm, 1mW, 3V DC, 7x14mm, class 2

• Operating Voltage 3 V DC
• Laser Class 2
• compact size
• fixed focus
• low power consumption
DG650-1-3(7x14) - Hauptbild
DG650-1-3(7x14) - Rendergrafik
DG650-1-3(7x14) - Zeichnung

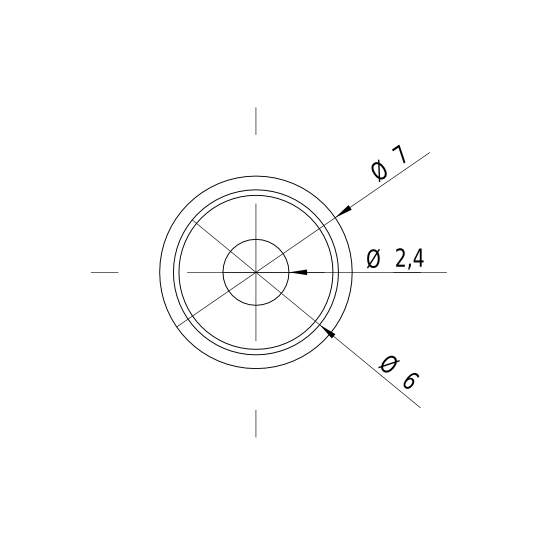

DG650-1-3(7x14) - Zeichnung Front

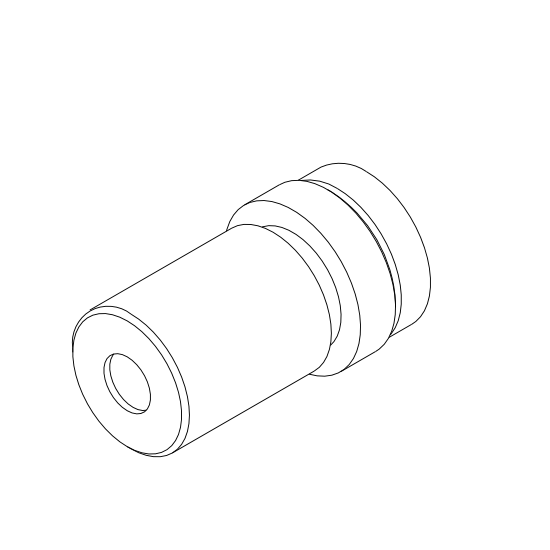

DG650-1-3(7x14) - Zeichnung isometrisch
Warnlabel 2
19,24
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength650nm
    (rot)
    Optical Power1mW
    Laser Class2
    Divergence0.8mrad
    Beam Diameter2.5mm
    Size of Laserdot<4..6mm@5m
    Operating Distance10m
    Opticsacryl lense
    Laser technologydiode
    Size
    MaterialBronze
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focuscollimated
    Output Aperture2.5mm
    Potential of HousingVDD(+)
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current10 - 30, typ 20mA
    Housing Colorbrass
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight1.5g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire5mm
  • Illustration and technical drawing
  • DG650-1-3(7x14) - Hauptbild
    DG650-1-3(7x14) - Rendergrafik
    DG650-1-3(7x14) - Zeichnung
    DG650-1-3(7x14) - Zeichnung Front
    DG650-1-3(7x14) - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blueblueGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
