MDA635-1-5-F(12x60)

Order number: 70113839

Product description:
modulated focusable isolated Dot lasermodule, red, 635nm, 1mW, 5V DC, 12x60mm, class 2

• Operating Voltage 5V DC
• Adjustable focus
• Laser Class 2
• Compact size
• Modulated

Specification

Beam Shape Dot
Wavelength 635nm
(red)
Optical Power 1mW
Laser Class 2
Divergence 0.1mrad
Size of Laserdot adjustable
Operating Distance 20m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø12mm 60mm
Material Aluminium
Cable length 100mm
Wire type Belden, Typ 1007, 26AWG
Focus adjustable
Output Aperture 5mm
Potential of Housing insulated
Max. Mod. Frequency 200kHz
Lifetime >5000h
Operating Voltage 4.5 - 5.5, typ 5V DC
Operating Current 20 - 60, typ 40mA
Housing Color black
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 15.5g
customs tarif number 90132000000
Stripping of wire 5mm

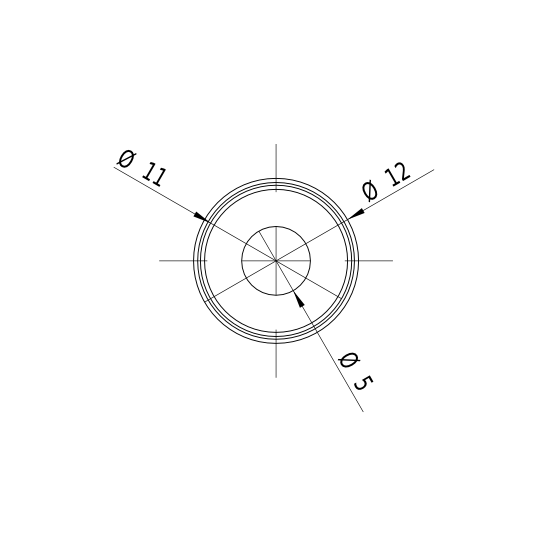

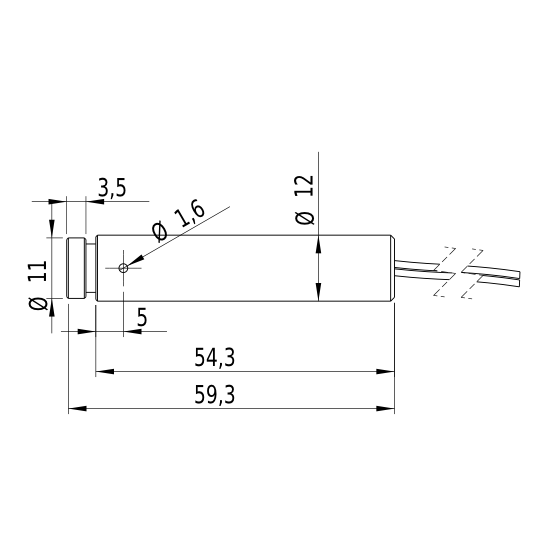

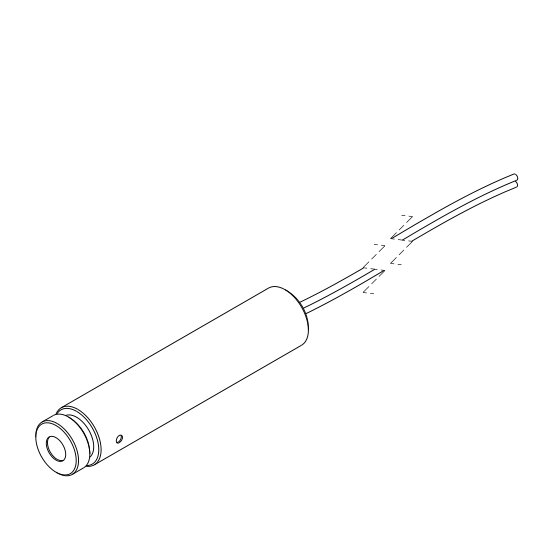

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blackblackGND
Positive:Cable color Positive: redred5V DC
Modulation:Cable color Modulate: yellowyellow200kHz
