DD532-5-3-F(12x55)-DOE

Order number: 70113921

Product description:
Basis für Mini Starprojektor
DD532-5-3-F(12x55)-DOE - Hauptbild
DD532-5-3-F(12x55)-DOE - Rendergrafik
DD532-5-3-F(12x55)-DOE - Zeichnung
DD532-5-3-F(12x55)-DOE - Zeichnung Front
DD532-5-3-F(12x55)-DOE - Zeichnung isometrisch
Warnlabel 3R
285,63
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength532nm
    (grün)
    Optical Power5mW
    Laser Class3R
    Divergence0.5mrad
    Size of Laserdotadjustable
    Operating Distance15m
    OpticsGlass lens AR coated
    Beam ModeTEM00
    Laser technologySolid State (YVO4+KTP)
    Stability+/- 20% @ 15-30°C
    Size
    Materialaluminium
    Cable length200mm
    Focusadjustable
    Output Aperture5mm
    Lifetime>10000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current150 - 450, typ 300mA
    Connector2.5 mm DC socket (GND pole inner)
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Weight22g
  • Illustration and technical drawing
  • DD532-5-3-F(12x55)-DOE - Hauptbild
    DD532-5-3-F(12x55)-DOE - Rendergrafik
    DD532-5-3-F(12x55)-DOE - Zeichnung

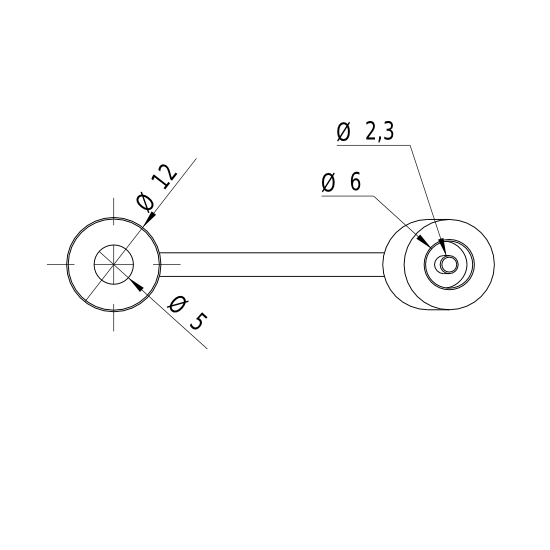

    DD532-5-3-F(12x55)-DOE - Zeichnung Front

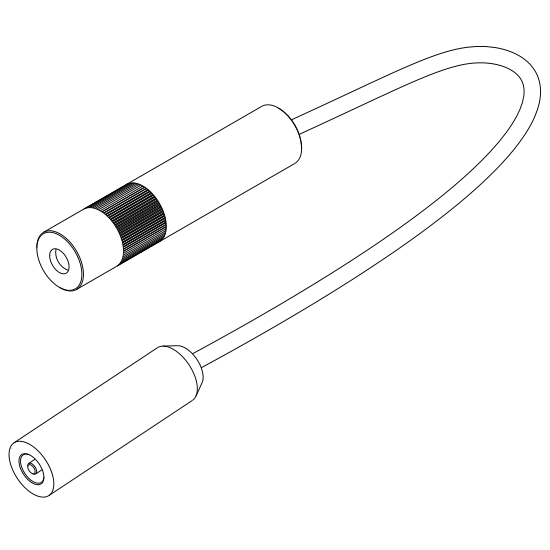

    DD532-5-3-F(12x55)-DOE - Zeichnung isometrisch
    Warnlabel 3R
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
