LE650-5-3(20x75)30-F500-C2000

Order number: 70106190

Product description:
isolated Line lasermodule, red, 30°, 650nm, 5mW, 3V DC, 20x75mm, class 1M

• Operating Voltage 3 V DC
• Laser Class 1M
• small fan angle
• uniform line thickness
• fixed focus

LE650-5-3(20x75)30-F500-C2000 - Rendergrafik

LE650-5-3(20x75)30-F500-C2000 - Zeichnung

LE650-5-3(20x75)30-F500-C2000 - Zeichnung Front

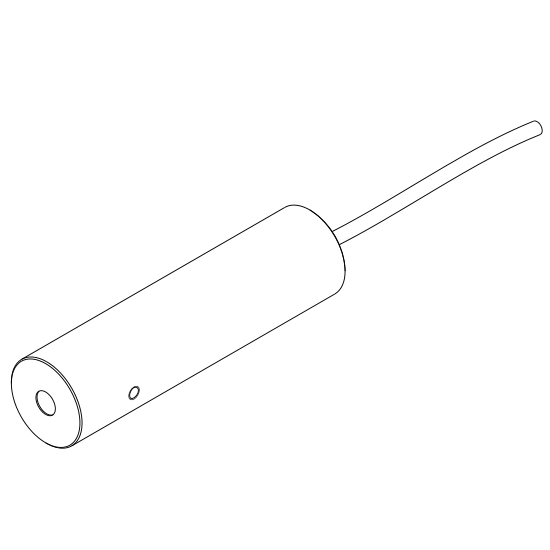

LE650-5-3(20x75)30-F500-C2000 - Zeichnung isometrisch

82,27
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	5mW
Laser Class	1M
Divergence	0.6mrad
Fan Angle	30°
Line Thickness	<0.5mm@0.5m
Operating Distance	0.5m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	2000mm
Wire type	22AWG, black, 3,6mm
Focus	fixed (500mm)
Output Aperture	5.5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	15 - 45, typ 30mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	78g
Power Supply	Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Stripping of wire	5mm
Stripping of cable cover	50mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: white 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
