LC650-16-3-F(14x55)

Order number: 70106336

Product description:
focusable isolated Line lasermodule, red, 90°, 650nm, 16mW, 3V DC, 14x55mm, class 2

• image processing
• adjustable focus
• Laser Class 2
• compact size
• uniform line thickness

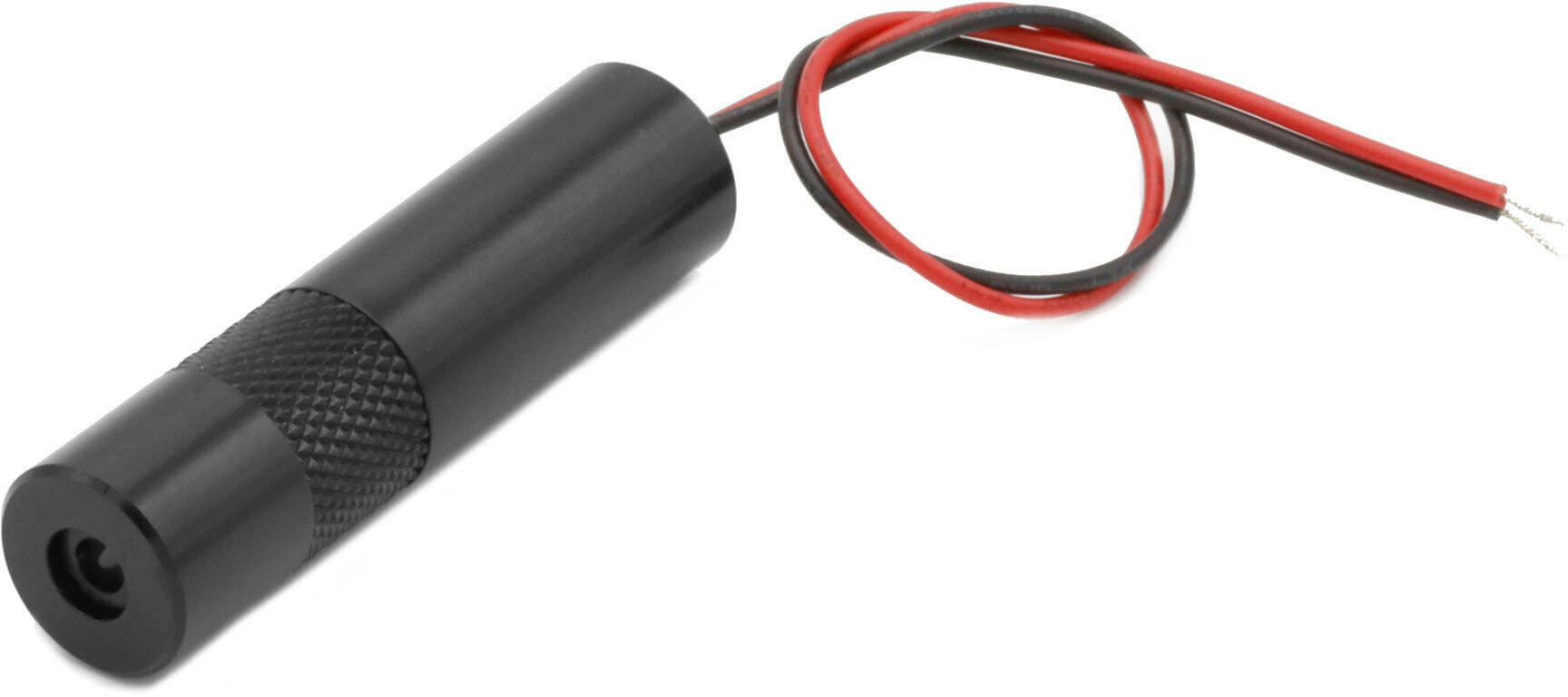

LC650-16-3-F(14x55) - Produktbild 1
LC650-16-3-F(14x55) - Hauptbild
LC650-16-3-F(14x55) - Rendergrafik
LC650-16-3-F(14x55) - Zeichnung
LC650-16-3-F(14x55) - Zeichnung Front
LC650-16-3-F(14x55) - Zeichnung isometrisch
Warnlabel 2
176,39
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power16mW
    Laser Class2
    Divergence0.4mrad
    Fan Angle90°
    Line Thicknessadjustable
    Operating Distance5m
    OpticsGlass lens AR coated
    Laser technologydiode
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture3.5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current40 - 115, typ 75mA
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight16.5g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    • Illustration and technical drawing
    • LC650-16-3-F(14x55) - Produktbild 1
      LC650-16-3-F(14x55) - Hauptbild
      LC650-16-3-F(14x55) - Rendergrafik
      LC650-16-3-F(14x55) - Zeichnung
      LC650-16-3-F(14x55) - Zeichnung Front
      LC650-16-3-F(14x55) - Zeichnung isometrisch
      Warnlabel 2
      Connector pin assignment
      Ground:Cable color Ground: blackblackGND
      Positive:Cable color Positive: redred3V DC
    • Matching accessories
    • AM1-1203SZAM1-1203SZ
      Order no.: 70114928
      DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
      16.72 EUR
