LC532-0.4-3-F(16x65)

Order number: 70104370

Product description:
focusable isolated Line lasermodule, green, 90°, 532nm, 0.4mW, 3V DC, 16x65mm, class 1

• Fan angle 90°
• Laser Class 1
• Operating Voltage 3V DC
• Adjustable focus
• For medical devices

Specification

Wavelength 532nm
(green)
Beam Shape Line
Optical Power 0.4mW
Laser Class 1
Divergence 0.4mrad
Fan Angle 90°
Line Thickness adjustable
Operating Distance 3m
Optics Glass lens AR coated
Beam Mode TEM00
Laser technology YVO4+KTP
Size Ø16mm 65mm
Material Aluminium
Cable length 100mm
Focus adjustable
Output Aperture 5mm
Potential of Housing insulated
Lifetime >5000h
Operating Voltage 2.7 - 3.3, typ 3V DC
Operating Current 100 - 300, typ 200mA
Operating Temperature 15°C - 30°C
Storage Temperature -40°C - 80°C
Warm up time <15min
Weight 38g
customs tarif number 90132000000

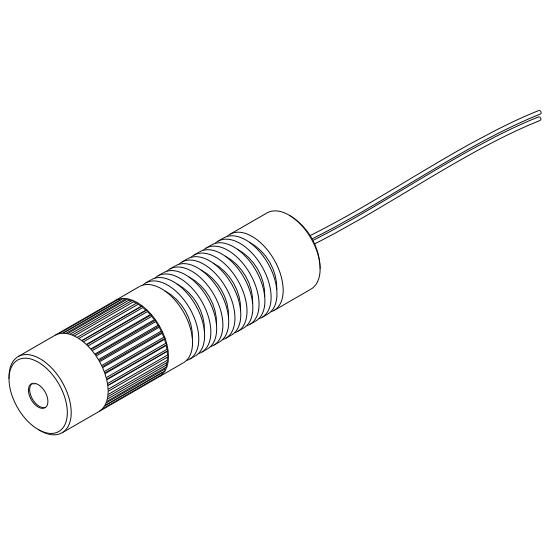

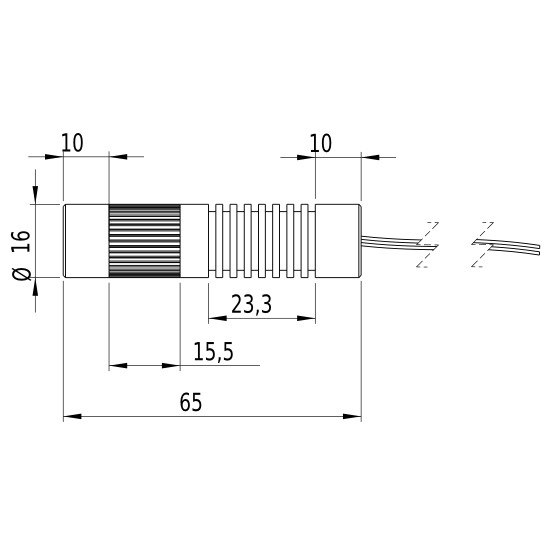

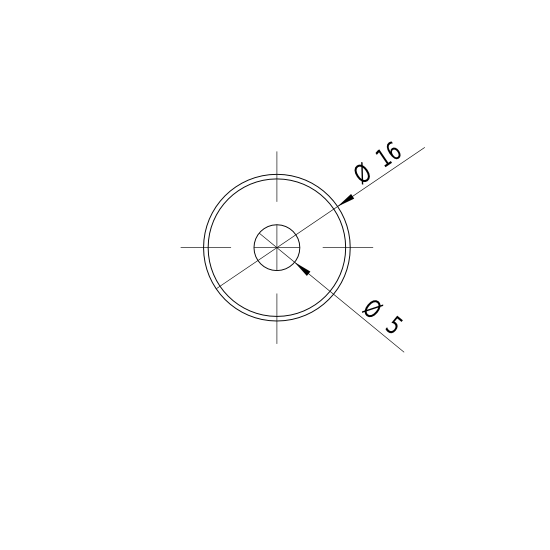

Illustration and technical drawing

Connector pin assignment
Positive:Cable color Positive: blackblack3V DC
212.05 EURAll prices in euros plus VAT at current rate and shipping costs.
