BALLHEAD-MOUNT-22(25x80)

Order number: 70117929

Product description:

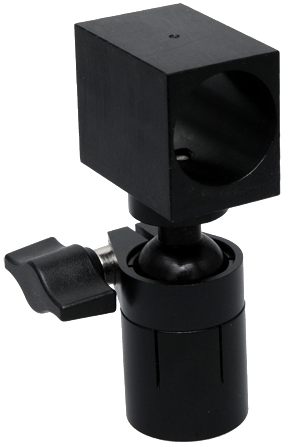

Bracket for lasermodules D=22mm, 1/4'' UNC thread in base plate for mounting

BALLHEAD-MOUNT-22(25x80) - Produktbild 2

BALLHEAD-MOUNT-22(25x80) - Produktbild 3

66,30
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Material	aluminium
Housing Color	black
Operating Temperature	-20°C - 40°C
Storage Temperature	-50°C - 50°C
Weight	84g
Total Height (h1)	80mm
Height to Laseraxis (h2)	67mm
Height of Base (h3)	34.5mm
Mount Diameter (d1)	Ø22mm
Diameter of Base (d2)	Ø25mm
Width of Mount (b)	24mm
Height of Mount (g)	29mm
Height of Mount Head (k)	46mm
Depth of Mount (t)	36mm
Angle of Rotation Alpha (α)	360°
Angle of Rotation Beta (β)	±40°
Angle of Rotation Gamma (γ)	±40°
