DOE213-520-5-3(16x90)-NT

Order number: 70119480

Product description:

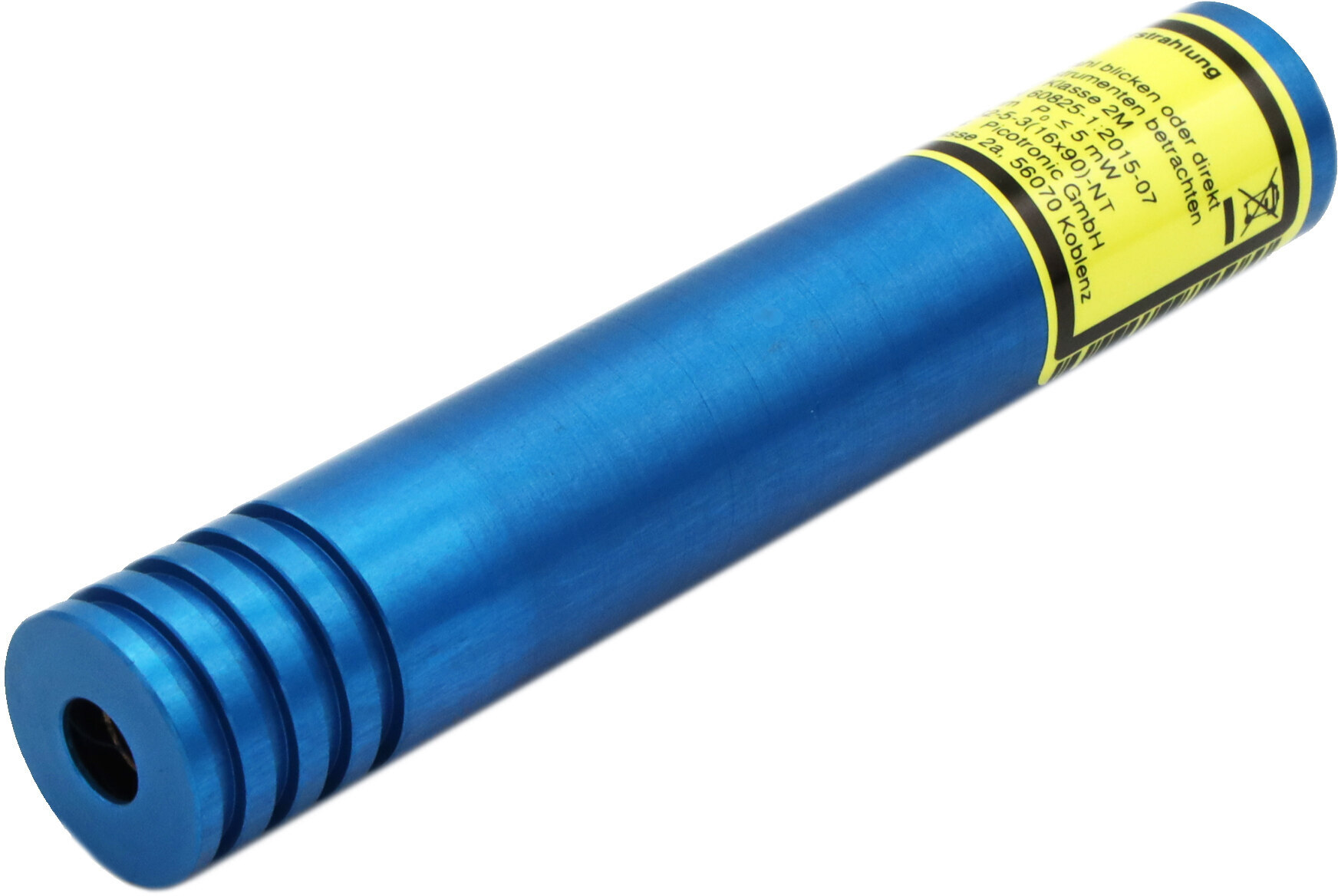

DOE Laser Module 520nm, green, 5mW, DOE 11 Lines (Square Area) - PC - 8x1,2mm 42° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R213

DOE213-520-5-3(16x90)-NT - DOE-Vermaßungsskizze

436,89
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	DOE
Wavelength	520nm (grün)
Optical Power	5mW
Laser Class	2M
Divergence	0.7mrad
Fan Angle	37°
Operating Distance	2m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Protection Lens	Ja
Size	Ø16mm 90mm
Material	aluminium
Cable length	1360mm
Focus	fixed
Output Aperture	6mm
Potential of Housing	VDD(+)
Lifetime	>6000h
Operating Voltage	3V DC
Operating Current	80 - 200, typ 150mA
Housing Color	cyan
Connector	2.5 mm DC plug (GND pole inner)
Operating Temperature	-10°C - 60°C
Storage Temperature	-40°C - 80°C
Power Supply included	Ja
Weight	43g
Power Supply	Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
Alpha	41.8°
Beta	30.3°
Gamma	3°
Delta	30.3°
a	76.3mm
b	54.1mm
c	5.4mm
d	54.1mm
Diameter (without holder)	8mm
Material	PC
internal modulation frequency	1kHz

Illustration and technical drawing
Matching accessories
MULTI-MOUNT-16(45x75)
Order no.: 70112504
Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
61.26 EUR
Downloads
Data sheet Fax order form
