MDH808-600-5(45x100)

Order number: 70119695

Product description:
Modulated focusable Dot lasermodule, infrared, 808nm, 600mW, 5V DC, 45x100mm, class 4

• Laser Class 4
• adjustable focus
• High Power
• Operating Voltage 5 V DC
• small laser head

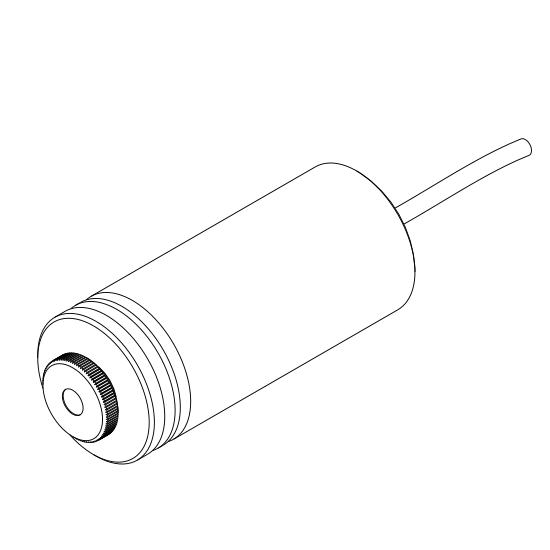

MDH808-600-5(45x100) - Zeichnung isometrisch

890,67
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Dot
Wavelength	808nm (infrarot)
Optical Power	600mW
Laser Class	4
Divergence	1mrad
Size of Laserdot	adjustable
Operating Distance	10m
Optics	Glass lens AR coated
Laser technology	diode
Size	Ø45mm 100mm
Material	aluminium
Cable length	500mm
Focus	adjustable
Output Aperture	6mm
Potential of Housing	VDD(+)
Max. Mod. Frequency	1kHz
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	450 - 1350, typ 900mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	250g

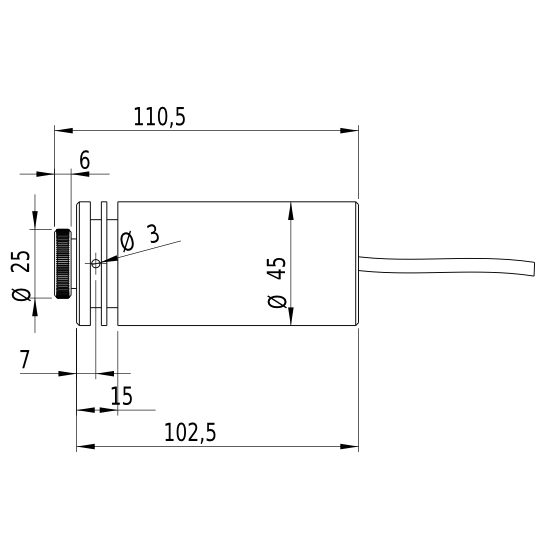

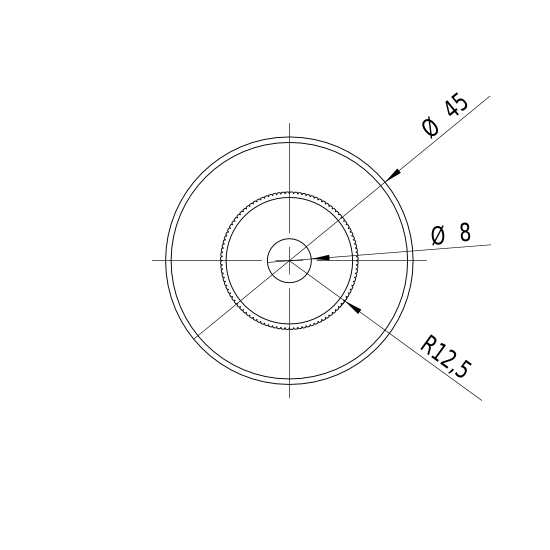

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 5V DC
Modulation: yellow 1kHz
