LE405-1-3(14x45)90DEG-F150

Order number: 70124620

Product description:
Isolated line lasermodule, blue, 90°, 405nm, 1mW, 3V DC, 14x45mm, class 1M, focus f=150mm

LE405-1-3(14x45)90DEG-F150 - Rendergrafik

LE405-1-3(14x45)90DEG-F150 - Zeichnung Front

LE405-1-3(14x45)90DEG-F150 - Zeichnung isometrisch

201,60
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	405nm (blau)
Optical Power	1mW
Laser Class	1
Divergence	0.6mrad

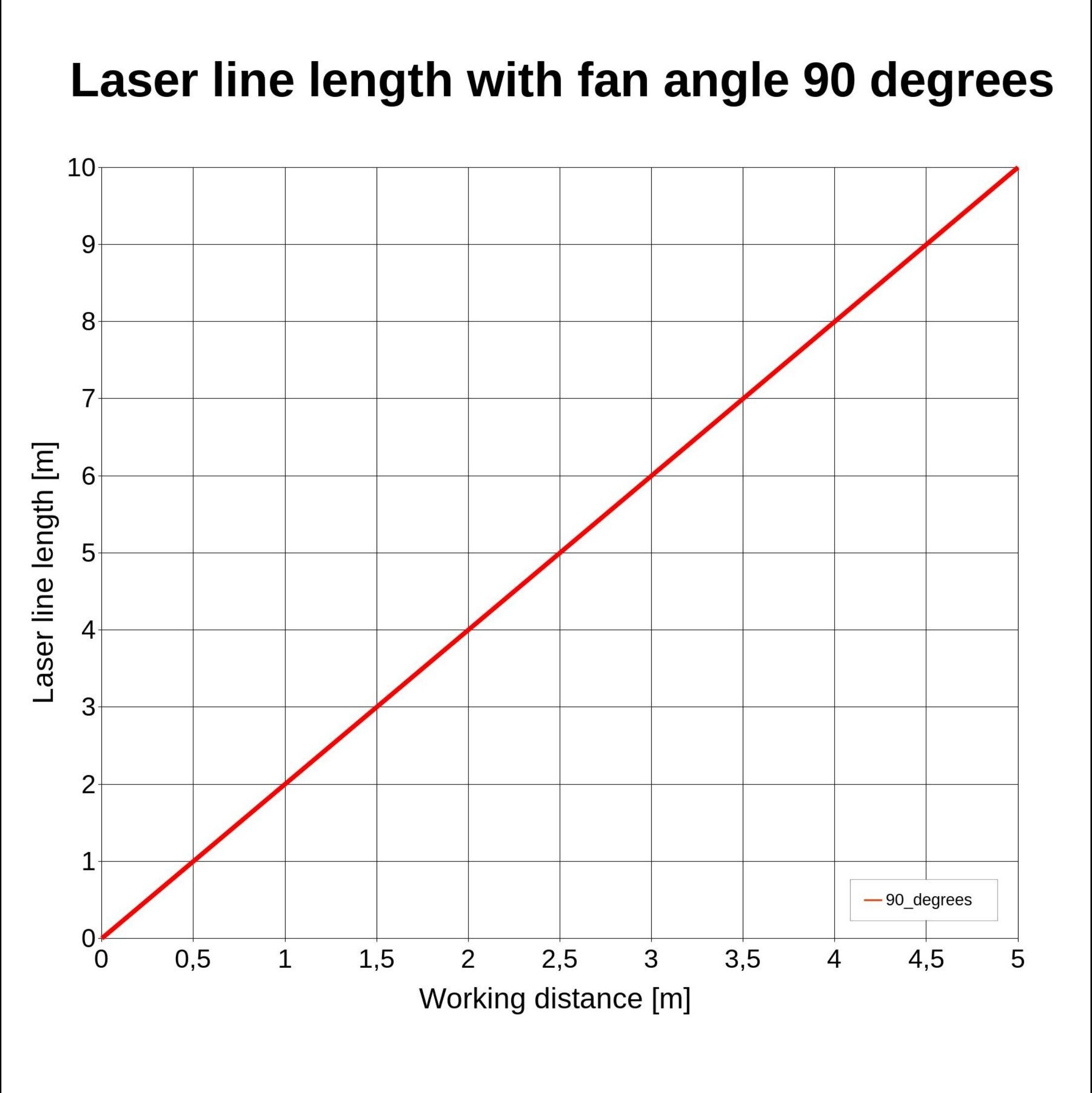

Fan Angle	90°
Line Thickness	<0.8mm@150mm
Operating Distance	0.15m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	fixed (150mm)
Output Aperture	5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	30 - 90, typ 60mA
Housing Color	black
Operating Temperature	-10°C - 60°C
Storage Temperature	-40°C - 80°C
Weight	10g
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
