DI650-1-5(8x21)-AP-C
Order number: 70125542
Product description:

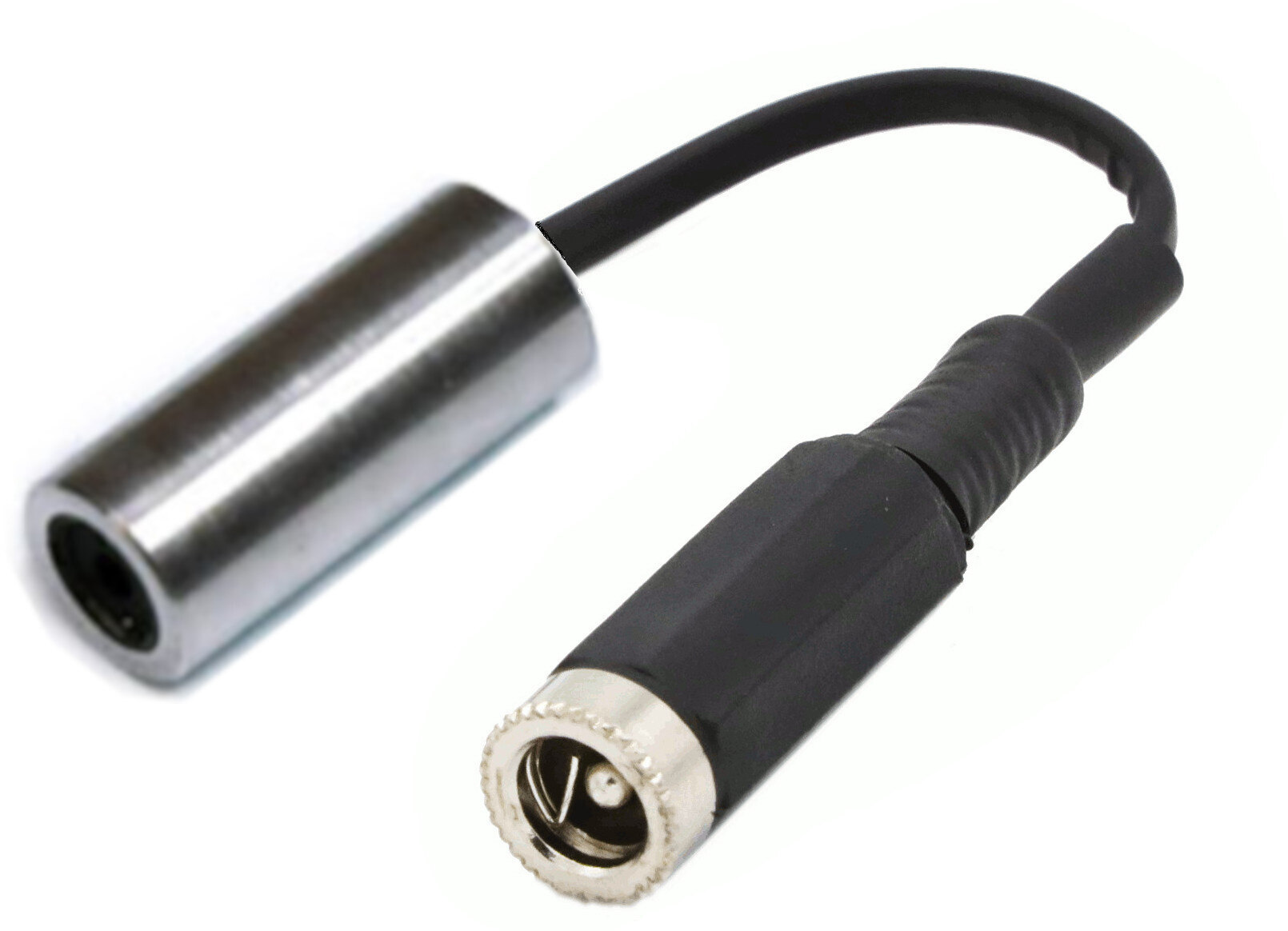

isolated Dot lasermodule, red, 650nm, 1mW, 5V DC, 8x21mm, class 2, axial parallel, incl. connector
• axial parallel
• low power consumption
• compact size
• Laser Class 2
• Operating Voltage 5 V DC
Product description:
isolated Dot lasermodule, red, 650nm, 1mW, 5V DC, 8x21mm, class 2, axial parallel, incl. connector
• axial parallel
• low power consumption
• compact size
• Laser Class 2
• Operating Voltage 5 V DC
-F700-AP.png "DI650-1-5(8x21)-AP-C - Zeichnung")
-F700-AP.png "DI650-1-5(8x21)-AP-C - Zeichnung Front")
-F700-AP.png "DI650-1-5(8x21)-AP-C - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 650nm
(rot)Optical Power 1mW Laser Class 2 Divergence 1.5mrad Beam Diameter 2mm Size of Laserdot <3..5mm@5m Operating Distance 10m Optics Glass lens AR coated Laser technology Single Mode Diode Axial Divergence ±0.1° Size Ø8mm 21mm Material aluminium Cable length 100mm Wire type 26AWG, 0,14mm² Focus collimated Output Aperture 2.5mm Potential of Housing insulated Lifetime >5000h Operating Voltage 4.5 - 5.5, typ 5V DC Operating Current 15 - 40, typ 23mA Housing Color silver Connector 2.1 mm DC plug (GND pole inner) Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 3g Power Supply Power Supply, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max, Connector 2,1x5,5x9,5mm center negative - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Stecker Pin Ground: Innen Positive:
red 5V DC Stecker Pin Positive: Außen - Matching accessories
MULTI-MOUNT-08(45x75)
Order no.: 70112481
Mount for Lasermodul 8mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
