MLE520-10-4.5(15x34)

Order number: 70126006

Product description:
Line lasermodule, direct green Laserdiode, 520nm, 120°, 10mW, 4.5V DC, 15x34mm, class 1M, internal modulation

• Operating Voltage 4.5 V DC
• compact size
• Laser Class 1M
• High Power
• fixed focus

361,26
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	520nm (grün)
Optical Power	10mW
Laser Class	1M
Divergence	0.6mrad
Line Thickness	<2.5mm@5m
Operating Distance	5m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Stability	+/- 3% @ -10-50°C
Size
Material	aluminium
Cable length	150mm
Wire type	26AWG, 0,14mm²
Focus	collimated
Output Aperture	3.5mm
Potential of Housing	insulated
Lifetime	>6000h
Operating Voltage	3 - 6, typ 4.5V DC
Operating Current	100 - 200, typ 150mA
Housing Color	black
Operating Temperature	-10°C - 60°C
Storage Temperature	-40°C - 80°C
Weight	5g
internal modulation frequency	5kHz
Stripping of wire	5mm

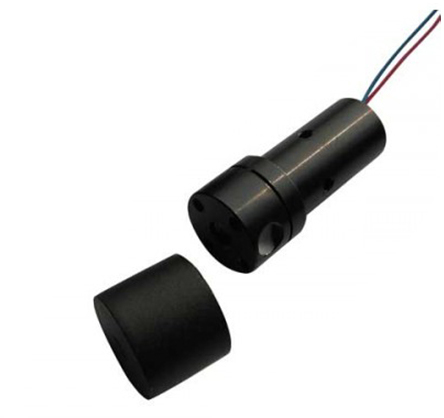

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 4.5V DC
