LD635-25-24(22x70)-C200-CON

Order number: 70126204

Product description:
isolated Line lasermodule, red, 90°, 635nm, 25mW, 24V DC, 22x70mm, class 2M, cable 200mm, M12x1 Connector

• Operating Voltage 24 V DC
• Laser Class 2M
• Uniform line thickness
• High Power
• Small laser head

Specification

Beam Shape Line
Wavelength 635nm
(red)
Optical Power 25mW
Laser Class 2M
Divergence 0.5mrad
Fan Angle 90°
Line Thickness <2.5mm@5m
Operating Distance 7m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø22mm 70mm
Material Aluminium
Cable length 200mm
Wire type 18AWG, black, 3,6mm
Focus fixed
Output Aperture 5.5mm
Potential of Housing insulated
Lifetime >10000h
Operating Voltage 21.6 - 26.4, typ 24V DC
Operating Current 100 - 200, typ 140mA
Housing Color black
Connector CON-M12
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 98g
customs tarif number 90132000000

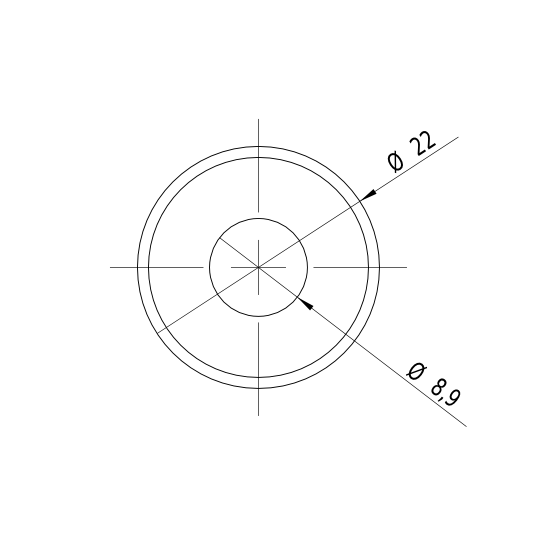

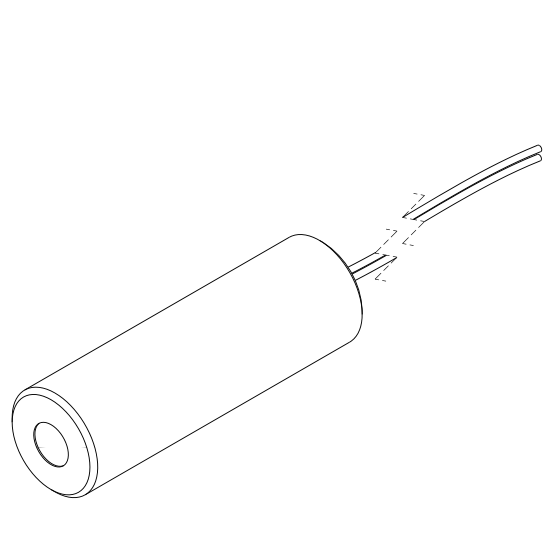

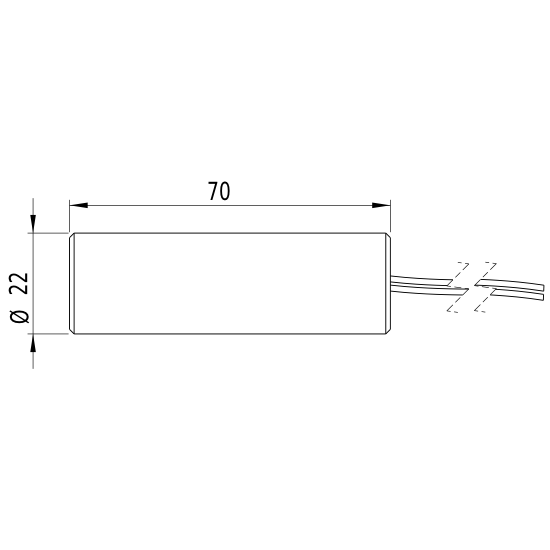

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: whitewhiteGND
Stecker Pin Ground: 3
Positive:Cable color Positive: redred24V DC
Stecker Pin Positive: 1
