RP-LH650-16-3(12x38)60-PL

Order number: 70127096

Product description:
Remaining Stock: isolated Line lasermodule, red, 60°, 650nm, 16mW, 3V DC, 12x38mm, class 2

• High Power
• Protection lens
• Laser Class 2
• Operating Voltage 3V DC
• Fixed focus

Specification

Wavelength 650nm
(red)
Beam Shape Line
Optical Power 16mW
Laser Class 2
Divergence 1mrad
Fan Angle 60°
Line Thickness <2mm@3m
Operating Distance 5m
Optics Glass lens AR coated
Laser technology Diode
Protection Lens Ja
Size Ø12mm 38mm
Material Aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Focus fixed
Output Aperture 5.5mm
Potential of Housing insulated
Lifetime >5000h
Operating Voltage 2.7 - 3.3, typ 3V DC
Operating Current 60mA
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 18g
customs tarif number 90132000000

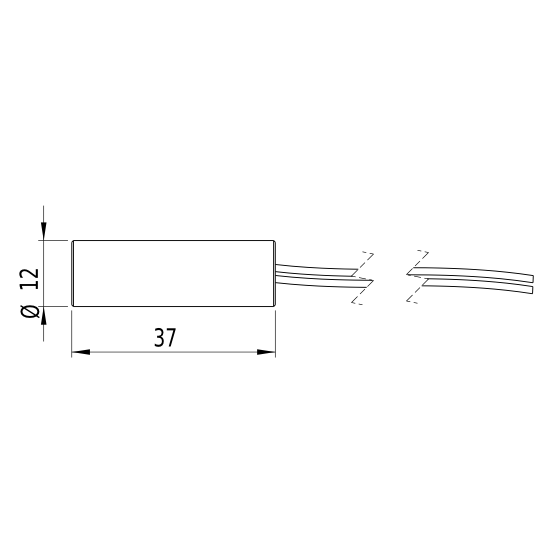

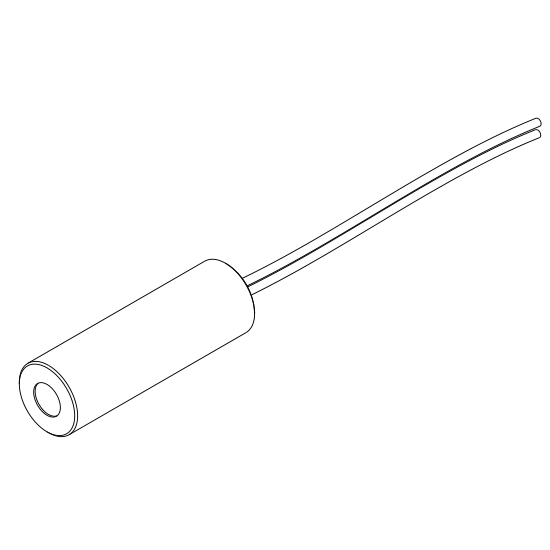

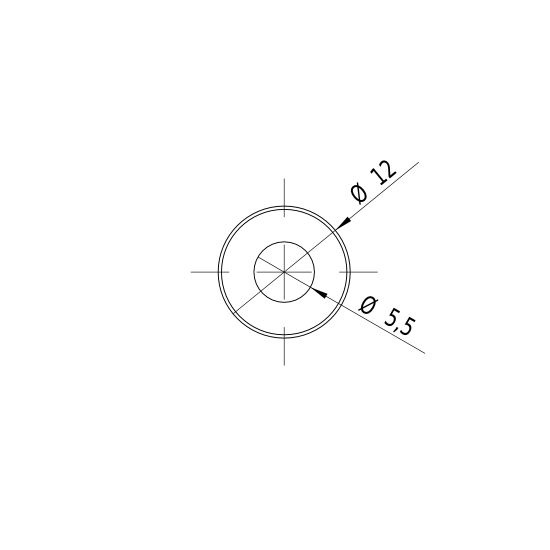

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blackblackGND
Positive:Cable color Positive: redred3V DC
77.48 EURAll prices in euros plus VAT at current rate and shipping costs.
