LH520-17-24(20x80)-F3000-PWL-M12

Order number: 70130508

Product description:

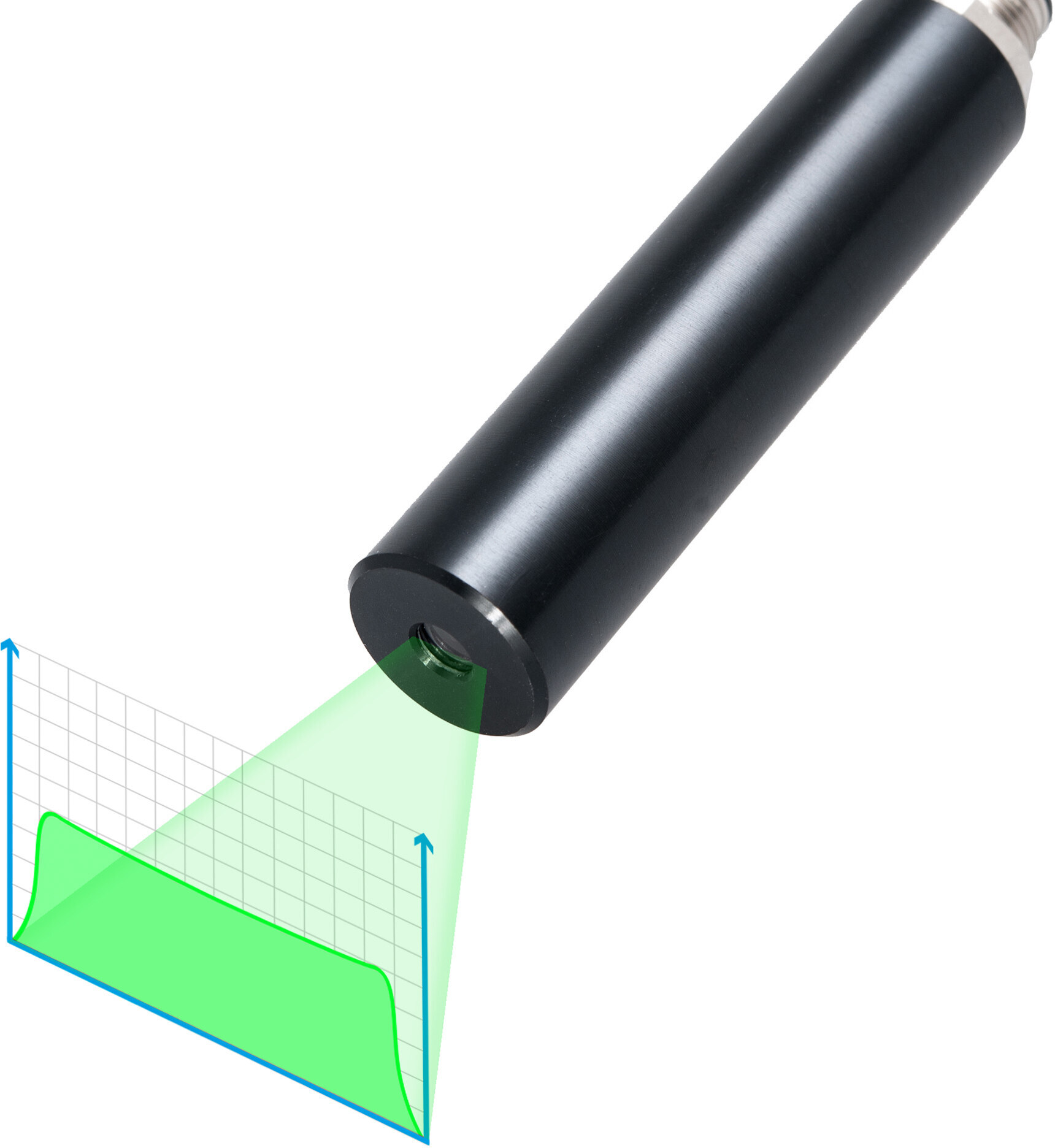

isolated Line lasermodule, green, 90°, 520nm, 17mW, 24V DC, 20x80mm, class 2M, with connector M12 without cable, uniform line distribution with powell lens

• Operating Voltage24 V DC
• Isolated housing
• Laser Class 2M
• small laser head
• with powell lens
LH520-17-24(20x80)-F3000-PWL-M12 - Produktbild 1
LH520-17-24(20x80)-F3000-PWL-M12 - Hauptbild
LH520-17-24(20x80)-F3000-PWL-M12 - Produktbild 2
Warnlabel 2M
823,45
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength520nm
    (grün)
    Optical Power17mW
    Laser Class2M
    Divergence1mrad
    Fan Angle90°
    Line Thickness<1.5mm@3m
    Operating Distance3m
    OpticsPowell Lens
    Laser technologySingle Mode Diode
    Protection LensJa
    Size
    Materialaluminium
    Focusfixed (3000mm)
    Output Aperture5.5mm
    Potential of Housinginsulated
    Lifetime>6000h
    Operating Voltage21.6 - 26.4, typ 24V DC
    Operating Current30 - 70, typ 50mA
    Housing Colorblack
    ConnectorCON-M12
    Operating Temperature-10°C - 60°C
    Storage Temperature-40°C - 80°C
    Weight52g
    Protection ClassIPIP 64
  • Illustration and technical drawing
  • LH520-17-24(20x80)-F3000-PWL-M12 - Produktbild 1
    LH520-17-24(20x80)-F3000-PWL-M12 - Hauptbild
    LH520-17-24(20x80)-F3000-PWL-M12 - Produktbild 2
    Warnlabel 2M
  • Matching accessories
  • LFNT-24-CLFNT-24-C
    Order no.: 70115055
    Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    31.85 EUR
