LB660-30-24(15x60)30-ADJ-PWL

Order number: 70132236

Product description:

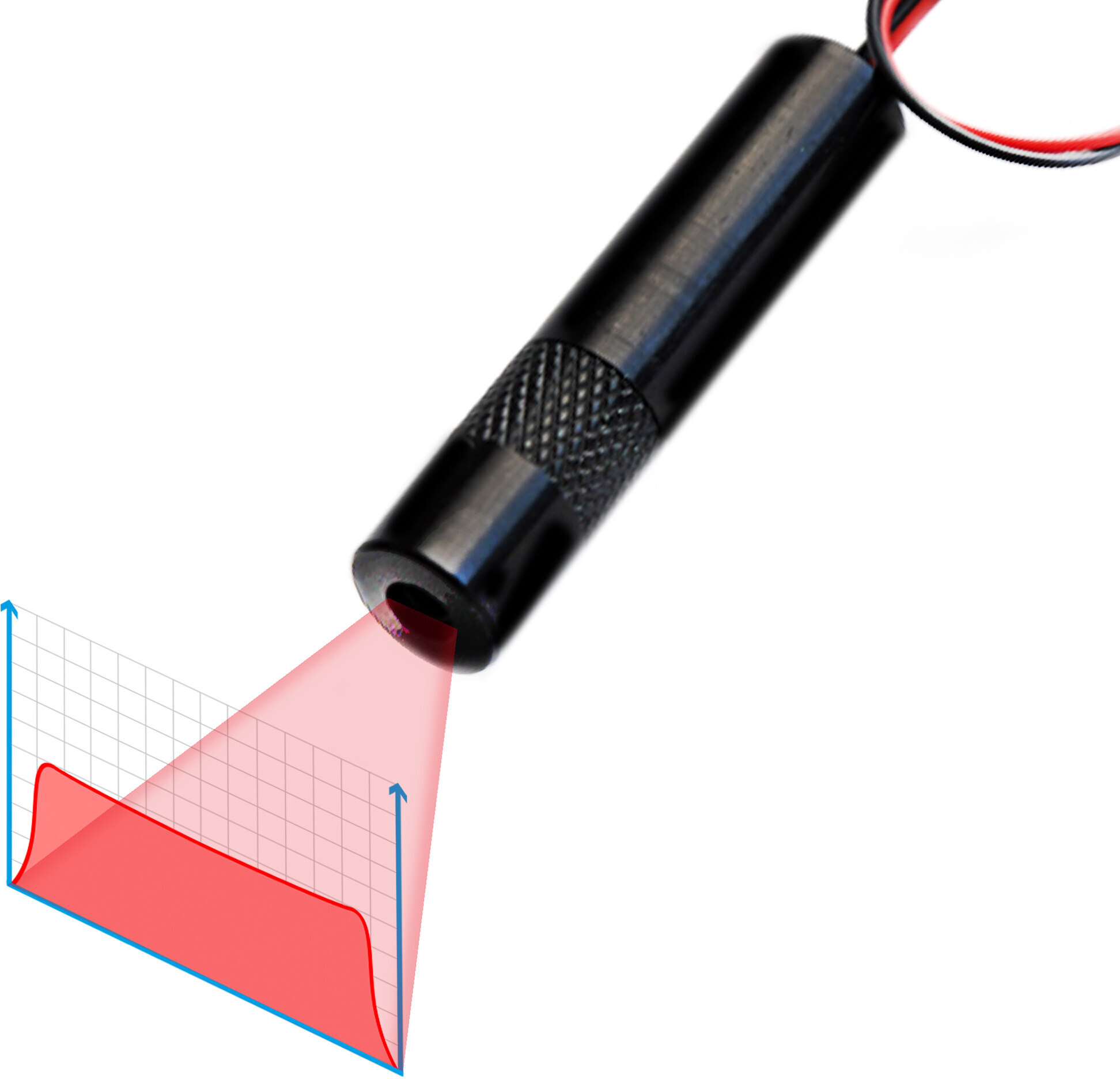

Adjustable isolated line Laser, uniform line, red, 660nm, 30°, 30mW, 24V DC, 15x60mm, laser class 2M, with Powell Lens

• Powell Lens
• Uniform Line
• High Quality
• Imagine Processing

Specification

Beam Shape Line
Wavelength 660nm
(red)
Optical Power 30mW
Laser Class 2M
Divergence 0.3mrad
Fan Angle 30°
Line Thickness adjustable
Operating Distance 10m
Optics Powell Lens
Laser technology Single Mode Diode
Opt. Power Stability at const. Temp. <5%
Stability <10%@-10°C + 60°C
Size Ø15mm 60mm
Material Aluminium
Cable length 130mm
Wire type 26AWG, UL, isolated
Focus adjustable
Output Aperture 4.2mm
Potential of Housing insulated
Lifetime >10000h
Operating Voltage 22.4 - 25.4, typ 24V DC
Operating Current 12 - 270, typ 50mA
Housing Color black
Operating Temperature -10°C - 70°C
Storage Temperature -40°C - 85°C
Weight 15g
customs tarif number 90132000000
Stripping of wire 3mm
Stripping of cable cover 10mm

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: whitewhiteGND
Positive:Cable color Positive: redred24V DC
380.83 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%

Matching accessories

MULTI-MOUNT-15(45x75)
Order no.: 70114102
Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm
49.99 EUR
LFNT-24-C
Order no.: 70115055
Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
23.72 EUR
LABEL-DIN-CLASS2M-DE
Order no.: 70114201
Safety Label german DIN EN 60825, Class 2M, 38x23mm, yellow, PET
0.46 EUR
LABEL-DIN-CLASS2M-EN
Order no.: 70119596
Safety Label english DIN EN 60825, Class 2M, 38x23mm, yellow, PET
0.46 EUR
