LC532-5-24-F(20x80)60DEG
Order number: 70132892
Product description:
isolated line laser, green, 532nm, 60°, 5mW, 24 V DC, 20x80mm, class 1, adjustable focus
• image processing
• uniform line thickness
• Laser Class 1
• Operating Voltage 24 V DC
• adjustable focus
Product description:
isolated line laser, green, 532nm, 60°, 5mW, 24 V DC, 20x80mm, class 1, adjustable focus
• image processing
• uniform line thickness
• Laser Class 1
• Operating Voltage 24 V DC
• adjustable focus

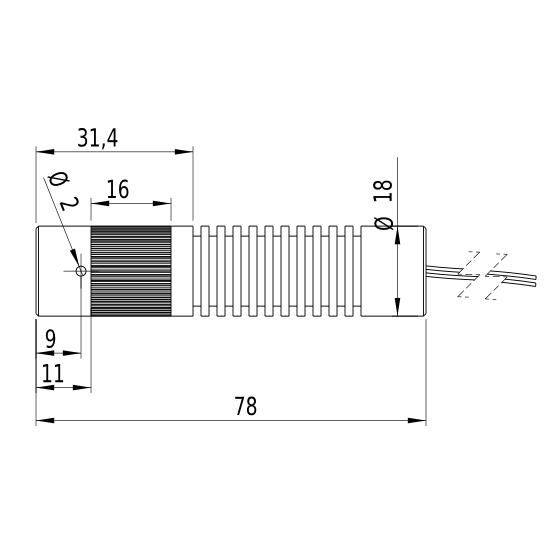

.png "LC532-5-24-F(20x80)60DEG - Zeichnung")

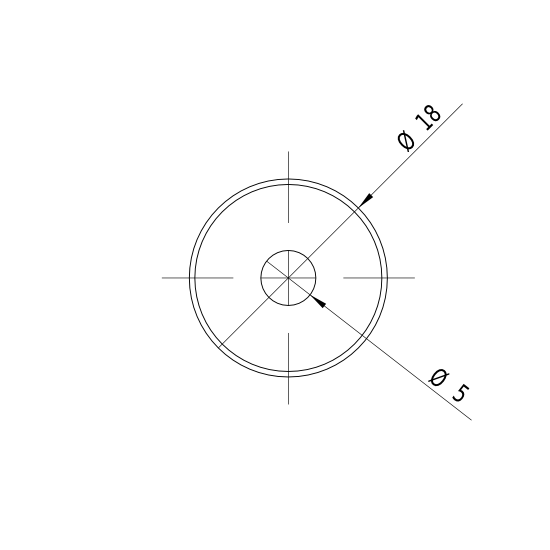

.png "LC532-5-24-F(20x80)60DEG - Zeichnung Front")

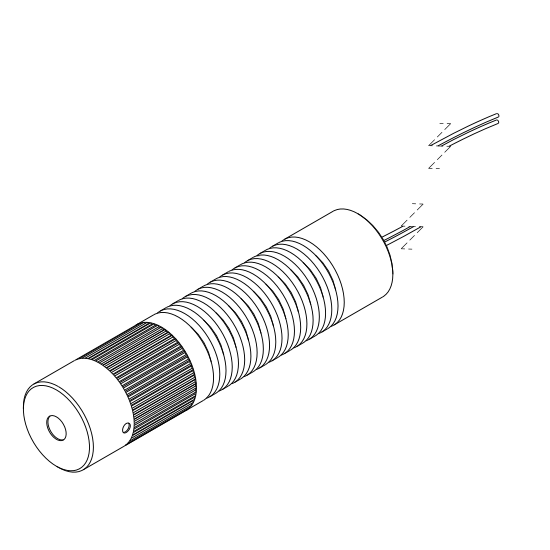

.png "LC532-5-24-F(20x80)60DEG - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Line Wavelength 532nm
(grün)Optical Power 5mW Laser Class 1 Divergence 0.4mrad Fan Angle 60° Line Thickness adjustable Operating Distance 3m Optics Glass lens AR coated Beam Mode TEM00 Laser technology Solid State (YVO4+KTP) Stability +/- 10% @ 15-30°C Size Ø20mm 80mm Material aluminium Cable length 120mm Wire type Belden, Typ 1007, 26AWG Focus adjustable Output Aperture 5mm Potential of Housing insulated Lifetime >5000h Operating Voltage 21.6 - 26.4, typ 24V DC Operating Current 5 - 80, typ 40mA Housing Color black Operating Temperature 15°C - 30°C Storage Temperature -40°C - 80°C Warm up time <15min Weight 33g Stripping of wire 5mm - Illustration and technical drawing
- Connector pin assignment
Ground:
blue GND Positive:
red 24V DC - Matching accessories
MULTI-MOUNT-20(45x75)
Order no.: 70112511
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
