LB650-5-3(22x120)10DEG-AP-F1000

Order number: 70135084

Product description:
isolated Line lasermodule, red, 10°, 650nm, 5mW, 3V DC, 22x120mm, class 2M, with focus at 1000mm

• Operating Voltage 3 V DC
• Laser Class 2M
• fixed focus
• low power consumption
• with battery
LB650-5-3(22x120)10DEG-AP-F1000 - Produktbild 1
LB650-5-3(22x120)10DEG-AP-F1000 - Hauptbild
LB650-5-3(22x120)10DEG-AP-F1000 - Produktbild 2
LB650-5-3(22x120)10DEG-AP-F1000 - Rendergrafik

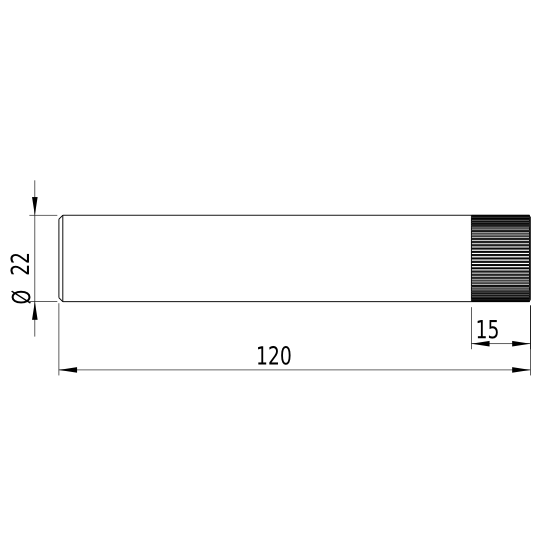

LB650-5-3(22x120)10DEG-AP-F1000 - Zeichnung

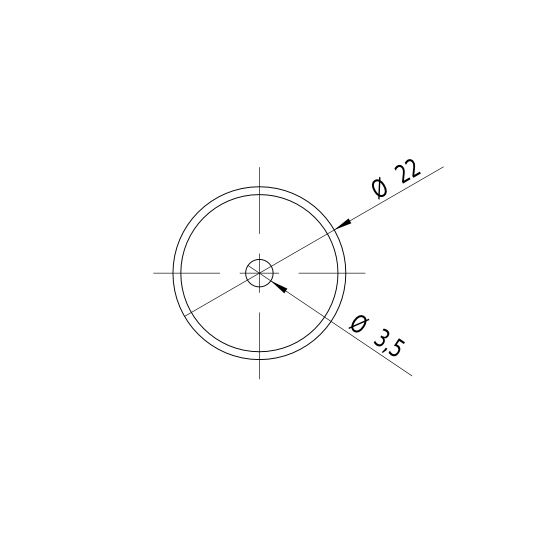

LB650-5-3(22x120)10DEG-AP-F1000 - Zeichnung Front

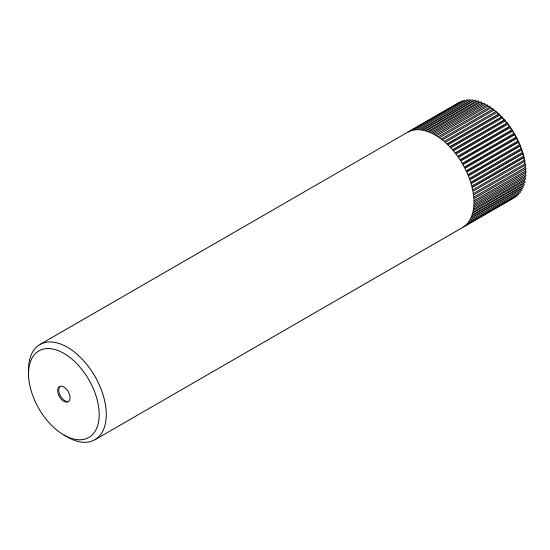

LB650-5-3(22x120)10DEG-AP-F1000 - Zeichnung isometrisch
Warnlabel 2M
127,65
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 650nm
    (rot)
    Optical Power 5mW
    Laser Class 2M
    Divergence 0.3mrad

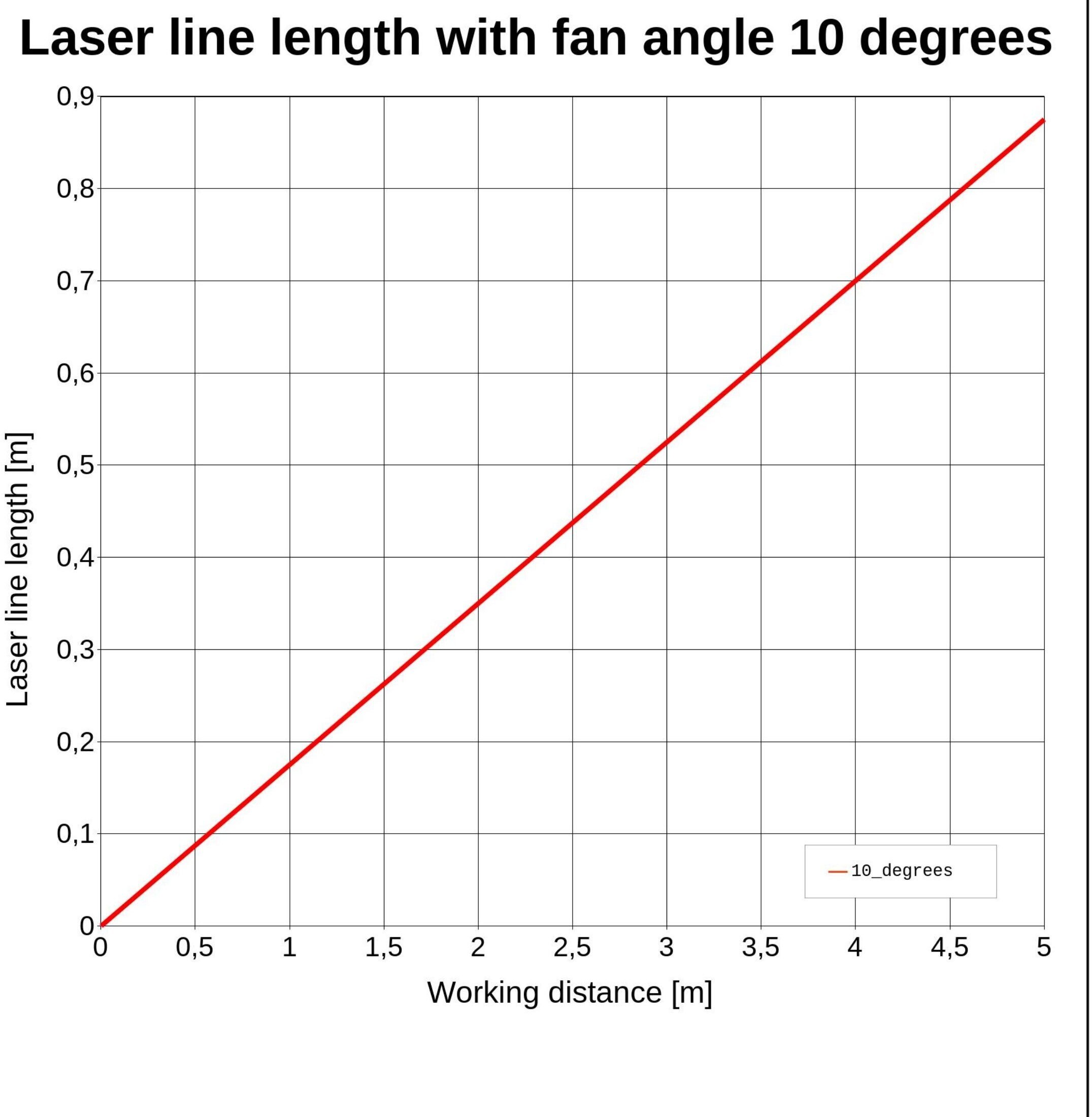

    Fan Angle 10°
    Line Thickness <1mm@1m
    Operating Distance 1m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Axial Divergence ±1°
    Size Ø22mm 120mm
    Material aluminium
    Focus fixed (1000mm)
    Output Aperture 3.5mm
    Potential of Housing VDD(+)
    Lifetime >10000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 10 - 30, typ 20mA
    Battery CR123A Lithium Battery, 3V 1400mAh
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 94.6g
  • Illustration and technical drawing
  • LB650-5-3(22x120)10DEG-AP-F1000 - Produktbild 1
    LB650-5-3(22x120)10DEG-AP-F1000 - Hauptbild
    LB650-5-3(22x120)10DEG-AP-F1000 - Produktbild 2
    LB650-5-3(22x120)10DEG-AP-F1000 - Rendergrafik
    LB650-5-3(22x120)10DEG-AP-F1000 - Zeichnung
    LB650-5-3(22x120)10DEG-AP-F1000 - Zeichnung Front
    LB650-5-3(22x120)10DEG-AP-F1000 - Zeichnung isometrisch
    Warnlabel 2M
  • Matching accessories
  • MULTI-MOUNT-22(45x75)MULTI-MOUNT-22(45x75)
    Order no.: 70115215
    Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm
    61.26 EUR
  • Downloads
  • Contact
