LD520-10-24(20x80)-F800-CON

Order number: 70139433

Product description:
isolated Line lasermodule, green, 90°, 520nm, 10mW, 24V DC, 20x80mm, class 1, with laserlabel 3mm from front edge
Weight: 68g

• Operating Voltage24 V DC
• Isolated housing
• Laser Class 1
• compact size
LD520-10-24(20x80)-F800-CON - Hauptbild
LD520-10-24(20x80)-F800-CON - Rendergrafik

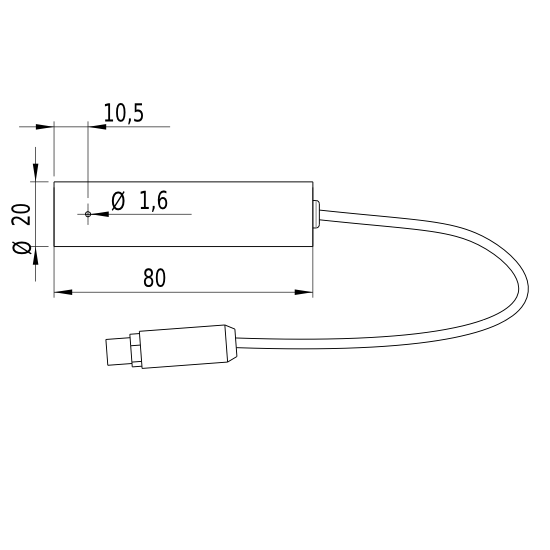

LD520-10-24(20x80)-F800-CON - Zeichnung

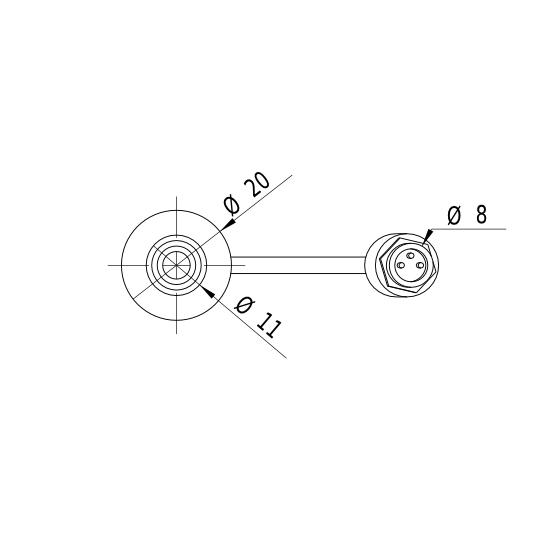

LD520-10-24(20x80)-F800-CON - Zeichnung Front

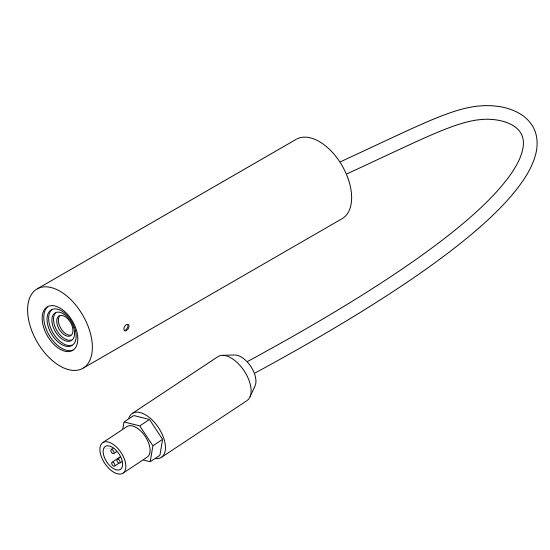

LD520-10-24(20x80)-F800-CON - Zeichnung isometrisch
Warnlabel 1
268,82
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength520nm
    (grün)
    Optical Power10mW
    Laser Class1
    Divergence0.5mrad
    Fan Angle90°
    Line Thickness<1mm@0.8m
    Operating Distance0.8m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Size
    Materialaluminium
    Cable length100mm
    Wire type22AWG, black, 3,6mm
    Focusfixed (800mm)
    Output Aperture6mm
    Potential of Housinginsulated
    Lifetime>10000h
    Operating Voltage20 - 26.4, typ 24V DC
    Operating Current50 - 150, typ 55mA
    ConnectorCON_7000-08331-0000000
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight68g
  • Illustration and technical drawing
  • LD520-10-24(20x80)-F800-CON - Hauptbild
    LD520-10-24(20x80)-F800-CON - Rendergrafik
    LD520-10-24(20x80)-F800-CON - Zeichnung
    LD520-10-24(20x80)-F800-CON - Zeichnung Front
    LD520-10-24(20x80)-F800-CON - Zeichnung isometrisch
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Stecker Pin Ground: 3
    Positive:Cable color Positive: whitewhite24V DC
    Stecker Pin Positive: 1
  • Matching accessories
  • LFNT-24-CLFNT-24-C
    Order no.: 70115055
    Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    31.85 EUR
