DI650-0.4-3(5x12)-C80

Order number: 70140231

Product description:
micro dot lasermodule, red, 650nm, 0.4mW, class 1, 5x12mm, 3V DC, cable length 80 mm

Specification

Warranty 1Jahre
Beam Shape Dot
Wavelength 650nm
(rot)
Optical Power 0.4mW
Laser Class 1
Divergence 1.5mrad
Beam Diameter 3mm
Size of Laserdot 3..4mm@5m
Operating Distance 10m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø5mm 12mm
Material Bronze
Cable length 80mm
Wire type 26AWG, 0,14mm²
Focus collimated
Potential of Housing GND(-)
Lifetime >5000h
Operating Voltage 3V DC
Operating Current 7 - 35, typ 22mA
Housing Color black
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 2g
customs tarif number 90132000000
Stripping of wire 5mm

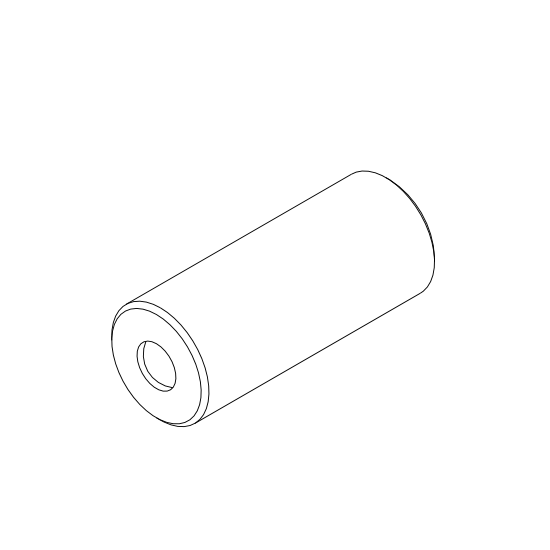

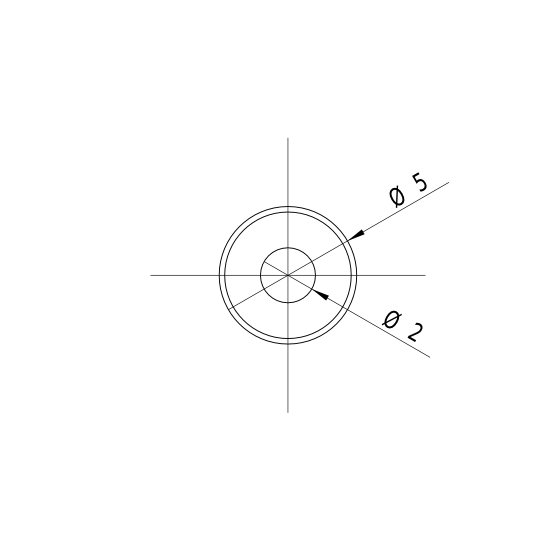

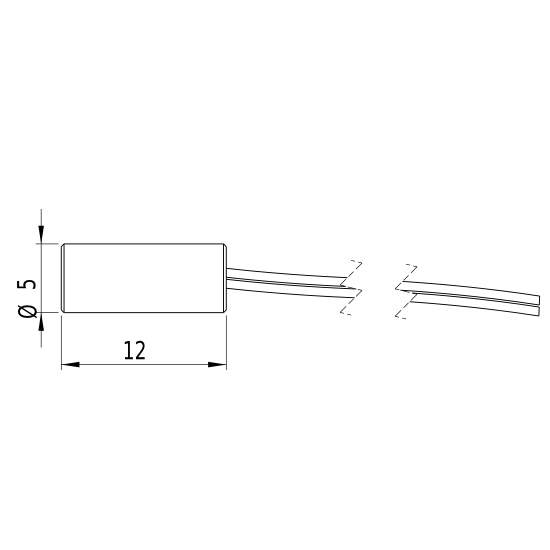

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blueblueGND
Positive:Cable color Positive: redred3V DC
