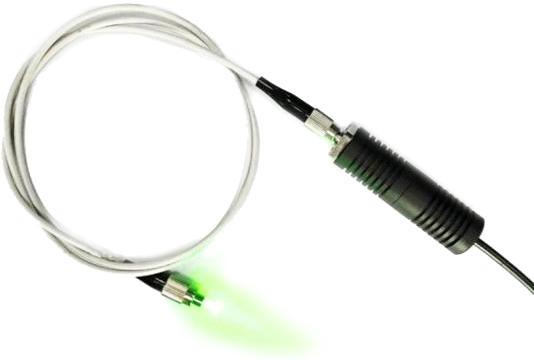

F520-10-5(20x75.5)

Order number: 70141474

Product description:
Fiber lasermodule, green, 520nm, 10mW, 3-5V DC, 20x75.5mm, class 3R, FC connector, Fiber core diameter 200 µm, incl. collimating lens

1.075,55
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Fiber
Wavelength	520nm (grün)
Optical Power	10mW
Laser Class	3R
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	200mm
Wire type	26AWG, UL, isolated
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	3 - 5, typ 5V DC
Operating Current	120 - 140, typ 140mA
Housing Color	black
Operating Temperature	-20°C - 60°C
Storage Temperature	-40°C - 85°C
Weight	7g
Fiber connector	FC
Fiber type	Multimode
Fiber core diameter	Ø200µm
Fiber included	Ja

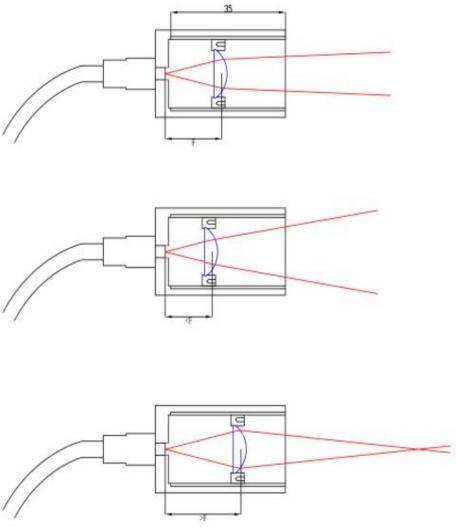

Illustration and technical drawing
