MLH405-5-10(10x50)30-PWL-F40-POT

Order number: 70141979

Product description:
line laser, blue, 30°, 405nm, 5mW, 10V DC, 10x50mm, class 2M, uniform line distribution, Powell lens, Focus 40mm, Output power control 0-5V, TTL modulation

• Powell Lens
• Uniform line distribution
• Image processing

Specification

Beam Shape Line
Wavelength 405nm
(blue)
Optical Power 5mW
Laser Class 2M
Divergence 1mrad
Fan Angle 30°
Line Thickness <0.04mm@40mm
Operating Distance 0.04m
Optics Powell Lens
Laser technology Single Mode Diode
Opt. Power Stability at const. Temp. <5%
Axial Divergence ±1°
Size Ø10mm 50mm
Material Aluminium
Cable length 100mm
Wire type 26AWG, UL, isolated
Focus fixed
Output Aperture 4mm
Potential of Housing insulated
Max. Mod. Frequency 50kHz
Lifetime >10000h
Operating Voltage 9.5 - 10.5, typ 10V DC
Operating Current 30 - 80, typ 50mA
Housing Color black
Operating Temperature -20°C - 70°C
Storage Temperature -40°C - 85°C
Weight 20g
customs tarif number 90132000000
Stripping of wire 5mm

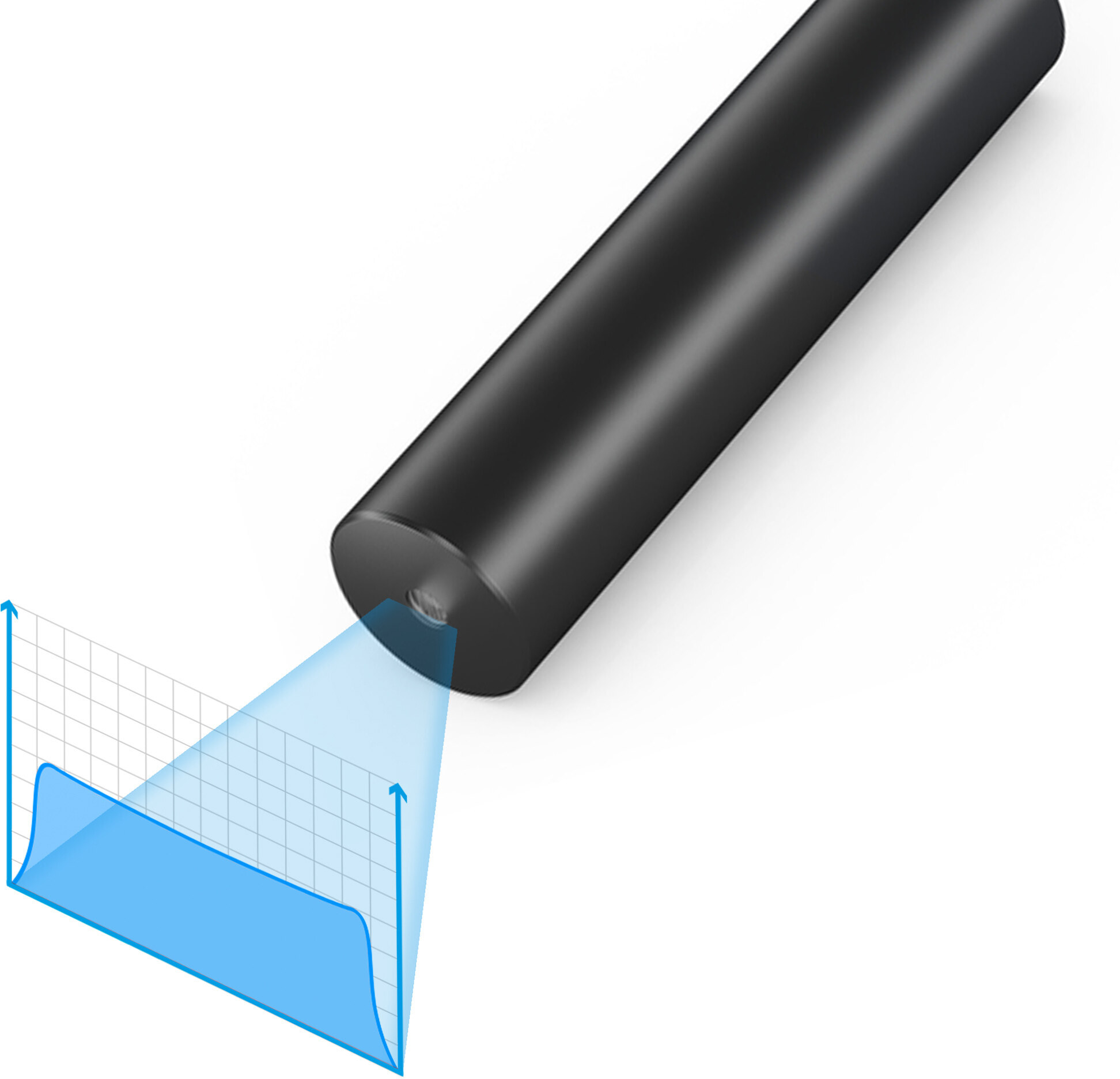

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blackblackGND
Positive:Cable color Positive: redred10V DC
Modulation:Cable color Modulate: greengreen50kHz
779.44 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%
