LH650-1-5(9x21)110-F1000

Order number: 70142273

Product description:
Line lasermodule, red, 110°, 650nm, 1mW, 3-5V DC, 9x21mm, class 1

• Operating Voltage 3-5V DC
• Laser Class 1
• low cost
• Fan angle 110 °
• compact size
LH650-1-5(9x21)110-F1000 - Produktbild 1
LH650-1-5(9x21)110-F1000 - Hauptbild
LH650-1-5(9x21)110-F1000 - Rendergrafik
LH650-1-5(9x21)110-F1000 - Zeichnung
LH650-1-5(9x21)110-F1000 - Zeichnung Front
LH650-1-5(9x21)110-F1000 - Zeichnung isometrisch
Warnlabel 1
34,37
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 650nm
    (rot)
    Optical Power 1mW
    Laser Class 1
    Divergence 1mrad

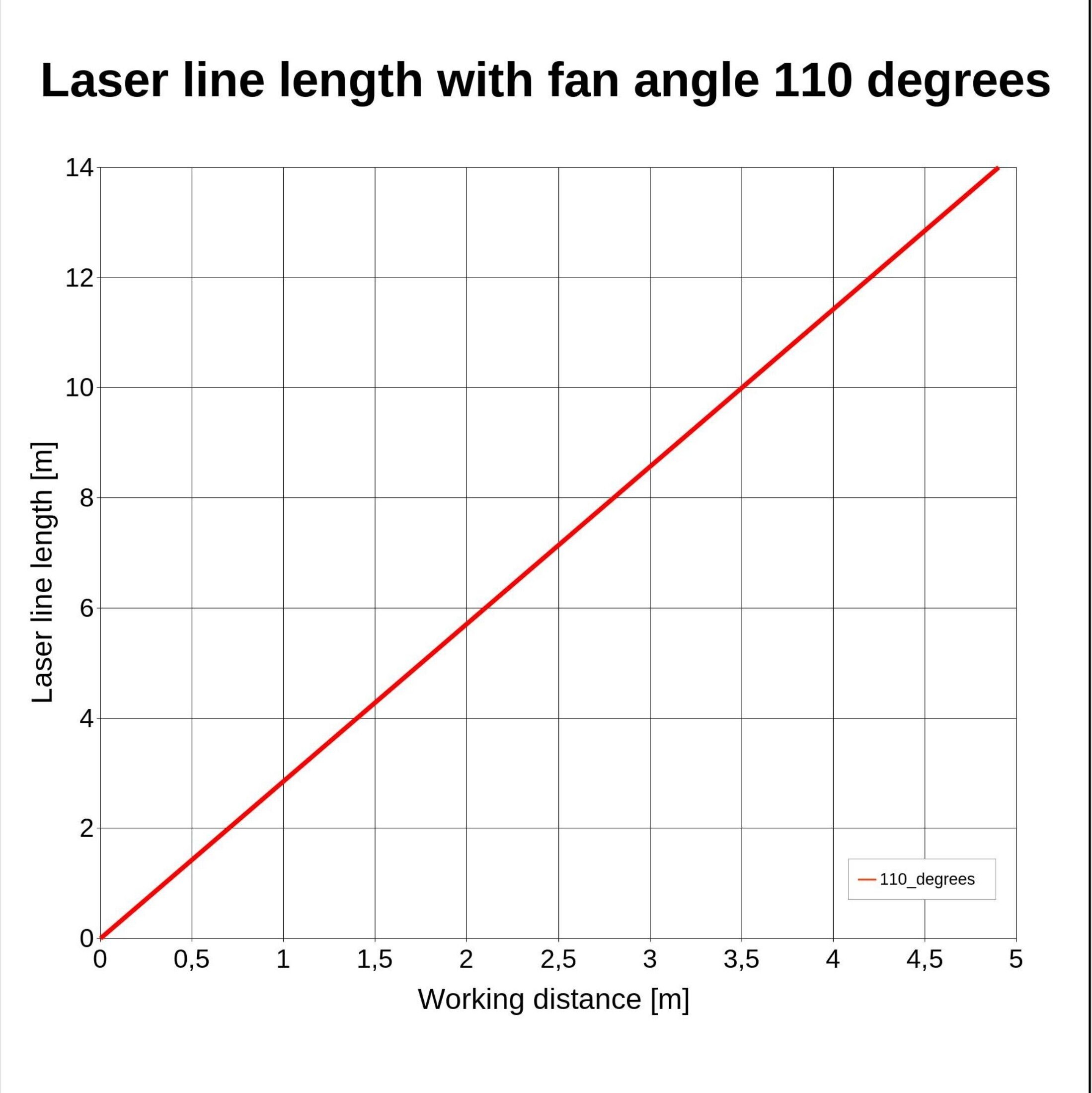

    Fan Angle 110°
    Line Thickness <1mm@1m
    Operating Distance 1m
    Optics acryl lense
    Laser technology Single Mode Diode
    Size Ø9mm 21mm
    Material Bronze
    Cable length 150mm
    Wire type Belden, Typ 1007, 26AWG
    Focus fixed (1000mm)
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >10000h
    Operating Voltage 3 - 5V DC
    Operating Current 5 - 60, typ 20mA
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 7.3g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire 5mm
  • Illustration and technical drawing
  • LH650-1-5(9x21)110-F1000 - Produktbild 1
    LH650-1-5(9x21)110-F1000 - Hauptbild
    LH650-1-5(9x21)110-F1000 - Rendergrafik
    LH650-1-5(9x21)110-F1000 - Zeichnung
    LH650-1-5(9x21)110-F1000 - Zeichnung Front
    LH650-1-5(9x21)110-F1000 - Zeichnung isometrisch
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redredVCC
  • Matching accessories
  • MULTI-MOUNT-09(45x75)MULTI-MOUNT-09(45x75)
    Order no.: 70114065
    Mount for Lasermodul 9mm, Diameter 45mm, Height 75mm
    61.26 EUR
