MULTI-MOUNT-14(45x75)-MAGNETIC

Order number: 70144178

Product description:
Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm, Magnetic Mount

• anodized aluminium
• very robust
• for industrial applications
• magnetic

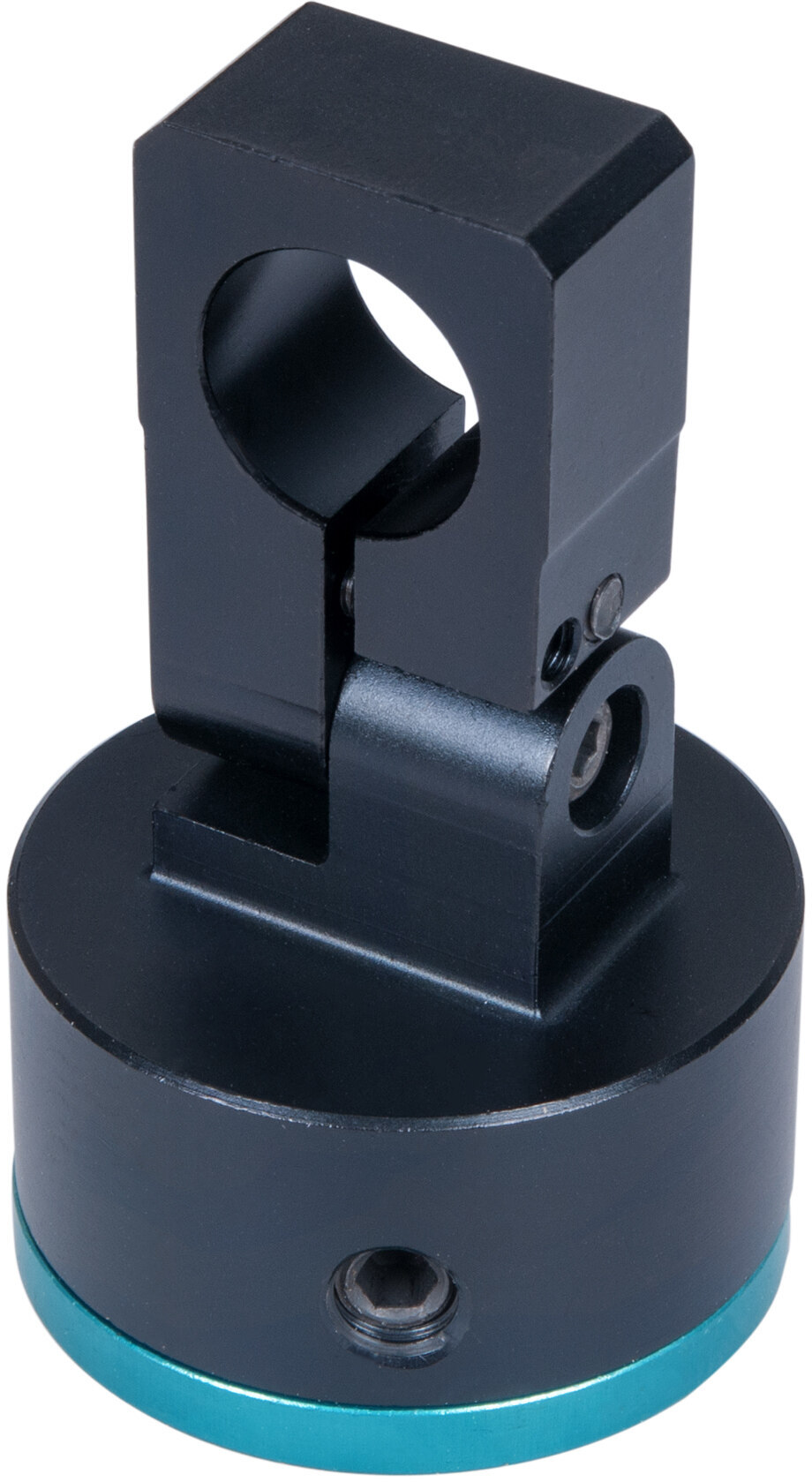

MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 1
MULTI-MOUNT-14(45x75)-MAGNETIC - Hauptbild
MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 2
MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 3
MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 4
MULTI-MOUNT-14(45x75)-MAGNETIC - Rendergrafik
72,18
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Size
    Materialaluminium
    Operating Voltagemax 0V DC
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-50°C - 70°C
    Weight141g
    Total Height (h1)75mm
    Height to Laseraxis (h2)60mm
    Height of Base (h3)25mm
    Mount Diameter (d1)Ø14mm
    Diameter of Base (d2)Ø45mm
    Width of Mount (b)26mm
    Height of Mount (g)50mm
    Height of Mount Head (k)50mm
    Depth of Mount (t)15mm
    Angle of Rotation Alpha (α)360°
    Angle of Rotation Beta (β)±90°
  • Illustration and technical drawing
  • MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 1
    MULTI-MOUNT-14(45x75)-MAGNETIC - Hauptbild
    MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 2
    MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 3
    MULTI-MOUNT-14(45x75)-MAGNETIC - Produktbild 4
    MULTI-MOUNT-14(45x75)-MAGNETIC - Rendergrafik
