LC850-5-3-F(14X45)

Order number: 70153811

Product description:
focusable isolated Line lasermodule, infrared, 90°, 850nm, 5mW, 3V DC, 14x55mm, class 3R

• Operating Voltage 3 V DC
• Laser Class 3R
• adjustable focus
• low power consumption
• compact size
LC850-5-3-F(14X45) - Hauptbild
LC850-5-3-F(14X45) - Rendergrafik

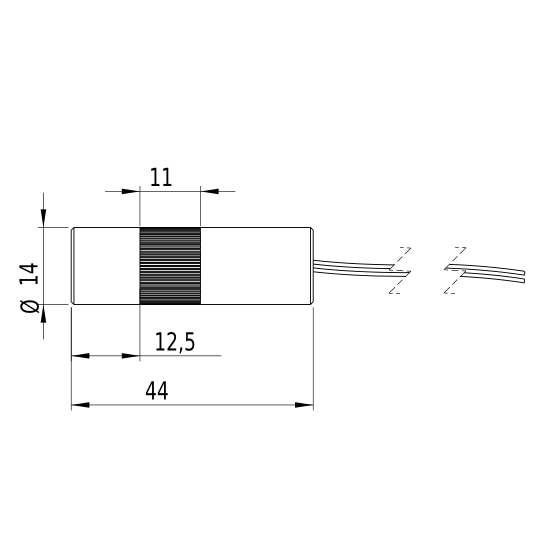

LC850-5-3-F(14X45) - Zeichnung

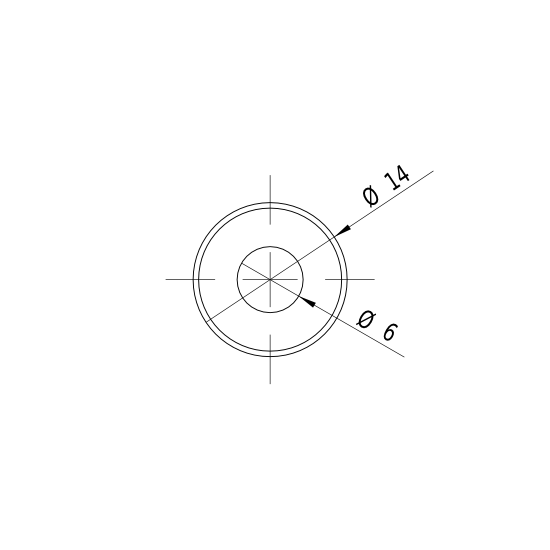

LC850-5-3-F(14X45) - Zeichnung Front

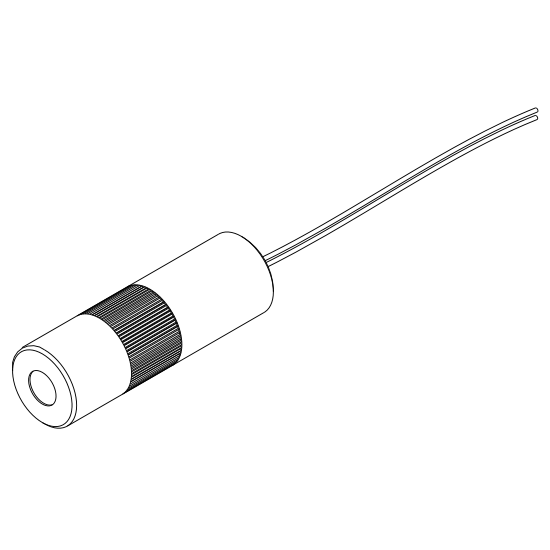

LC850-5-3-F(14X45) - Zeichnung isometrisch
Warnlabel 3R
176,39
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 850nm
    (infrarot)
    Optical Power 5mW
    Laser Class 3R
    Divergence 0.4mrad
    Fan Angle 90°
    Line Thickness adjustable
    Operating Distance 5m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø14mm 45mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus adjustable
    Output Aperture 4mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 15 - 60, typ 30mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 20g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire 5mm
  • Illustration and technical drawing
  • LC850-5-3-F(14X45) - Hauptbild
    LC850-5-3-F(14X45) - Rendergrafik
    LC850-5-3-F(14X45) - Zeichnung
    LC850-5-3-F(14X45) - Zeichnung Front
    LC850-5-3-F(14X45) - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
