MLE405-50-5(16X50)60-PWL-F390-IC
Order number: 70155259
Product description:

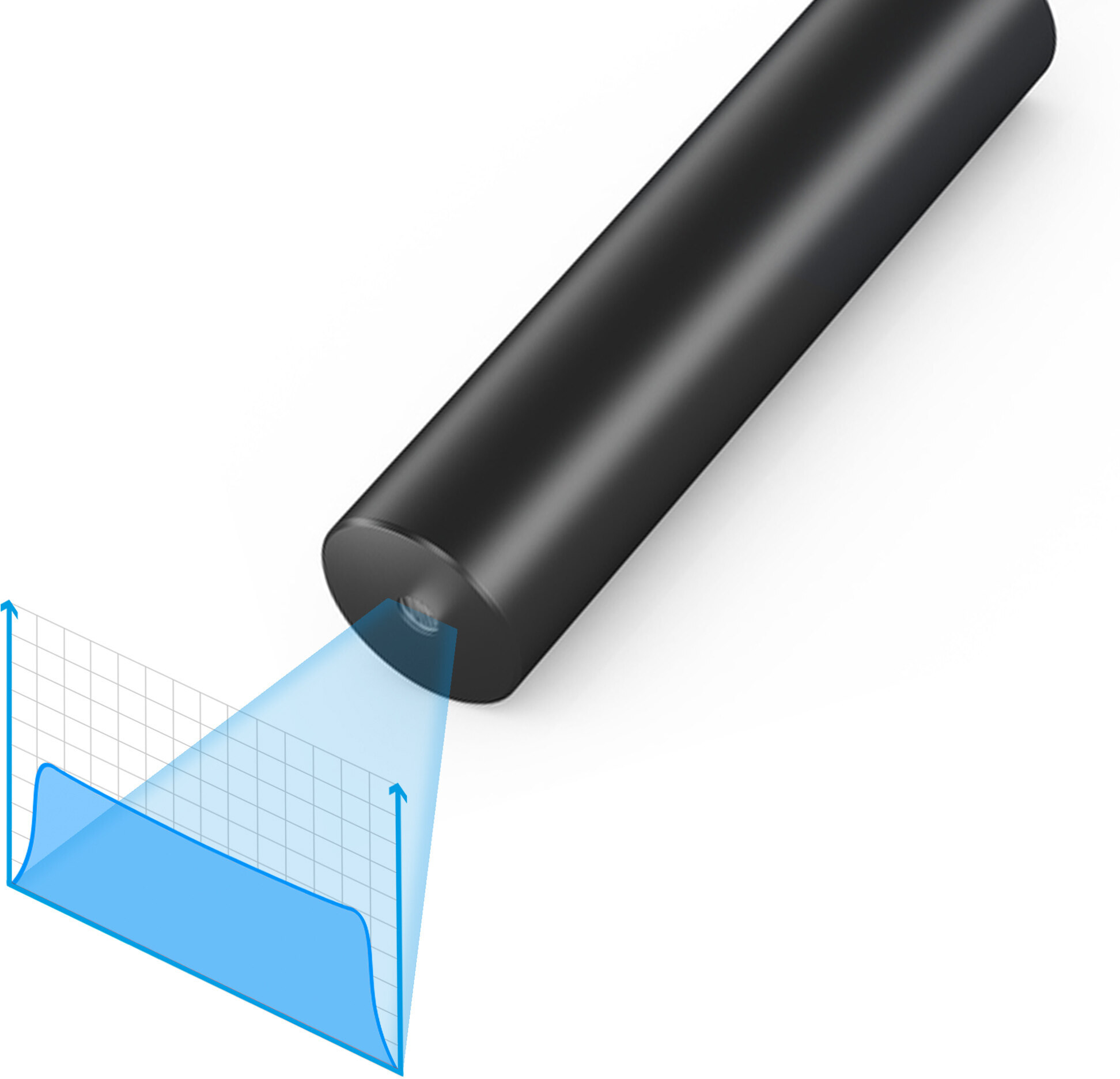

line laser, red, 60°, 660nm, 50mW, 5V DC, 16x50mm, class 3R, uniform line distribution, Powell lens, Focus 390mm, Output power control: 0-5V, TTL modulation
• Powell Lens
• Uniform line distribution
• Image processing
Product description:
line laser, red, 60°, 660nm, 50mW, 5V DC, 16x50mm, class 3R, uniform line distribution, Powell lens, Focus 390mm, Output power control: 0-5V, TTL modulation
• Powell Lens
• Uniform line distribution
• Image processing
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Line Wavelength 405nm
(blau)Optical Power 50mW Laser Class 3R Divergence 0.6mrad Fan Angle 60° Line Thickness <0.25mm@0.39m Operating Distance 0.39m Optics Powell Lens Opt. Power Stability at const. Temp. <5% Axial Divergence ±1° Size Ø16mm 50mm Material aluminium Cable length 175mm Wire type 26AWG, UL, isolated Focus fixed (390mm) Output Aperture 4.5mm Potential of Housing insulated Lifetime >6000h Operating Voltage 2.5 - 5, typ 5V DC Operating Current 80 - 250, typ 200mA Housing Color black Operating Temperature -10°C - 80°C Storage Temperature -40°C - 85°C Weight 20g Stripping of wire 10mm - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
red 5V DC Modulation:
green - Matching accessories
MULTI-MOUNT-16(45x75)
Order no.: 70112504
Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
