DB650-1-3-FA(12X42)-AP

Order number: 70159677

Product description:

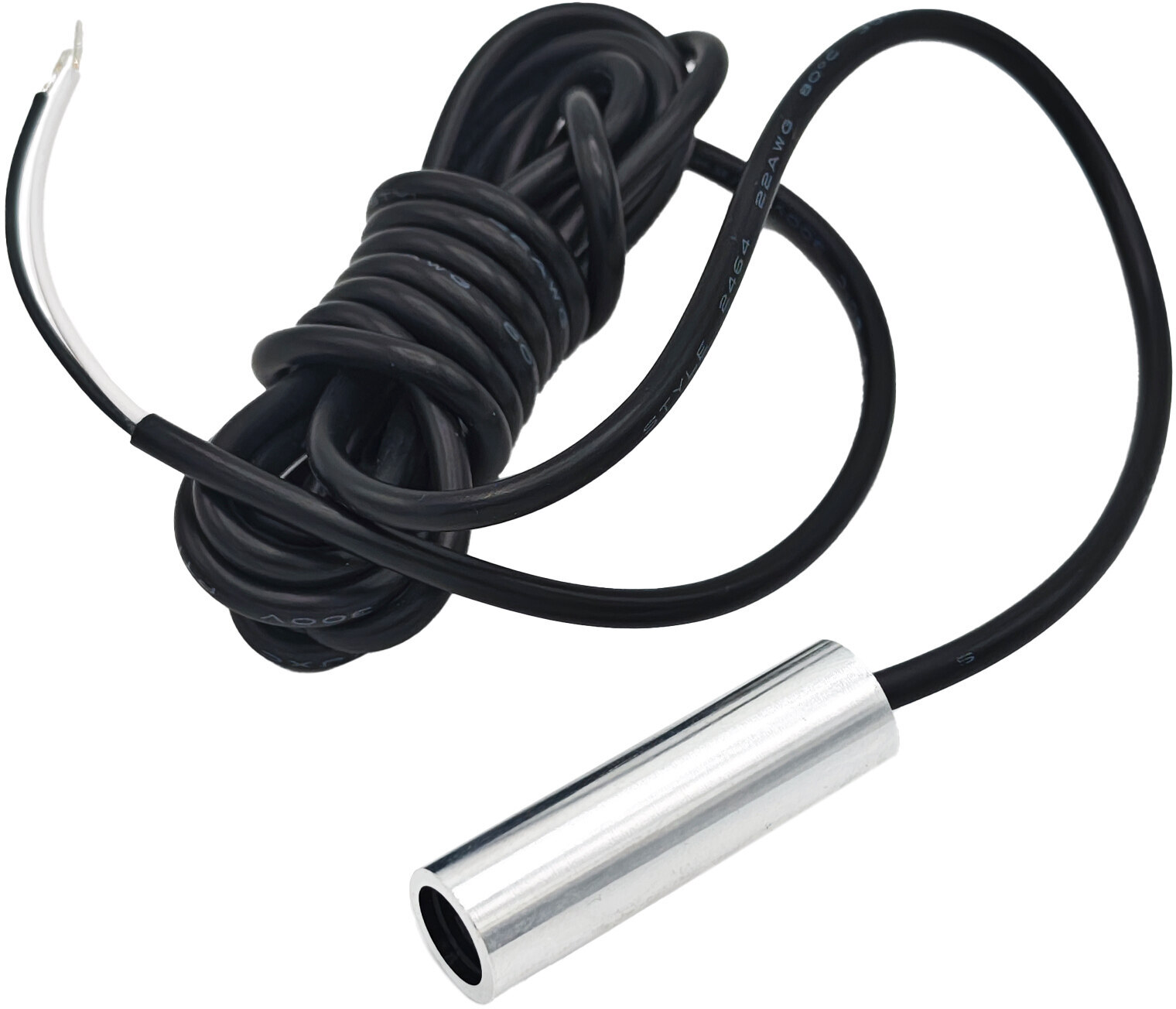

isolated Dot lasermodule, red, 650nm, 1mW, 3V DC, 12x42mm, class 2, axial parallel

62,94
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Dot
Wavelength	650nm (rot)
Optical Power	1mW
Laser Class	2
Divergence	0.3mrad
Beam Diameter	5mm
Size of Laserdot	3..4mm@10m
Operating Distance	50m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Axial Divergence	±0.3°
Size	Ø12mm 42mm
Material	aluminium
Cable length	1850mm
Wire type	Belden, Typ 1007, 26AWG
Focus	fixed (10.0m)
Output Aperture	5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	15 - 35, typ 23mA
Housing Color	silver
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	35g
Power Supply	Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: white 3V DC
Matching accessories
Mount-12(20x57)
Order no.: 70113686
Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
54.54 EUR
