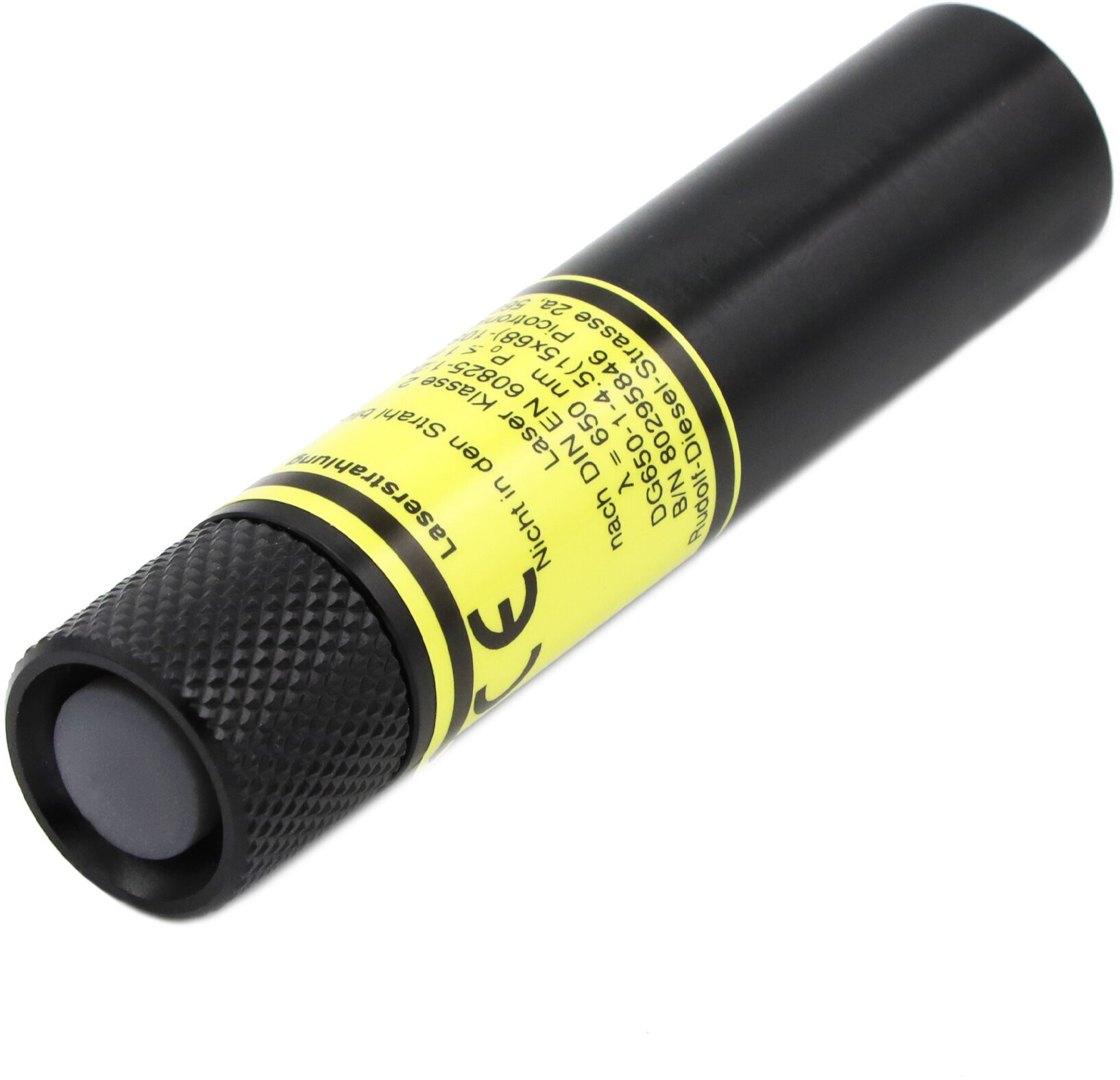

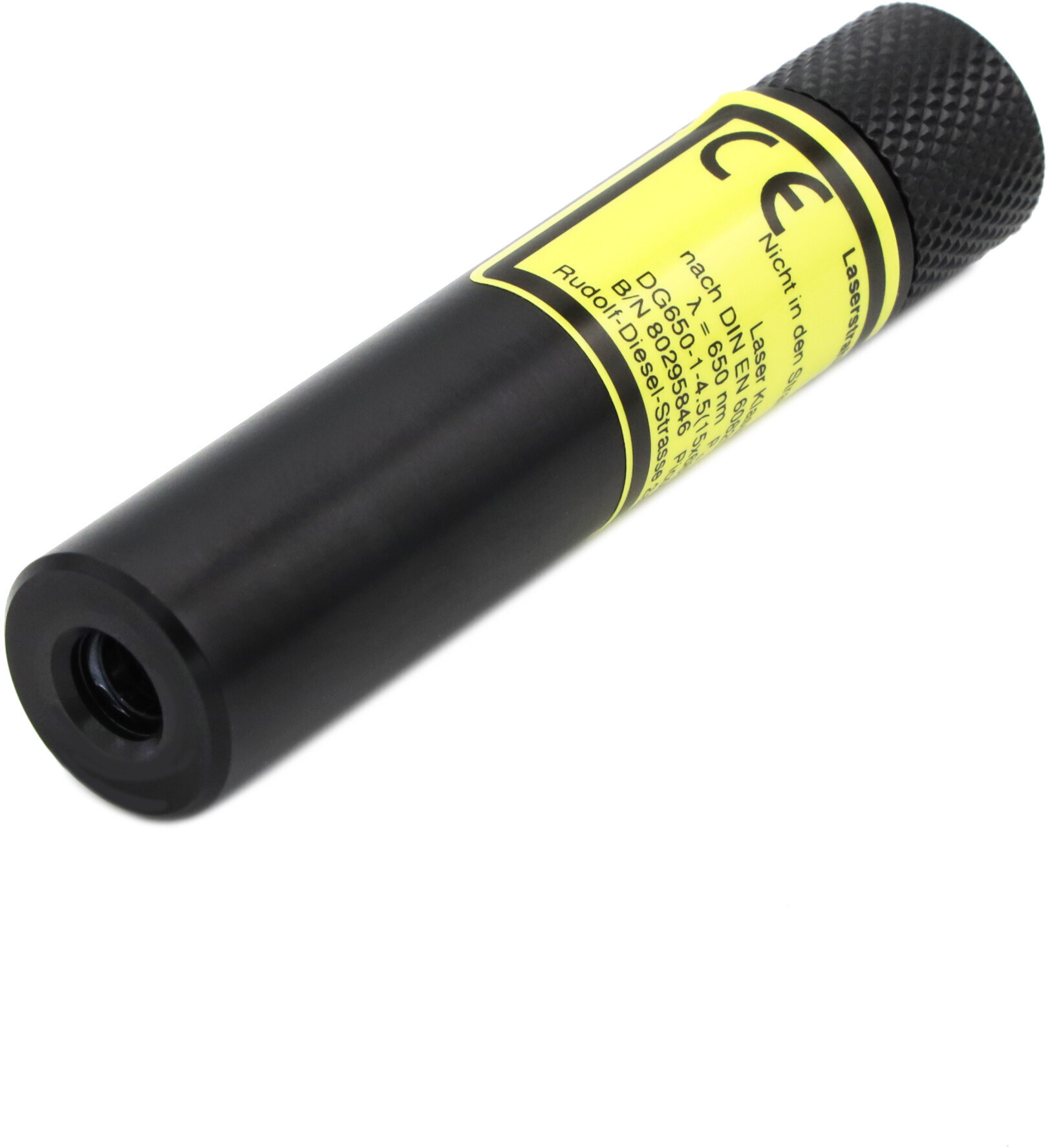

DG650-1-4.5(15X68)-30SEK

Order number: 70160819

Product description:
Dot Pointer 650nm, 1mW, 3-4,5V DC, 15x68mm, class 2, with Pushbutton (no restfunction), Timerfunction 30s operation with stopp

• Laser Class 2
• with battery
• with Pushbutton (no restfunction)
• Timerfunction 30s operation

73,03
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	650nm (rot)
Optical Power	1mW
Laser Class	2
Divergence	1mrad
Size of Laserdot	<4mm@10m
Operating Distance	10m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Focus	fixed (10.0m)
Output Aperture	6mm
Potential of Housing	VDD(+)
Lifetime	>3000h
Operating Voltage	3 - 4.5V DC
Operating Current	20mA
Battery	LR44/AG13 alkaline battery, 1.5V
Battery count	2
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	25g
Delivery Content	Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten.

Illustration and technical drawing
Matching accessories
LABEL-DIN-CLASS2-DE
Order no.: 70110838
Safety Label german DIN EN 60825, Class 2, 38x23mm, yellow, PET
0.60 EUR
Downloads
Data sheet Fax order form
