LE650-5-3-F-S(22x100)90

Order number: 70109634

Product description:
focusable Line lasermodule, red, 90°, 650nm, 5mW, 3V DC, 22x100mm, class 1

• Operating Voltage 3 V DC
• Laser Class 1
• adjustable focus
• low power consumption
• with battery

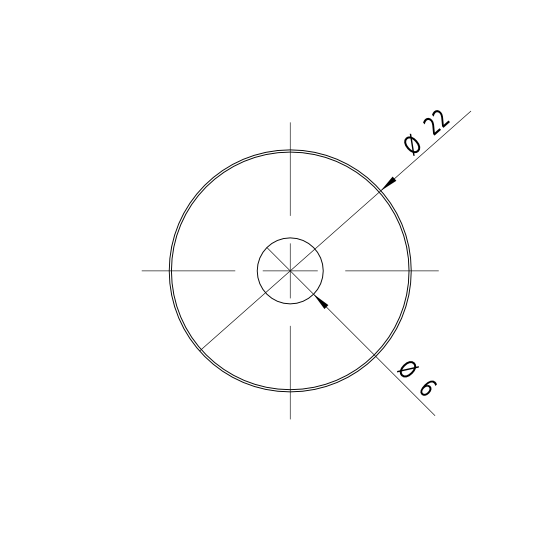

LE650-5-3-F-S(22x100)90 - Zeichnung Front

LE650-5-3-F-S(22x100)90 - Zeichnung isometrisch

122,61
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	5mW
Laser Class	1
Divergence	0.6mrad
Fan Angle	90°
Line Thickness	adjustable
Operating Distance	3m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Focus	adjustable
Output Aperture	4.5mm
Potential of Housing	VDD(+)
Lifetime	>10000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	15 - 45, typ 30mA
Battery	CR123A Lithium Battery, 3V 1400mAh
Battery count	1
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	77.7g
Delivery Content	Im Lieferumfang ist eine Batterie vom Typ CR123A enthalten.

Illustration and technical drawing
Matching accessories
LABEL-DIN-CLASS1-DE
Order no.: 70110821
Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET
0.60 EUR
