DB650-3-3(16x32)

Order number: 70101188

Product description:
focusable isolated Dot lasermodule, red, 650nm, 3mW, 3V DC, 16x32mm, class 3R

• Laser Class 3R
• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• adjustable focus
• compact size
DB650-3-3(16x32) - Hauptbild
DB650-3-3(16x32) - Rendergrafik
DB650-3-3(16x32) - Zeichnung

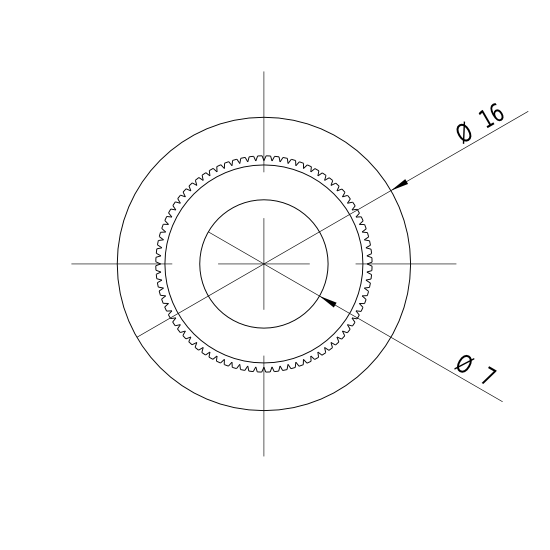

DB650-3-3(16x32) - Zeichnung Front

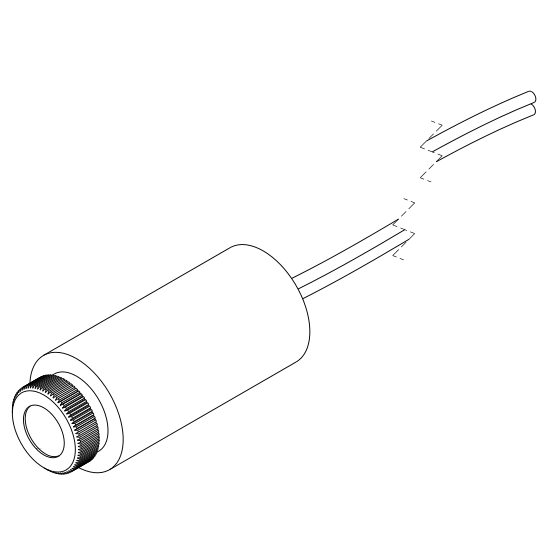

DB650-3-3(16x32) - Zeichnung isometrisch
Warnlabel 3R
57,06
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength650nm
    (rot)
    Optical Power3mW
    Laser Class3R
    Divergence0.3mrad
    Size of Laserdotadjustable
    Operating Distance50m
    OpticsGlass lens AR coated
    Laser technologydiode
    SizeØ16mm 32mm
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture8mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current15 - 40, typ 25mA
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight21g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Illustration and technical drawing
  • DB650-3-3(16x32) - Hauptbild
    DB650-3-3(16x32) - Rendergrafik
    DB650-3-3(16x32) - Zeichnung
    DB650-3-3(16x32) - Zeichnung Front
    DB650-3-3(16x32) - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • MULTI-MOUNT-16(45x75)MULTI-MOUNT-16(45x75)
    Order no.: 70112504
    Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
    66.30 EUR
