DC650-4.5-6(10x27)

Order number: 70102772

Product description:
focusable isolated Dot lasermodule, red, 650nm, 4.5mW, 6V DC, 10x27mm, class 3R

• Operating Voltage 6 V DC
• Laser Class 3R
• adjustable focus
• compact size
• glas lenses anti reflex coated

41,93
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	650nm (rot)
Optical Power	4.5mW
Laser Class	3R
Divergence	0.4mrad
Size of Laserdot	adjustable
Operating Distance	40m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	Bronze
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	adjustable
Output Aperture	3.5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	5.4 - 6.6, typ 6V DC
Operating Current	15 - 45, typ 30mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	3.5g
Power Supply	Power Supply 6V DC with 2.1x.5.5mm Connector
Stripping of wire	5mm

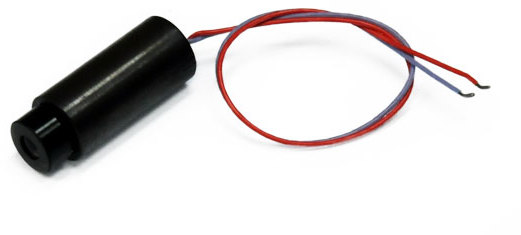

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 6V DC
